77" Diagonal Class (76.7" viewable) - S90D Series OLED TV - Smart TV - Tizen OS - 4K UHD (2160p) 3840 x 2160 - HDR - graphite black
| Main Specifications | |
|---|---|
| Product Description | Samsung QN77S90DAF S90D Series - 77" Class (76.7" viewable) OLED TV - 4K |
| Product Type | OLED TV - Smart TV |
| Diagonal Class | 77" |
| Diagonal Size | 76.7" |
| Color | Graphite black |
| Platform | Tizen OS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| HDR Format | HDR10+ |
| HDR Technology | OLED HDR +, Hybrid Log-Gamma (HLG), HDR10+ Adaptive, HDR10+ Gaming |
| Frame Rate & Enhancement Technology | Motion Xcelerator, 144 Hz Refresh Rate, Variable Refresh Rate (VRR), 120 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LCD Backlight Technology | Self-illuminating pixels |
| Image Aspect Ratio | 16:9 |
| TV Tuner | 1x analog, 1x digital |
| Digital TV Tuner | ATSC/ClearQAM |
| Internet Streaming Services | Samsung TV PLUS, SmartThings |
| Picture Enhancements | Perceptional Color Mapping, Ultra Viewing Angle, adaptive picture, contrast enhancer, Real Depth Enhancer, 4K AI Upscaling, Dynamic Black EQ |
| Speaker System | 2.1 channel |
| Sound Effects | Dolby Digital MS12 |
| Platform | SmartThings |
| Intelligent Assistant | Bixby, Alexa, Google Assistant (not available for some languages and countries) |
| USB | 2 ports |
| Included Accessories | Samsung TM2360E remote control |
| Voltage | AC 110-120 V (50/60 Hz) |
| Power Consumption Operational | 135 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Energy Consumption per Year | 348 kWh |
| Dimensions (WxDxH) - without stand | 67.7 in x 1.8 in x 38.6 in |
| Weight | 76.72 lbs |
| General | |
| Product Type | OLED TV - Smart TV |
| Power Consumption (Max) | 475 Watt |
| Power Consumption Operational | 135 Watt |
| Energy Consumption per Year | 348 kWh |
| Diagonal Class | 77" |
| Diagonal Size | 76.7" |
| Series | S90D Series |
| Platform | Tizen OS |
| HDR Capable | Yes |
| HDR Format | HDR10+ |
| HDR Technology | OLED HDR +, Hybrid Log-Gamma (HLG), HDR10+ Adaptive, HDR10+ Gaming |
| Video Processor | NQ4 AI Gen2 |
| TV Tuner | 1x analog, 1x digital |
| TV Tuner Presence | Yes |
| Sensors | Eco Sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Modes | Film Mode, Eye Comfort Mode, Filmmaker Mode, power saving mode, Ambient Mode+, Auto Game Mode, Auto Low Latency Mode (ALLM), Game Motion Plus, HGIG Mode, AI Energy Mode |
| Picture Enhancements | Perceptional Color Mapping, Ultra Viewing Angle, adaptive picture, contrast enhancer, Real Depth Enhancer, 4K AI Upscaling, Dynamic Black EQ |
| Design | 4 Bezel-less Design, LaserSlim Design, Top Slim |
| Dimensions | Without stand |
| Width | 67.7 in |
| Depth | 1.8 in |
| Height | 38.6 in |
| Weight | 76.72 lbs |
| Enclosure Color | Graphite black |
| Miscellaneous | |
| Compliant Standards | HGiG, Pantone Validated, CEC |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 110-120 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Estimated Annual Operating Cost | 56 USD |
| Auto On/Off | Yes |
| Display | |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | Motion Xcelerator, 144 Hz Refresh Rate, Variable Refresh Rate (VRR), 120 Hz Refresh Rate |
| LCD Backlight Technology | Self-illuminating pixels |
| Coating | Anti-reflection |
| Display Menu Language | English, French, Spanish |
| V-Chip Control | Yes |
| Additional Features | Expert calibration, Smart Calibration, One Connect Box, MBR Support, SlimFit Cam support, Samsung Health, Wireless TV On, Workspace, Chat Together, ConnecTime, Apple AirPlay support, Samsung Daily+, Samsung Now+, Super Ultra Wide Game View, Mini Map Zoom, FreeSync Premium Pro, Gaming Hub, Hue Sync, Game bar, Accessibility Voice guide, Accessibility Low Vision Support, hearing impaired support, Accessibility Motor Impaired Support, Samsung Workspace secured by Knox |
| Connections | |

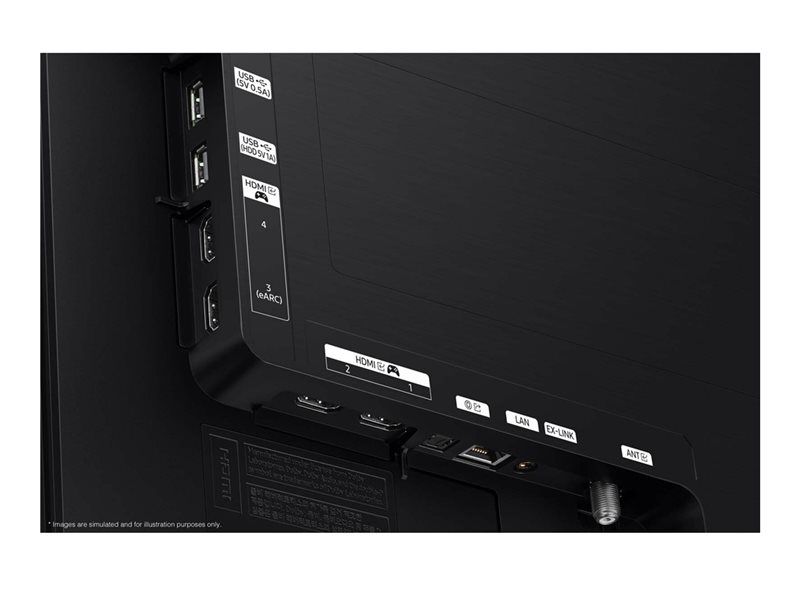

| Connector Type | 4 x HDMI ¦ 2 x USB ¦ LAN ¦ Digital audio output (optical) ¦ RS-232C ¦ Audio line-out |
| Video Features | |
| Electronic Program Guide | Digital EPG |
| Remote Control | |
| Type | Remote control |
| Remote Control Model | Samsung TM2360E |
| Features | SolarCell remote |
| Audio System | |
| Digital Audio Format | Dolby Atmos, Dolby Audio |
| Surround Mode | Yes |
| Sound Effects | Dolby Digital MS12 |
| Speaker System | 2.1 channel |
| Output Power / Total | 40 Watt |
| Additional Features | Bluetooth audio streaming, Q-Symphony, Object Tracking Sound Lite, Dual Audio support, Adaptive Sound, Active Voice Amplifier Pro, 360 Audio, Enhanced Audio Return Channel (eARC), auto power save, Far-Field Voice Interaction, Buds Auto Switch |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 74.4 in |
| Depth (Shipping) | 7.1 in |
| Height (Shipping) | 45.3 in |
| Weight (Shipping) | 103.18 lbs |
| Network & Internet Multimedia | |
| Functionality | Internet video playback, WEB browsing |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11ac |
| Bluetooth Version | Bluetooth 5.2 |
| Connect & Share | IP Control, ConnectShare, Media Home, Screen Mirroring, Sound Mirroring, Tap View, Multi View |
| Internet Streaming Services | Samsung TV PLUS, SmartThings |
| Supported Consumer Electronics Control (CEC) | Anynet Plus |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Panel without stand - 67.7 in x 1.8 in x 38.6 in x 76.7 lbs ¦ Panel with stand - 67.7 in x 14.1 in x 41.7 in x 80.7 lbs ¦ Stand - 14.4 in x 14.1 in x 12.8 in x 4 lbs |
| Digital TV Tuner | |
| Digital TV Tuner | ATSC/ClearQAM |
| HDTV Tuner | Yes |
| Stands & Mounts | |
| Stand | Included |
| Stand Design | Tabletop |
| Stand Color | Space titan |
| Stand Features | Simple Plus Blade |
| Flat Panel Mount Interface | 400 x 300 |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | SmartThings |
| Communications Technology | Zigbee, Thread |
| Intelligent Assistant | Bixby, Alexa, Google Assistant (not available for some languages and countries) |
