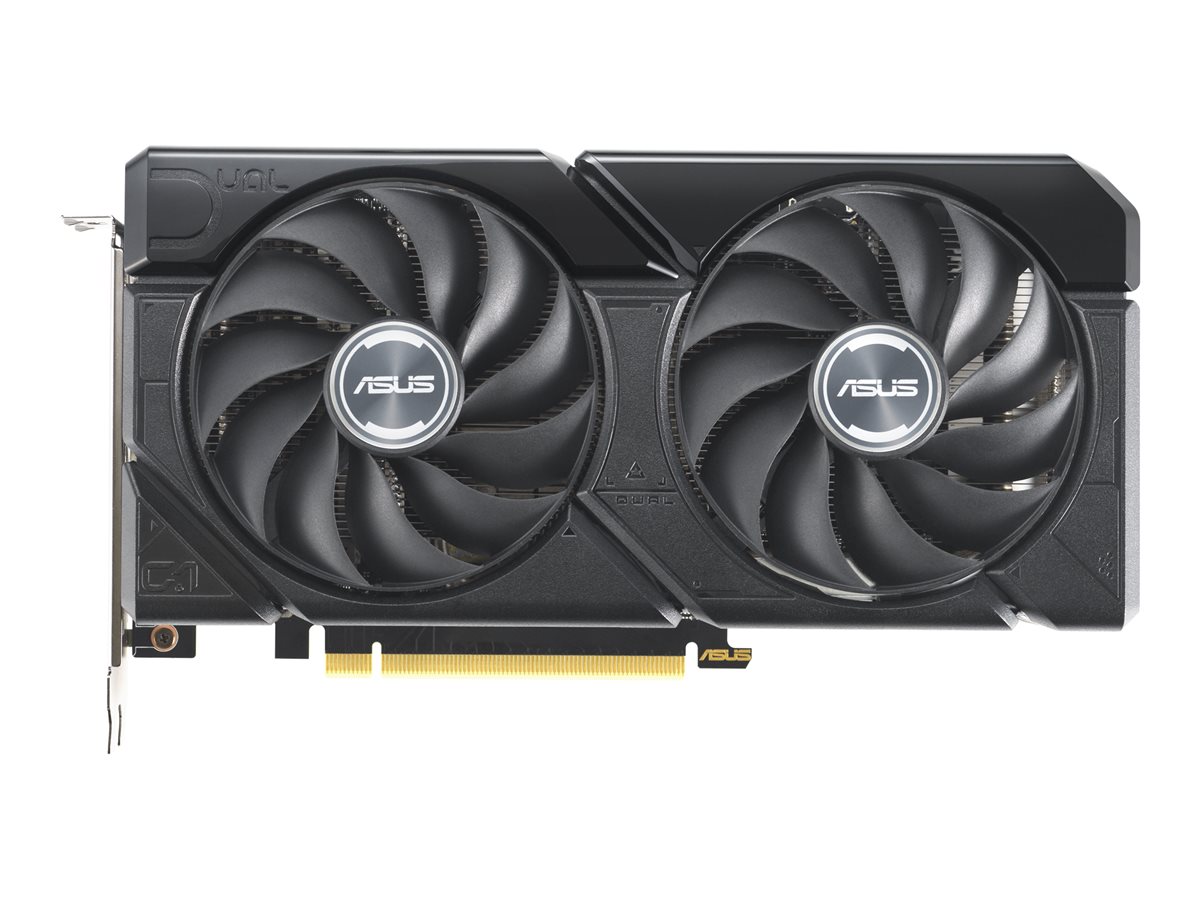

OC Edition - graphics card - GeForce RTX 4060 - 8 GB GDDR6 - PCIe 4.0 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ASUS DUAL GeForce RTX 4060 EVO 8GB - OC Edition - graphics card - GeForce RTX 4060 - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 |
| Graphics Engine | NVIDIA GeForce RTX 4060 |
| Memory | 8 GB GDDR6 |
| Memory Speed | 17 Gbps |
| Boost Clock | 2505 MHz |
| Boost Clock (OC) | 2535 MHz |
| CUDA Cores | 3072 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort (version 1.4a) ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 2 in x 8.9 in x 4.9 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 |
| Graphics Engine | NVIDIA GeForce RTX 4060 |
| Boost Clock | 2505 MHz |
| Boost Clock (OC) | 2535 MHz |
| CUDA Cores | 3072 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort (version 1.4a) ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Features | 0dB Technology, 2.5-slot Fan Cooler, 3rd gen Ray Tracing Cores, 4th gen Tensor Cores, AUTO-EXTREME technology, Axial-tech Fan Design, Dual ball Bearing Fans, Dual Bios, Dual Fan Design, NVIDIA Ada Lovelace GPU technology, Nvidia Broadcast, NVIDIA DLSS 3, NVIDIA Reflex, Nvidia Studio, aluminum backplate, stainless steel mounting bracket, 144-hour Validation Program, Optical Flow Accelerator, Resizable BAR, NVIDIA G-Sync ready, NVIDIA Ansel, HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 17 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Software Included | ASUS GPU Tweak III, ASUS Quantumcloud, Adobe Creative Cloud (1 month membership), NVIDIA GeForce Experience |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4a |
| Width | 2 in |
| Depth | 8.9 in |
| Height | 4.9 in |
| System Requirements | |
| Required Power Supply | 550 W |
| Additional Requirements | 8 pin PCI Express power connector |
