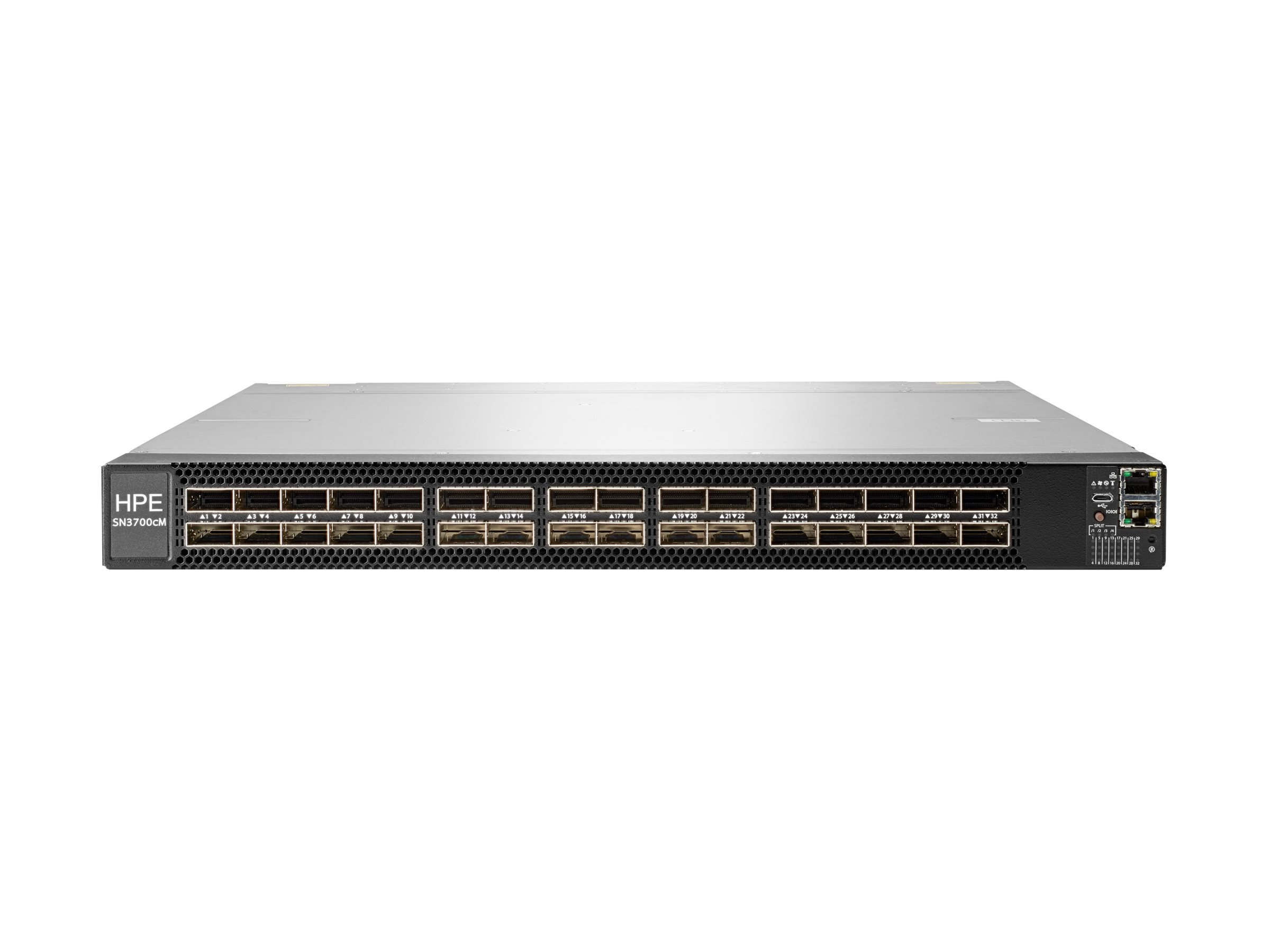

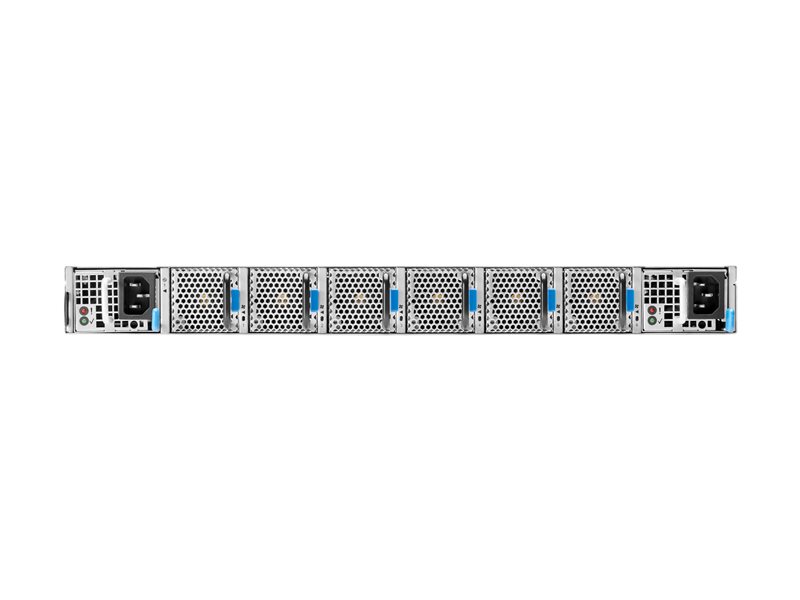

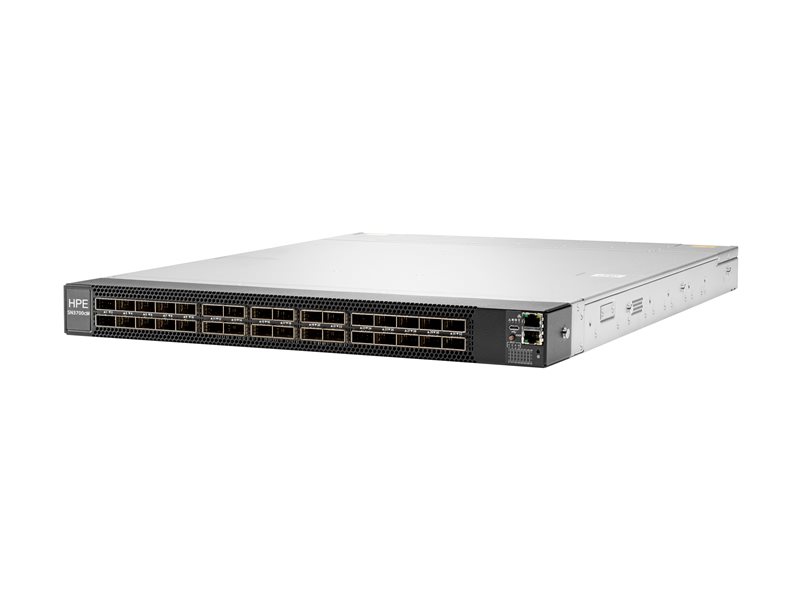

M-Series - switch - L3 - managed - 32 x 100 Gigabit QSFP28 - back to front airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE SN3700cM with NVIDIA Cumulus - M-Series - switch - 32 ports - managed - rack-mountable |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 4.76 Bpps ¦ Latency: 425 ns ¦ Aggregate throughput: 6.4 Tbps |
| Capacity | Jumbo frame size: 9216 ¦ Groups per system: 64 |
| Jumbo Frame Support | Yes |
| Routing Protocol | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
| Features | Flow control, IP-routing, VLAN support, IGMP snooping, port mirroring, store and forward, IPv6 support, WRED, VRRP support, MSTP support, DCBX support, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, port isolation, sFlow v5, cut-through, PTP, OpenFlow support, ECN, PFC, CoPP, VXLAN, MLAG, RoCE v2, OSPF, EVPN, SDN, NTP, Root Guard, Loop Guard, Voice VLAN, ToR, BPDU Filter, ERSPAN, PIM, 42MB packet buffer, BPDU Guard, Q-in-Q tunneling, SPAN mode, LAG, Rapid Convergence Spanning Tree Protocol |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 22 in x 16.9 in x 1.7 in |
| Weight | 25.35 lbs |
| General | |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 4.76 Bpps ¦ Latency: 425 ns ¦ Aggregate throughput: 6.4 Tbps |
| Capacity | Jumbo frame size: 9216 ¦ Groups per system: 64 |
| Jumbo Frame Support | Yes |
| Routing Protocol | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, IP-routing, VLAN support, IGMP snooping, port mirroring, store and forward, IPv6 support, WRED, VRRP support, MSTP support, DCBX support, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, port isolation, sFlow v5, cut-through, PTP, OpenFlow support, ECN, PFC, CoPP, VXLAN, MLAG, RoCE v2, OSPF, EVPN, SDN, NTP, Root Guard, Loop Guard, Voice VLAN, ToR, BPDU Filter, ERSPAN, PIM, 42MB packet buffer, BPDU Guard, Q-in-Q tunneling, SPAN mode, LAG, Rapid Convergence Spanning Tree Protocol |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| RAM | 8 GB |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gbit LAN QSFP28 ¦ 1 x USB ¦ 1 x management RJ-45 ¦ 1 x serial RJ-45 |
| Miscellaneous | |
| Included Accessories | Rack mount kit, fan tray |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 61000-4-6, RoHS, CAN/CSA C22.2 No. 60950-1-07, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, ICES-003 issue 6, EN 55032:2012 Class A, LV, CISPR 32:2015 Class A, EN 61000-4-3:2006, TR CU 020/2011, TR CU 004/2011, IEC 60950-1:2005/AMD2:2013, VCCI-CISPR 32:2016 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, KN22:2009 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | (50/60 Hz) |
| Power Consumption Operational | 242 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 22 in |
| Depth | 16.9 in |
| Height | 1.7 in |
| Weight | 25.35 lbs |
