Wolf Pro Security - mini desktop Core i5 i5-14500T / up to 4.8 GHz - vPro - RAM 8 GB - SSD 256 GB - NVMe - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP 1 year Wolf Pro Security Edition Service - with HP Wolf Pro Security Edition (1 year)
| Main Specifications | |
|---|---|

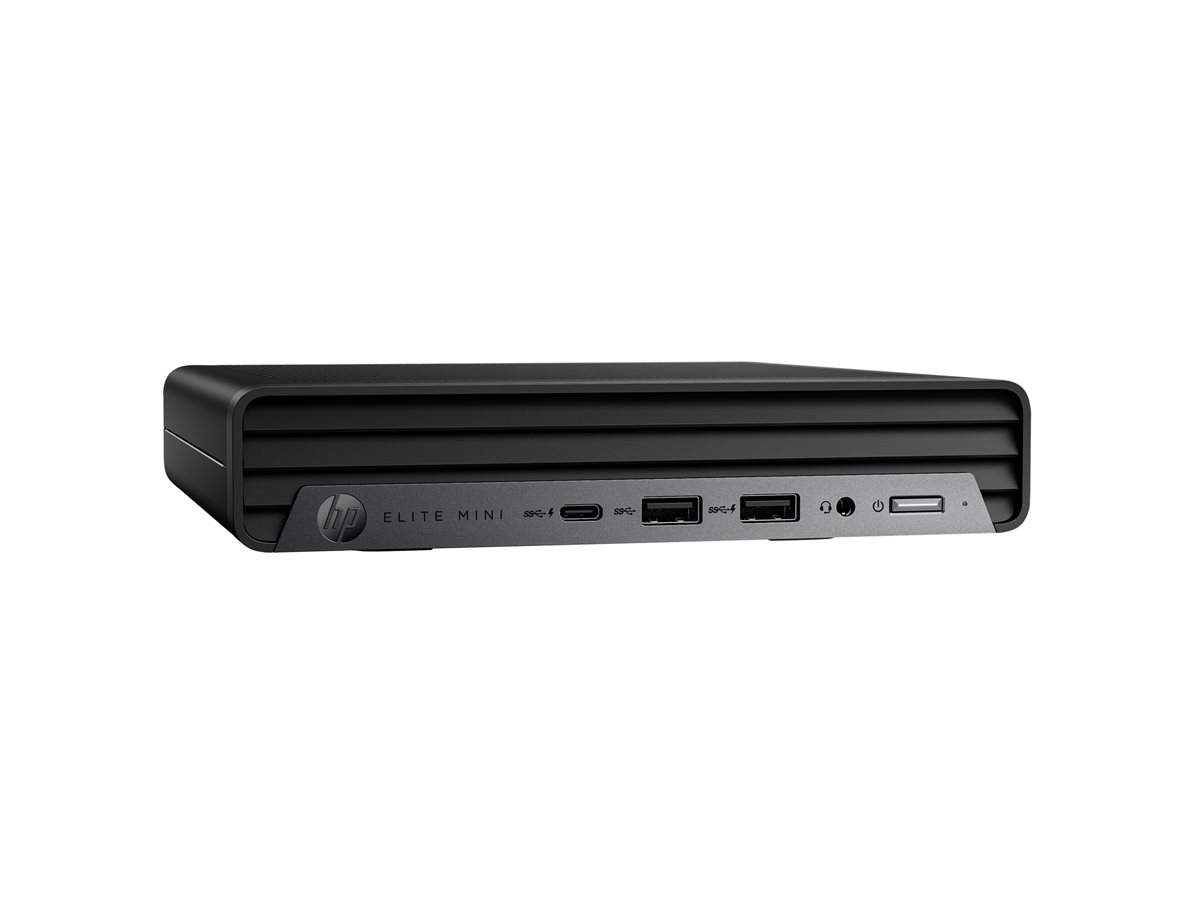

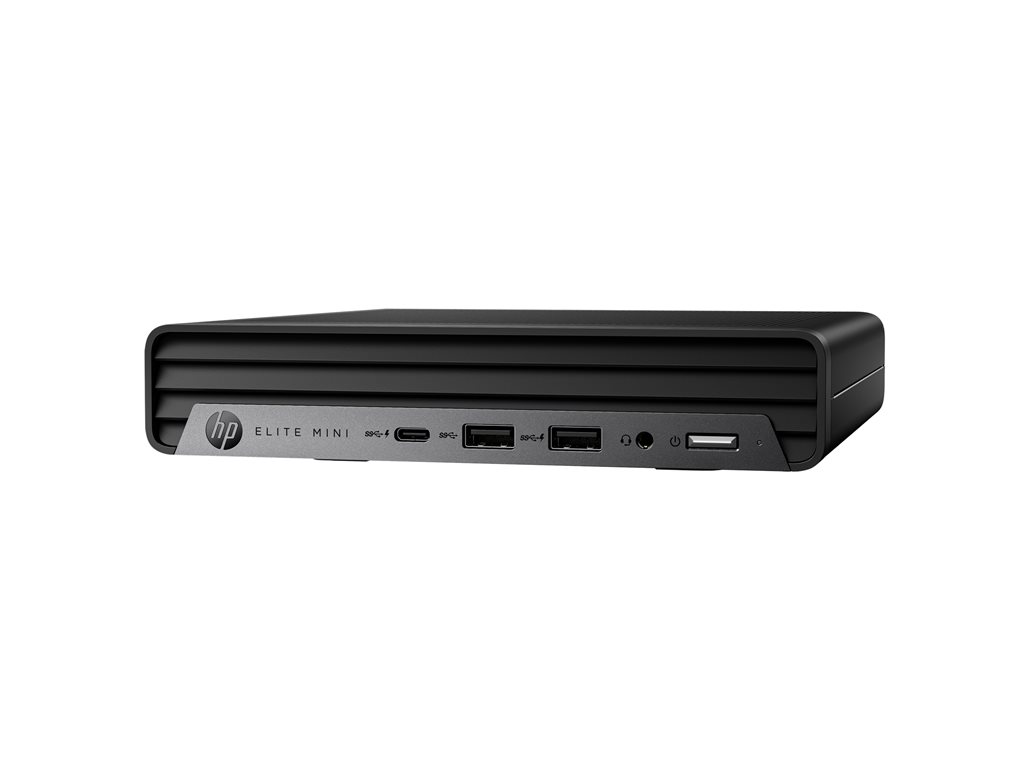

| Product Description | HP Elite 800 G9 - Wolf Pro Security - mini desktop Core i5 i5-14500T 1.7 GHz - vPro - 8 GB - SSD 256 GB - US - with HP Wolf Pro Security Edition (1 year) |
| Type | Personal computer - mini desktop |
| Bundled Services | HP 1 year Wolf Pro Security Edition Service |
| Platform Technology | Intel vPro Platform |
| Localization | Language: English / region: United States |
| Processor | Intel Core i5 (14th Gen) i5-14500T / 1.7 GHz (up to 4.8 GHz, (14-core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 24 MB L3 cache |
| Cache Per Processor | 24 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA/NVMe (SATA-600 / NVMe) |
| Hard Drive | SSD 256 GB - PCI Express - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP PC Hardware Diagnostics UEFI, Microsoft 365 (Trial), HP Secure Erase, HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP BIOSphere Gen6, HP DriveLock, myHP, HP Desktop Support Utilities, HP Client Security Manager Gen7, HP Touchpoint Customizer, HP Easy Clean, HP Smart Support, HP Connect for Microsoft Endpoint Manager, HP SureRun Gen5, HP Sure Recover Gen5, HP Wolf Security for Business, HP Sure Start Gen7 |
| Dimensions (WxDxH) | 7 in x 6.9 in x 1.3 in |
| Weight | 3.13 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| General | |
| Platform Technology | Intel vPro Platform |
| Type | Personal computer |
| Bundled Services | HP 1 year Wolf Pro Security Edition Service |
| Product Form Factor | Mini desktop |
| Built-in Devices | Speaker |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage) |

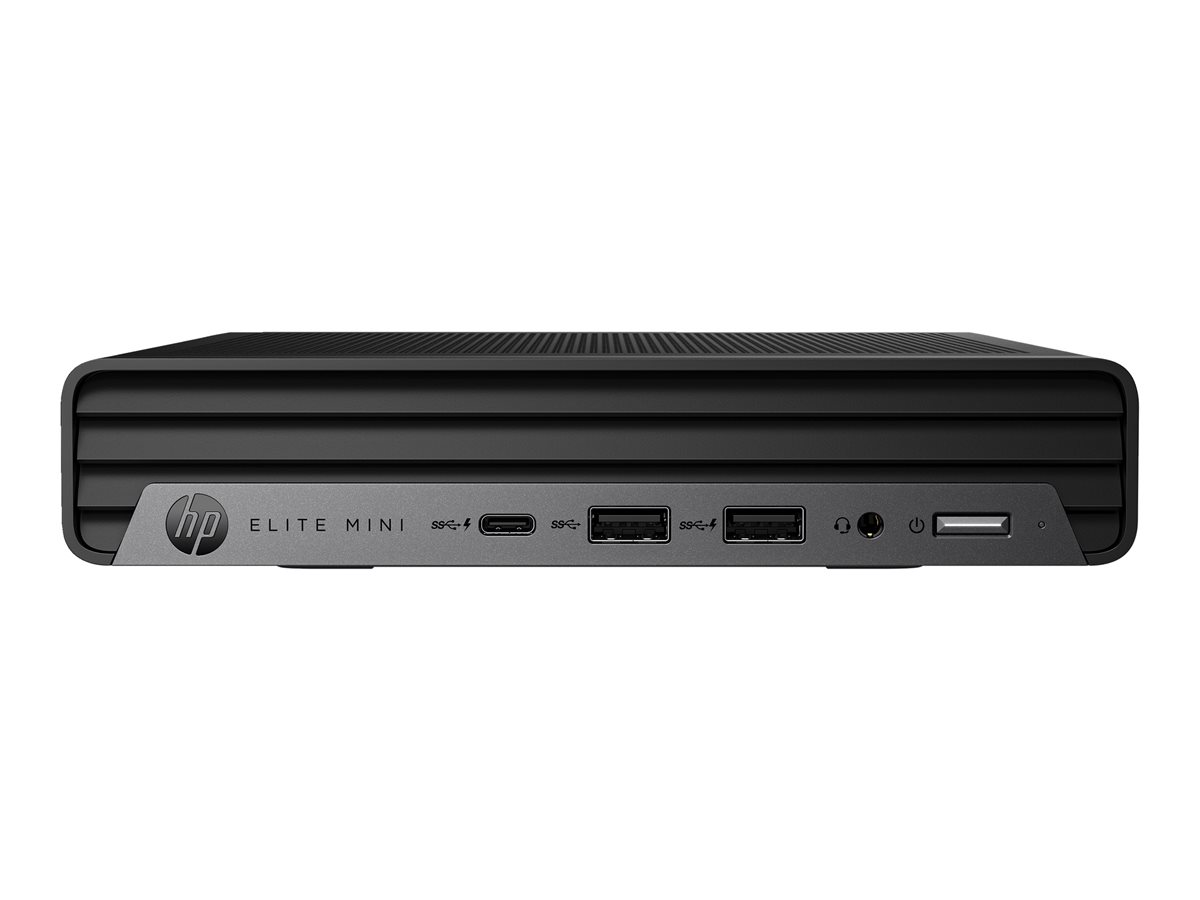

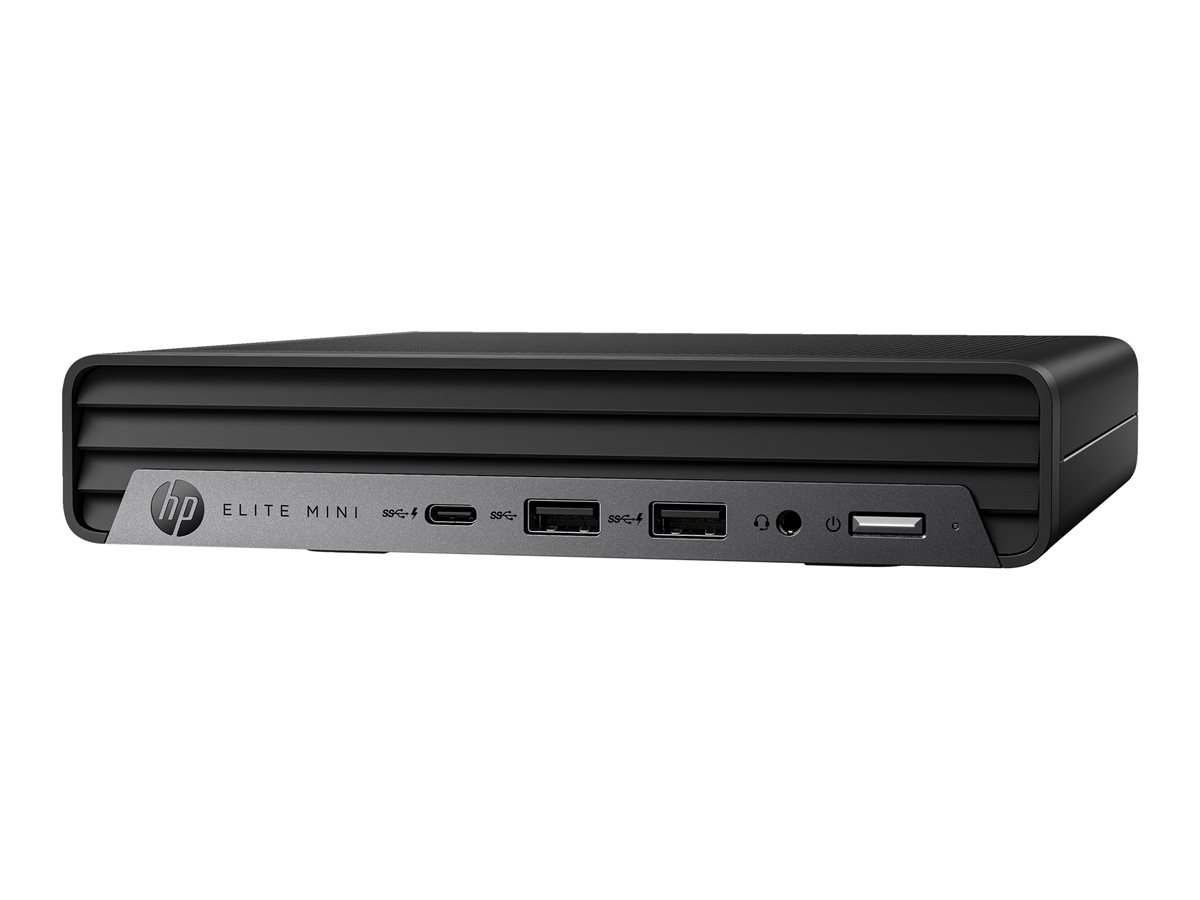

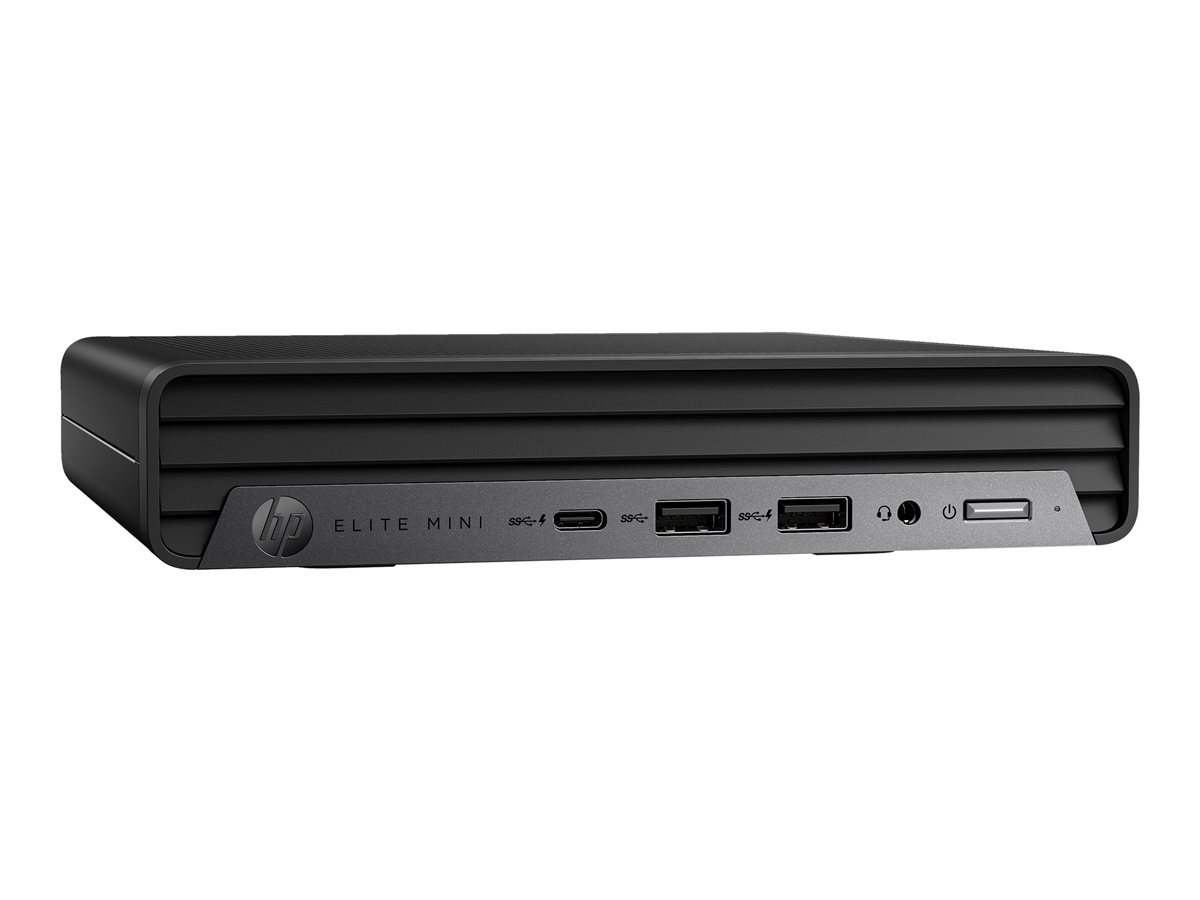

| Interfaces | 1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) ¦ 5 x USB 3.2 Gen 2 (2 front, 3 rear) (two of them with wake functionality, one of them is charging) ¦ 1 x HDMI ¦ 1 x headphones/microphone (CTIA and OMTP headset support) ¦ 2 x DisplayPort 1.4a ¦ 1 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |

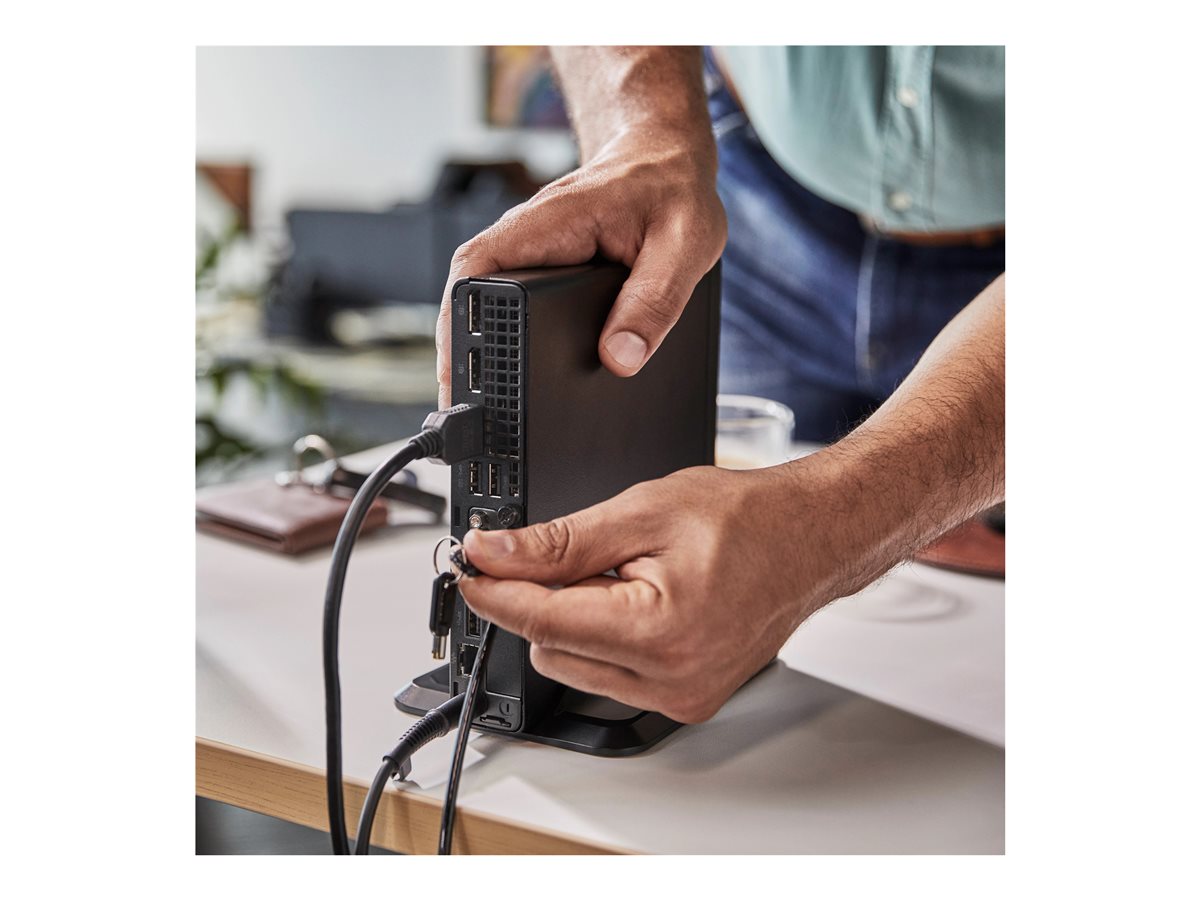

| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor, retractable padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2 Level 2, RoHS, WEEE, Common Criteria EAL4+, CECP, SEPA, low halogen, Japan PC Green Label, Taiwan Green Mark, Korea Eco-Label, TCO Certified 9.0, IT ECO Declaration, FEMP |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 1 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Interface (Bus) Type | PCI Express Mini Card (M.2) |
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Bluetooth 5.2 |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 90 Watt |
| Efficiency | 89% (230VAC), 88% (115VAC) |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA-600 / NVMe |
| Cache Memory | |
| Installed Size | L3 cache - 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Video Interfaces | HDMI, DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Speakers Included | 1 x mixed channel |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, Microsoft 365 (Trial), HP Secure Erase, HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP BIOSphere Gen6, HP DriveLock, myHP, HP Desktop Support Utilities, HP Client Security Manager Gen7, HP Touchpoint Customizer, HP Easy Clean, HP Smart Support, HP Connect for Microsoft Endpoint Manager, HP SureRun Gen5, HP Sure Recover Gen5, HP Wolf Security for Business, HP Sure Start Gen7 |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 6.9 in |
| Height | 1.3 in |
| Weight | 3.13 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19.6 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 9.3 in |
| Shipping Weight | 6.5 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 125 |
| Processor / Chipset | |
| CPU | Intel Core i5 (14th Gen) i5-14500T |
| Clock Speed | 1.7 GHz (P-core) / 1.2 GHz (E-core) |
| Max Turbo Speed | 4.8 GHz (P-core) / 3.4 GHz (E-core) |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 11.5 MB |
| Processor Main Features | Intel Turbo Boost Technology |
| Chipset Type | Intel Q670 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
