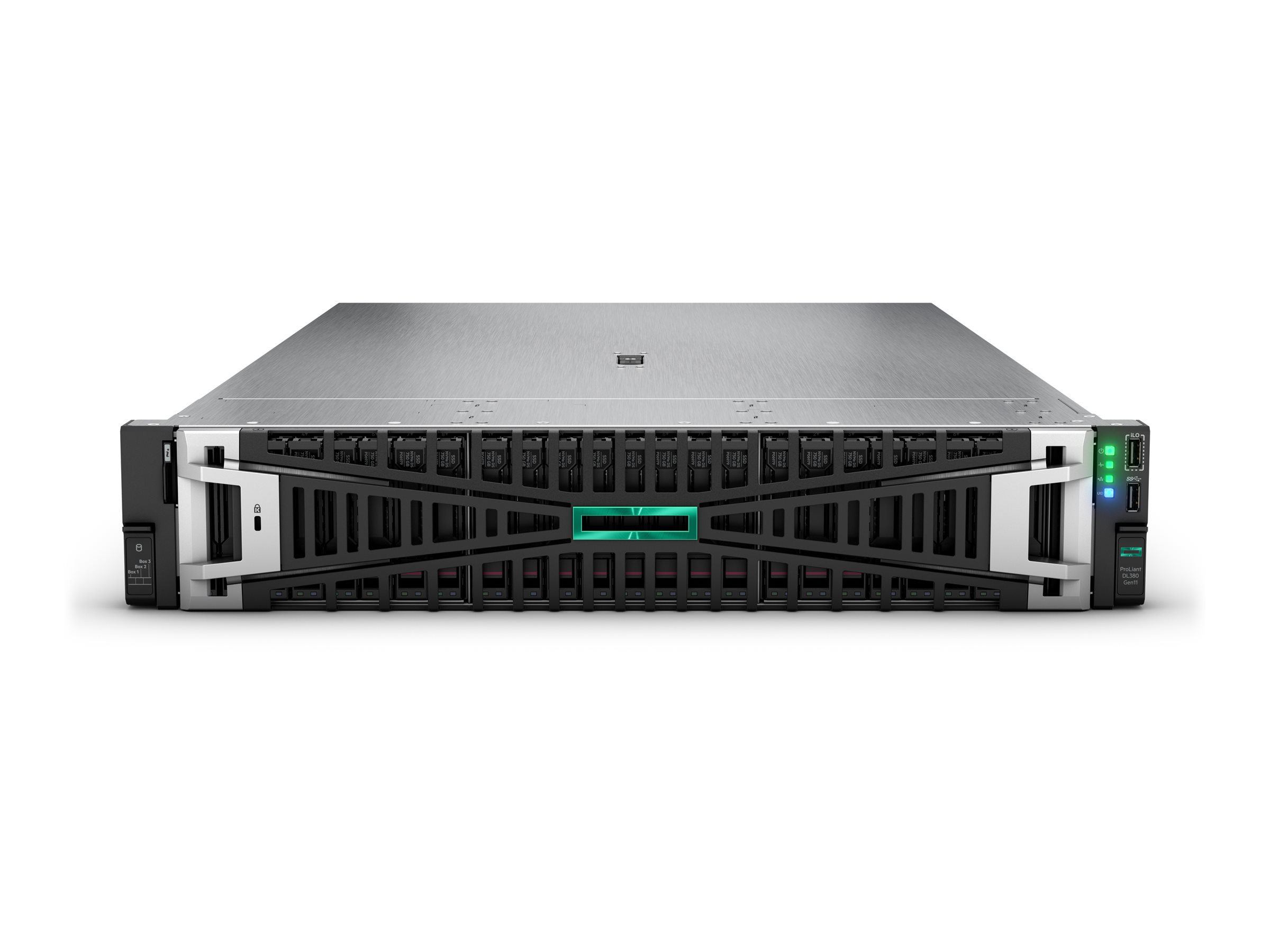

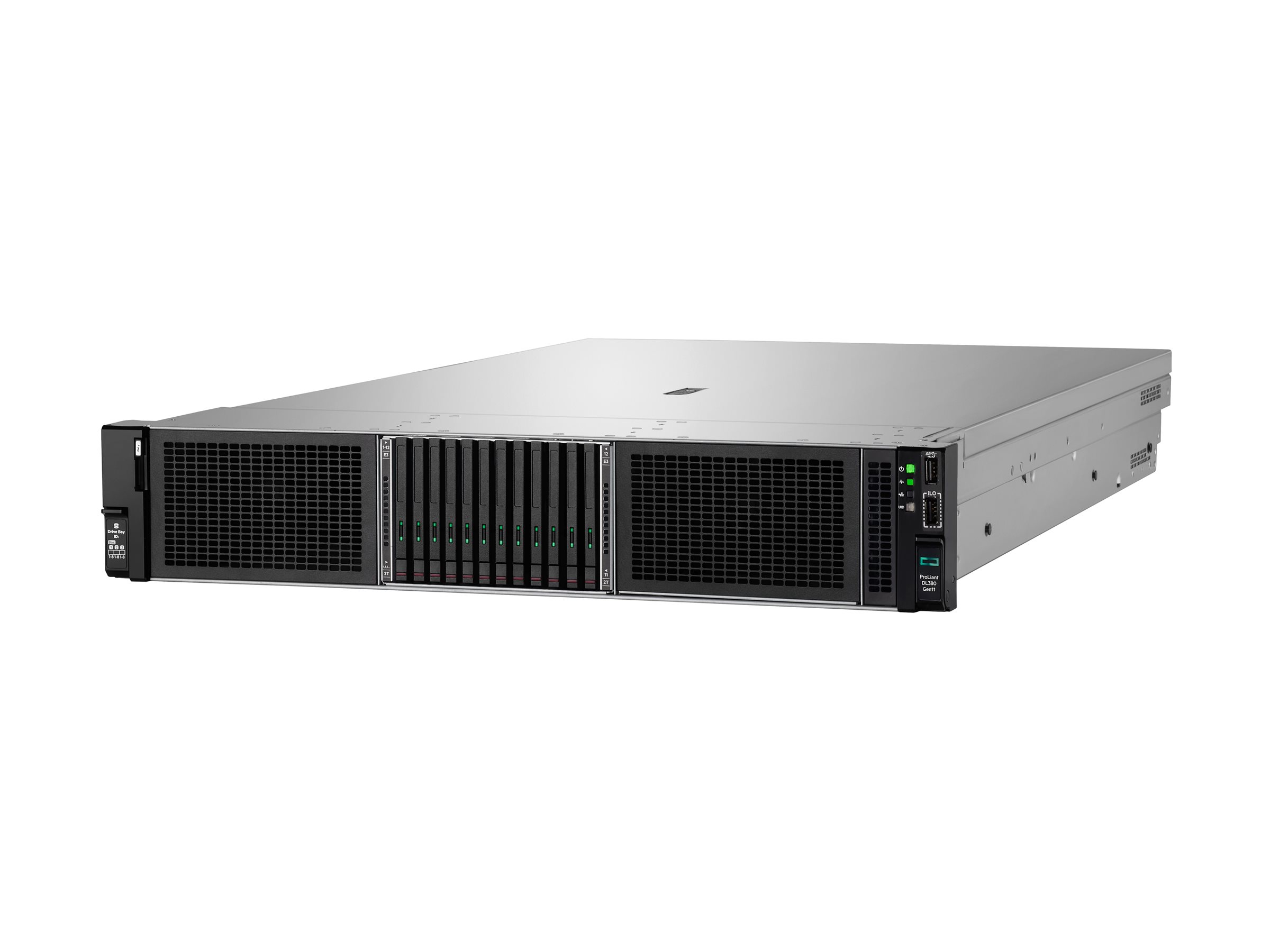

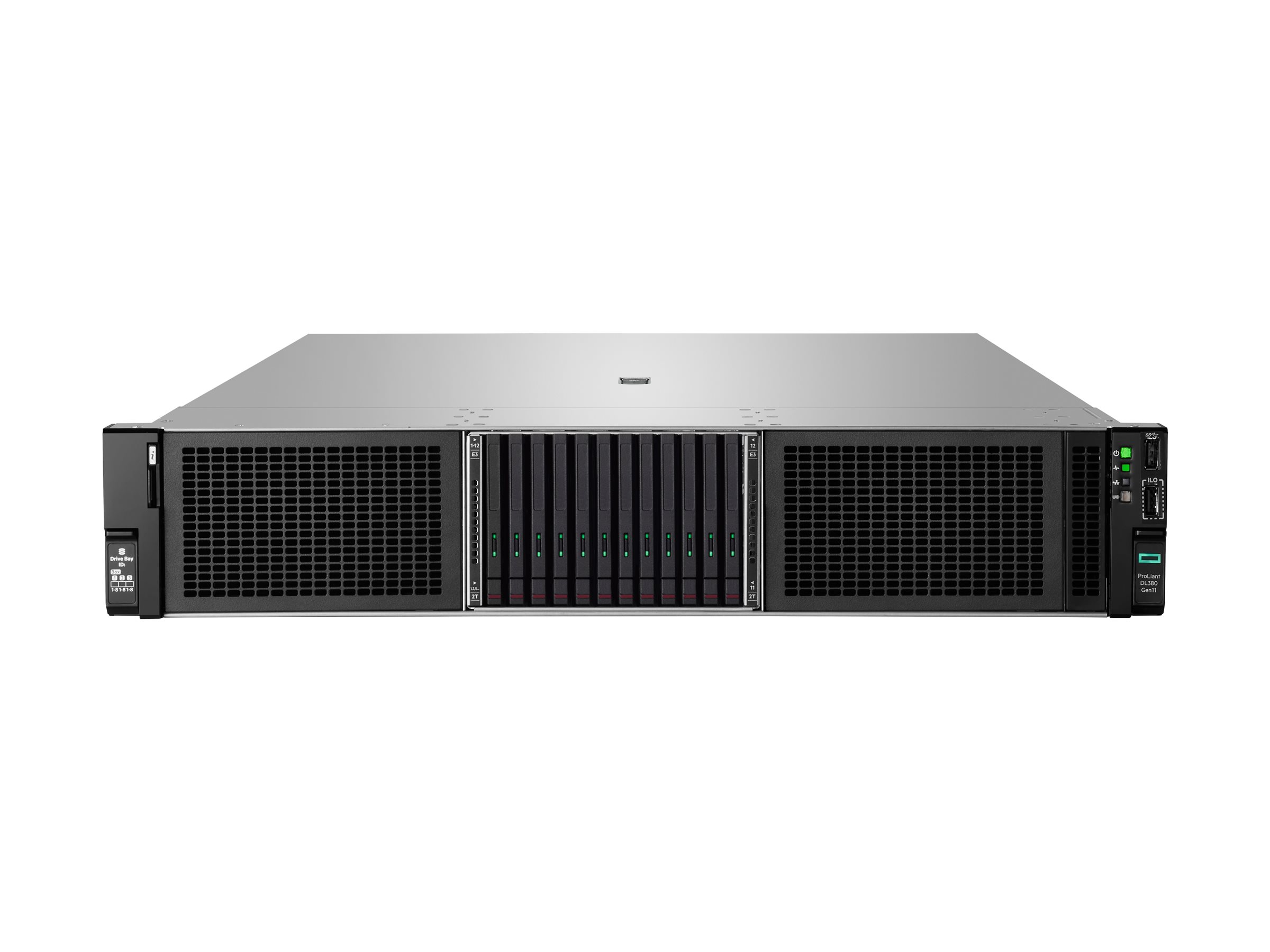

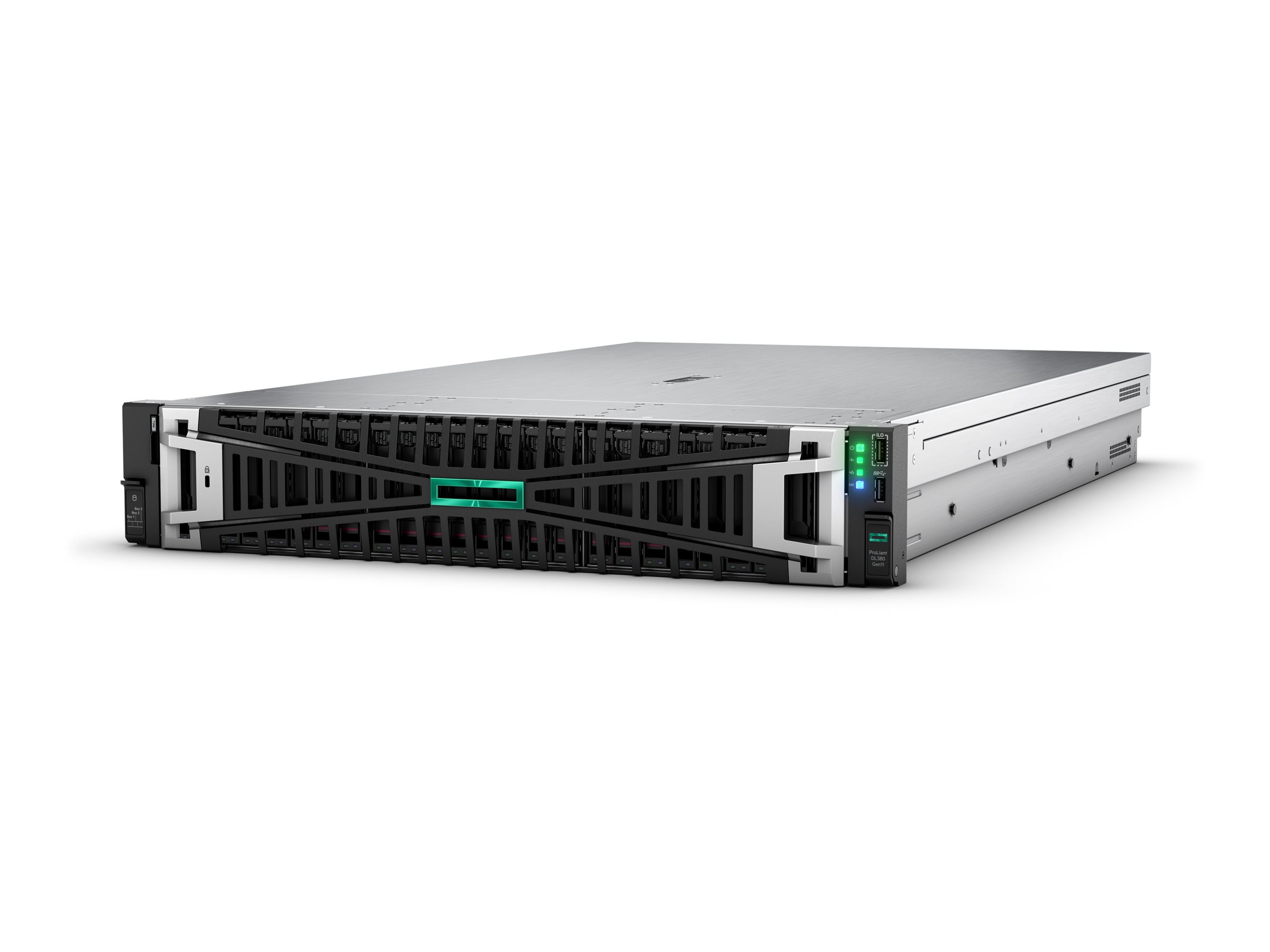

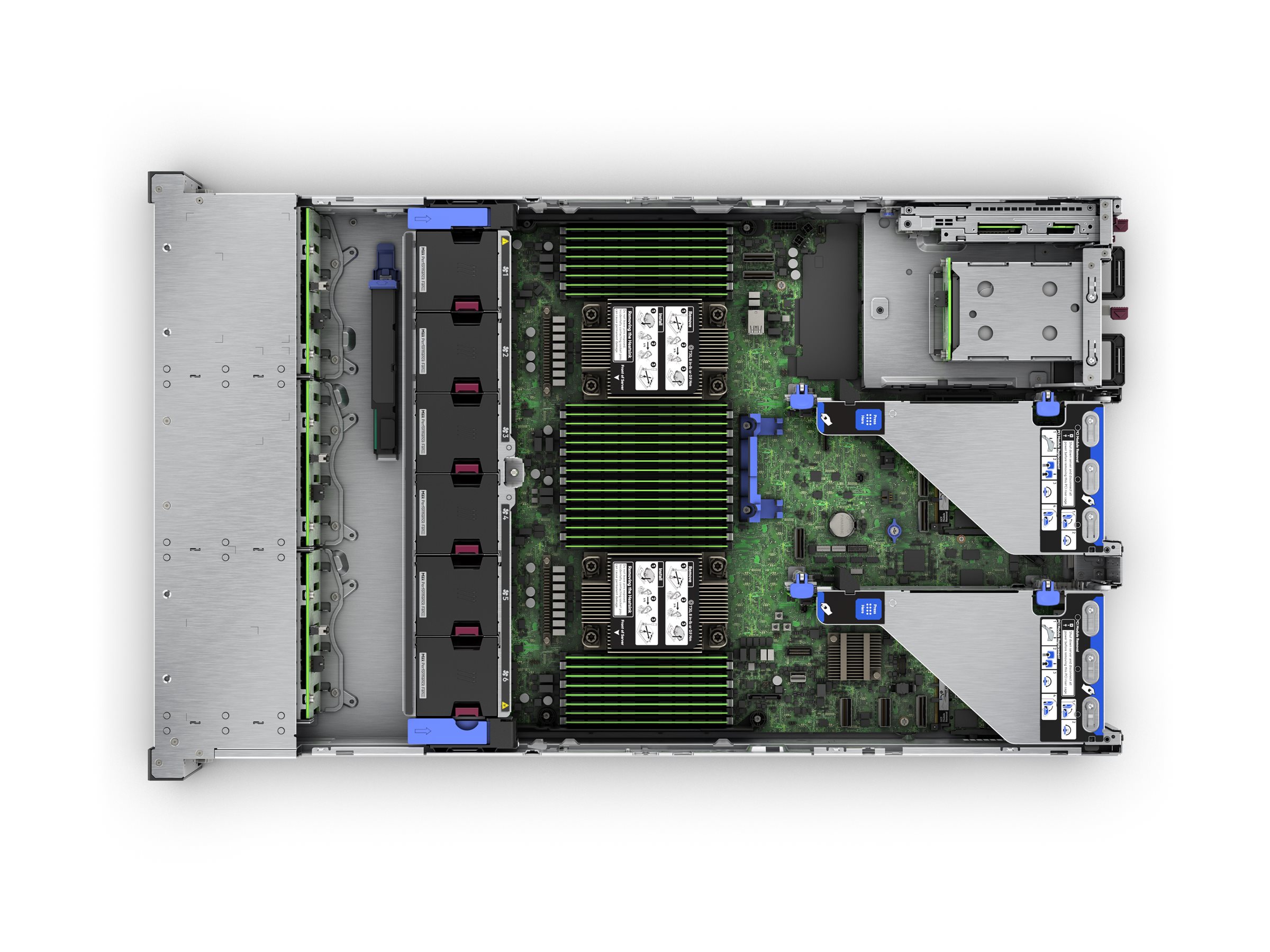

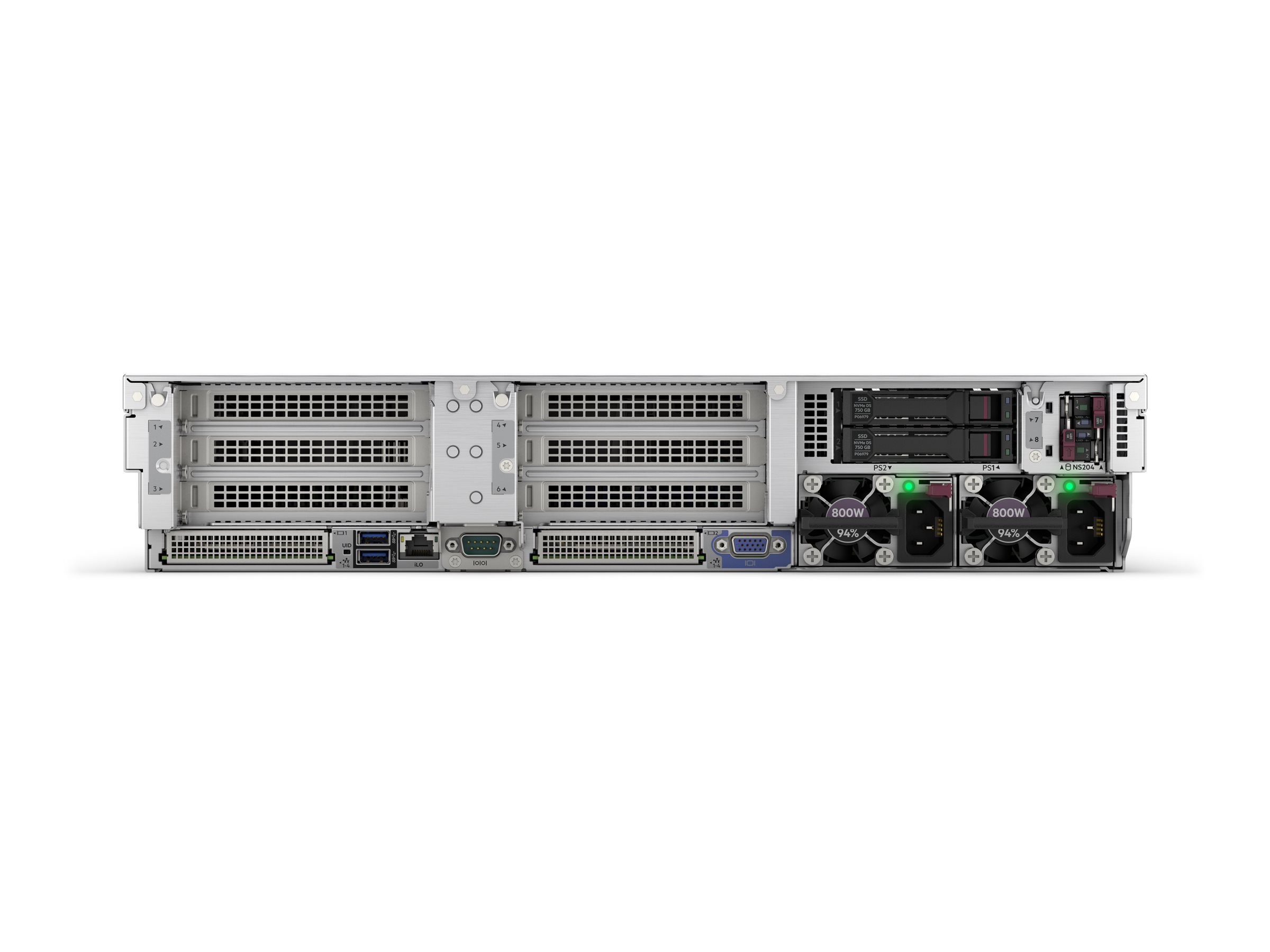

Server - rack-mountable 2U - 2-way - 1 x Xeon Gold 6526Y / up to 3.9 GHz - RAM 128 GB - NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none - Smart Choice
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL380 Gen11 Network Choice - rack-mountable Xeon Gold 6526Y 2.8 GHz - 128 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localization | Region: United States, Canada |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Gold 6526Y / 2.8 GHz (up to 3.9 GHz, (16-core) |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Cache Memory | 37.5 MB L3 cache |
| Cache Per Processor | 37.5 MB |
| RAM | 128 GB (installed) / 8 TB (max) - DDR5 SDRAM |
| Storage Controller | (NVM Express) (HPE NS204i-u) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | HPE Server UEFI |
| Dimensions (WxDxH) | 17.6 in x 28.6 in x 3.4 in |
| Weight | 35.27 lbs |
| Manufacturer Selling Program | HPE Smart Choice |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States, Canada |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 2 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) |
| Interfaces | 1 x USB 3.0 (1 in front) (HPE iLO Service Port) ¦ 4 x USB 3.0 (2 rear, 2 internal) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear) ¦ 4 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 4 standard fans, high-performance heatsink, 6 high performance fans, HPE Easy Install Rail 3 Kit |
| Compliant Standards | AES, ACPI 6.3, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, Active Directory v1.0, WEEE 2002/95/EC, FIPS 140-2, SMBIOS 3.2, Redfish API, Triple DES |
| Manufacturer Selling Program | HPE Smart Choice |
| RAM | |
| Installed Size | 128 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5200 MHz |
| Rated Memory Speed | 5600 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 28 (empty) |
| Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 4 x 32 GB |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | OCP 3.0 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 |
| Controller Interface Type | NVM Express |
| Storage Controller Name | HPE NS204i-u |
| Cache Memory | |
| Installed Size | L3 cache - 37.5 MB |
| Cache Per Processor | 37.5 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| OS Certified | Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, Canonical Ubuntu, Oracle Linux, Citrix |
| Software | HPE Server UEFI |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 28.6 in |
| Height | 3.4 in |
| Weight | 35.27 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Gold 6526Y |
| Clock Speed | 2.8 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Chipset Type | Intel C741 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
