Network surveillance / panoramic camera - fisheye - outdoor - vandal / weatherproof - color (Day&Night) - 12 MP - 4000 x 3000 - audio - LAN 10/100 - H.264, H.265, MJPEG, MPEG-4 Part 10 - DC 12 V / PoE Class 4 - TAA Compliant
| Main Specifications | |
|---|---|

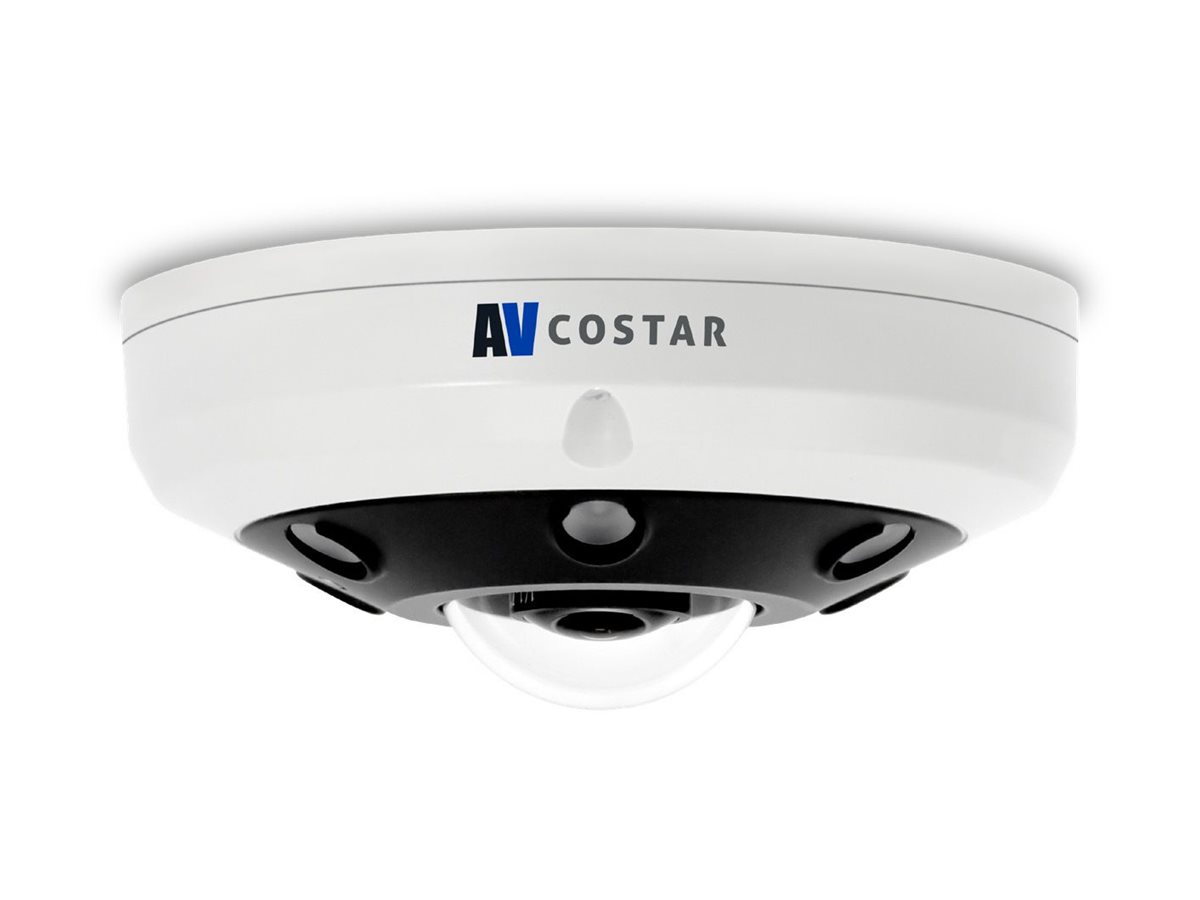

| Product Description | AV Costar ConteraIP AV12CFE-250 - network surveillance / panoramic camera - fisheye - TAA Compliant |
| Device Type | Network surveillance / panoramic camera - fixed - fisheye - outdoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 5.1 in x 5.1 in x 2.2 in |
| Weight | 23.17 oz |
| Color | AV Costar white, pantone cool gray 1C |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 4000 x 3000 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/1.7" - 12 MP |
| Minimum Illumination | 0.3 lux - color ¦ 0.09 lux - B&W |
| Focal Length | 1.97 mm |
| Lens Iris | F/2.3 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE Class 4 |
| Features | Manual white balance, auto white balance, auto gain control, Wide Dynamic Range (WDR) Enhanced, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, NightView Technology, 360° Panorama |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -40 °F - 131 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance / panoramic camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.711 |
| Form Factor | Fisheye |
| Connectivity Technology | Wired |
| Width | 5.1 in |
| Depth | 5.1 in |
| Height | 2.2 in |
| Weight | 23.17 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | SDXC Memory Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| TAA Compliant | Yes |
| Compliant Standards | EN 60950, EN 61000-3-2, EN 61000-3-3, EN55024, RoHS, UL 60950-1, WEEE, REACH, IK10, IP66, FCC CFR47 Part 15 A, EN 55032 Class A, IEEE 802.3af, NDAA |
| Color | AV Costar white, pantone cool gray 1C |
| Power | |
| Power Requirements | DC 12 V / PoE Class 4 |
| Power Device | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | H.264, H.265, MJPEG, MPEG-4 Part 10 |
| Max Digital Video Resolution | 4000 x 3000 |
| Motion Detection | Yes |
| Minimum Illumination | 0.3 lux - color ¦ 0.09 lux - B&W |
| Infrared LEDs | 6 |
| Infrared Distance | 49 ft |
| Digital Video Capture Resolution | 4000 x 3000, 2992 x 2992, 2048 x 2048, 1920 x 1080, 1280 x 1280, 4096 x 1024 |
| Frame Rate (max) | 30 frames per second |
| Features | Manual white balance, auto white balance, auto gain control, Wide Dynamic Range (WDR) Enhanced, Multicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, NightView Technology, 360° Panorama |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.1 in |
| Shipping Depth | 6.1 in |
| Shipping Height | 5.6 in |
| Shipping Weight | 30.68 oz |
| Lens Construction | |
| Focal Length | 1.97 mm |
| Lens Iris | F/2.3 |
| Horizontal Field of View (degree) | 180 |
| Vertical Field of View (degree) | 180 |
| Image Sensor | |
| Type | 12 MP CMOS 1/1.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, SSL |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
