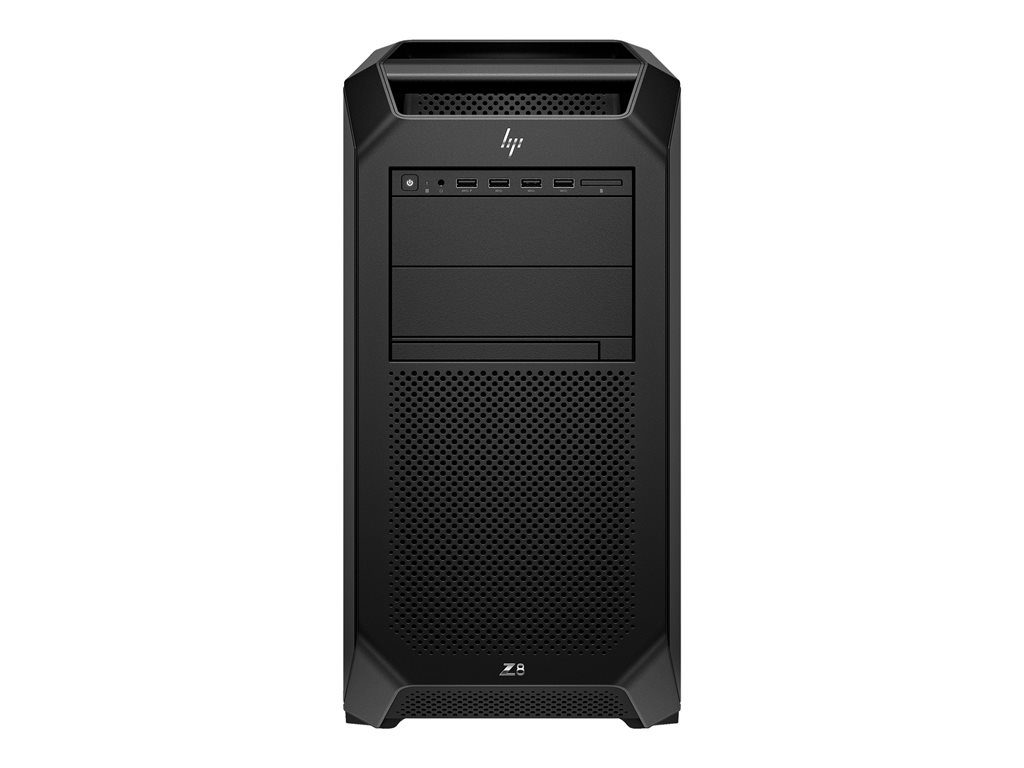

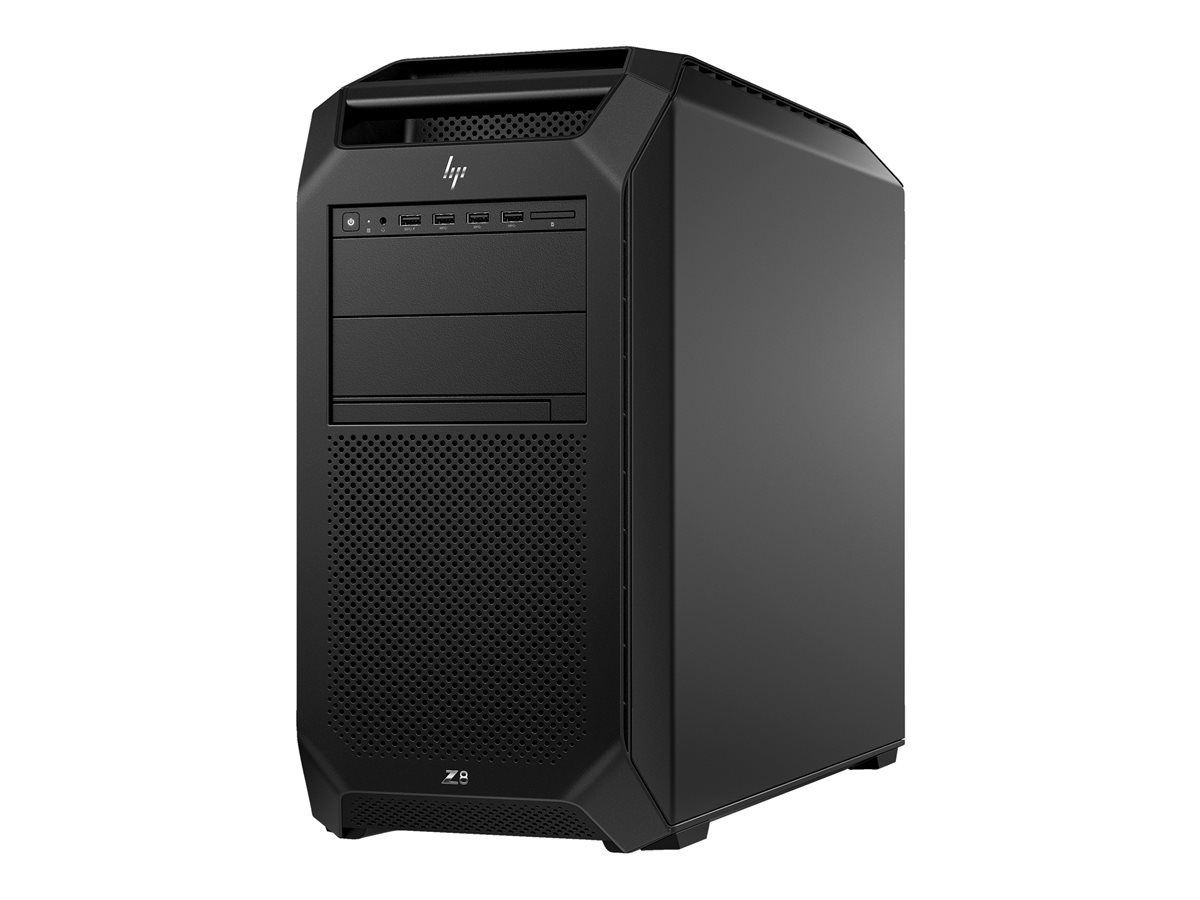

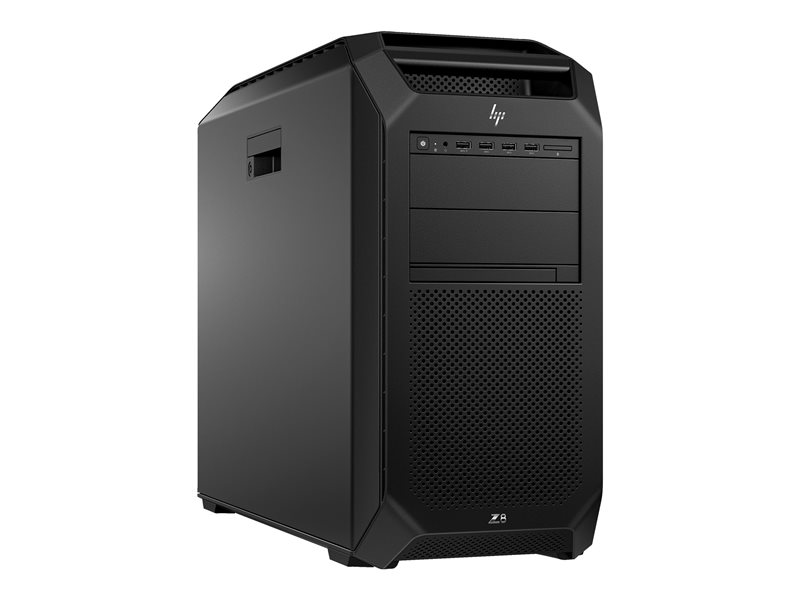

Tower 5U - 2-way - 2 x Xeon Gold 6448Y / up to 4.1 GHz - RAM 1 TB - SSD 4 TB - HP Z Turbo Drive, NVMe - RTX A2000 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z8 G5 - tower Xeon Gold 6448Y 2.1 GHz - 1 TB - SSD 4 TB - US |
| Type | Workstation - tower |
| Height (Rack Units) | 5U |
| Localization | Language: English / region: United States |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon Gold 6448Y / 2.1 GHz (up to 4.1 GHz, (32-core) |
| Processor Socket | LGA4677 Socket-E |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Cache Memory | 120 MB L3 cache |
| Cache Per Processor | 60 MB |
| RAM | 1 TB (installed) / 1 TB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 4 TB - PCI Express 4.0 - M.2 - HP Z Turbo Drive, NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA RTX A2000 |
| Video Memory | 6 GB GDDR6 SDRAM |
| Networking | 1GbE |
| Keyboard | US |
| Power | (47/66 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP BIOSphere, HP Drive Packs (free download), HP PC Hardware Diagnostics, HP Manageability & Integration Kit, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Sure Admin, HP Smart Support (free download), HP Data Science Stack, HP Sure Start |
| Color | Black |
| Dimensions (WxDxH) | 8.5 in x 21.7 in x 17.5 in |
| Weight | 49.6 lbs |
| Manufacturer Warranty | Limited warranty - parts and labor - 1 year - on-site |
| General | |
| Type | Workstation |
| Product Form Factor | Tower - 5U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Color | Black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x external 5.25" ¦ 4 (total) / 4 (free) x internal 3.5" |
| Slots | 1 (total) / 0 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 (2 processors must be installed) ¦ 2 (total) / 2 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (2 processors must be installed) |
| Interfaces | 1 x headphones/microphone (1 in front) ¦ 10 x USB 3.1 Gen 1 (4 front, 6 rear) (one of them is Battery Charging 1.2) ¦ 1 x audio line-in ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | UL, GS, FCC, RoHS, ICES, CEC, ERP, CECP, CEL, BIS |
| RAM | |
| Installed Size | 1 TB (installed) / 1 TB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 0 (empty) |
| Features | Registered, slots 9 - 16 are available in two-processor configuration only |
| Configuration Features | 16 x 64 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support, Intel Active Management Technology (AMT), PXE 2.1 support |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-269 V (47/66 Hz) |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 8 - 85% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 120 MB |
| Cache Per Processor | 60 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA RTX A2000 |
| Video Memory | 6 GB GDDR6 SDRAM |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP BIOSphere, HP Drive Packs (free download), HP PC Hardware Diagnostics, HP Manageability & Integration Kit, HP System Software Manager (free download), HP Sure Click, HP Sure Run, HP Sure Recover, HP Sure Admin, HP Smart Support (free download), HP Data Science Stack, HP Sure Start |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 4 TB |
| Interface Type | PCI Express 4.0 |
| Features | HP Z Turbo Drive, NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 8.5 in |
| Depth | 21.7 in |
| Height | 17.5 in |
| Weight | 49.6 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.1 in |
| Shipping Depth | 28.9 in |
| Shipping Height | 25 in |
| Shipping Weight | 61.62 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Interface | USB |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Processor / Chipset | |
| CPU | Intel Xeon Gold 6448Y |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 32-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| CPU Socket | LGA4677 Socket-E |
| Chipset Type | Intel C741 |
