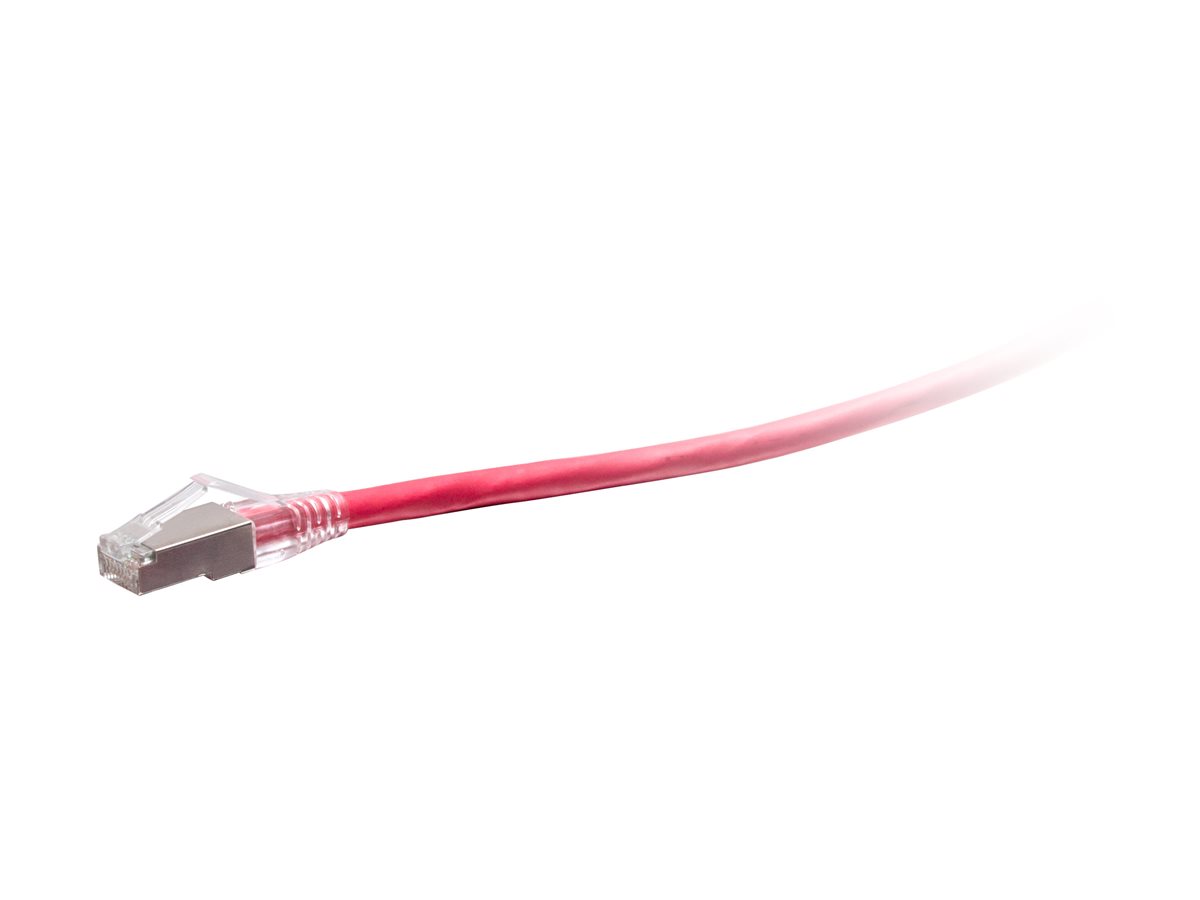

TAA Compliant F-Series - Red - Patch cable - TAA Compliant - RJ-45 (M) to RJ-45 (M) - 9 ft - 0.2 in - STP - CAT 6a - CMR - molded, snagless - red
| Main Specifications | |
|---|---|
| Product Description | C2G 9ft Cat6a Snagless Shielded Ethernet Cable - TAA Compliant F-Series - Red - patch cable - TAA Compliant - 9 ft - red |
| Type | Patch cable - CAT 6a - CMR |
| Technology | STP |
| Wiring Scheme | T568B |
| Shielding Material | Aluminium foil wrap |
| Wires per Cable | 8 wires |
| Features | Molded, snagless, reduced structural return loss (SRL), HDPE conductor insulation, EMI/RFI protection, up to 10 Gbps, copper wires, alien crosstalk protection |
| Length | 9 ft |
| Diameter | 0.2 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Red |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - CAT 6a - CMR |
| Technology | STP |
| Wiring Scheme | T568B |
| Shielding Material | Aluminium foil wrap |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 26 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Impedance | 100 Ohm |
| Conductor Resistance | 42.6 Ohm |
| Plated Connector | Gold |
| Features | Molded, snagless, reduced structural return loss (SRL), HDPE conductor insulation, EMI/RFI protection, up to 10 Gbps, copper wires, alien crosstalk protection |
| Length | 9 ft |
| Diameter | 0.2 in |
| Color | Red |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | IC, RoHS, REACH, ISO/IEC 11801-1, ANSI/TIA-568.2-D Category 6A, UKCA, NAFTA |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 167 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
