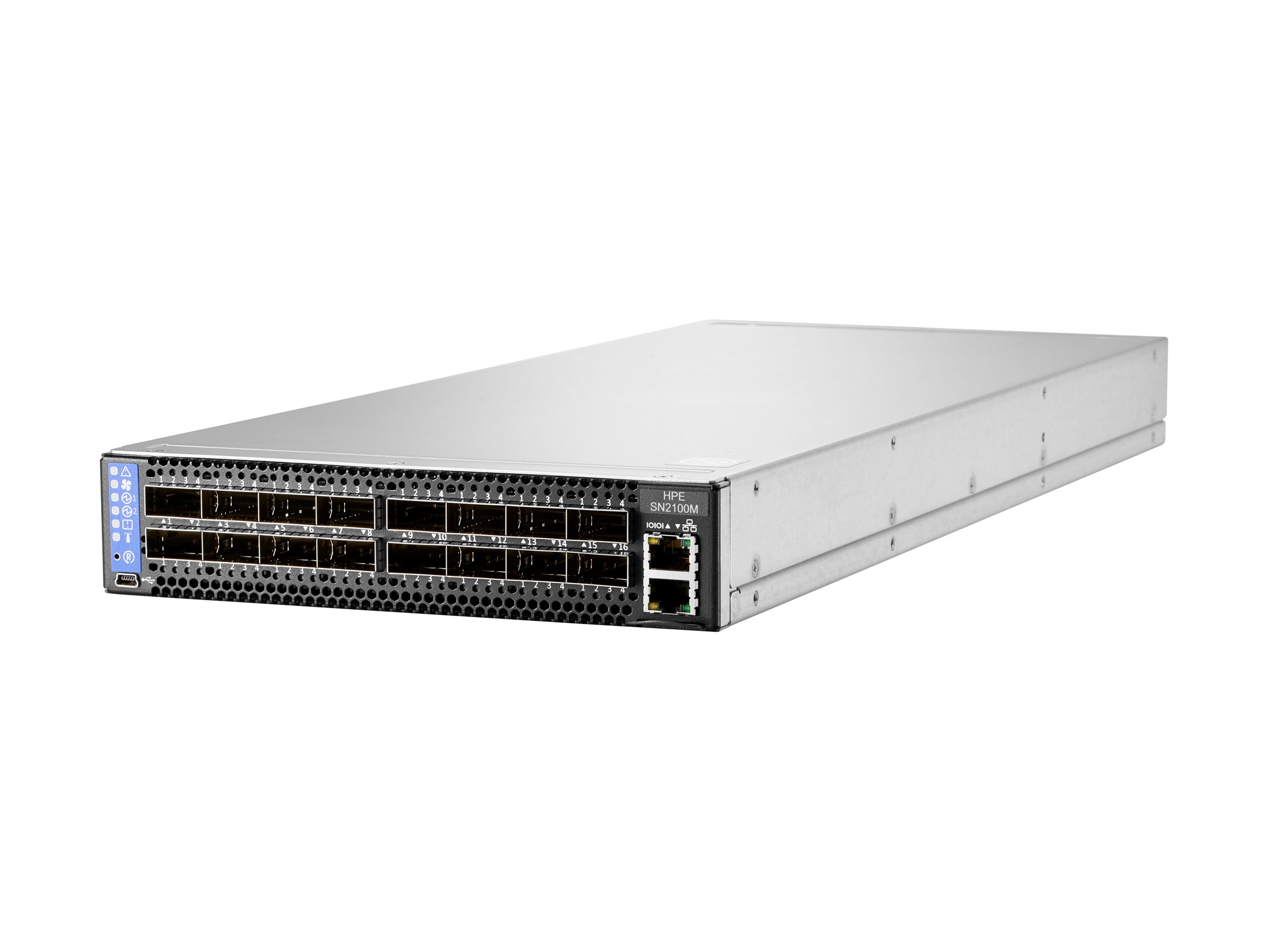

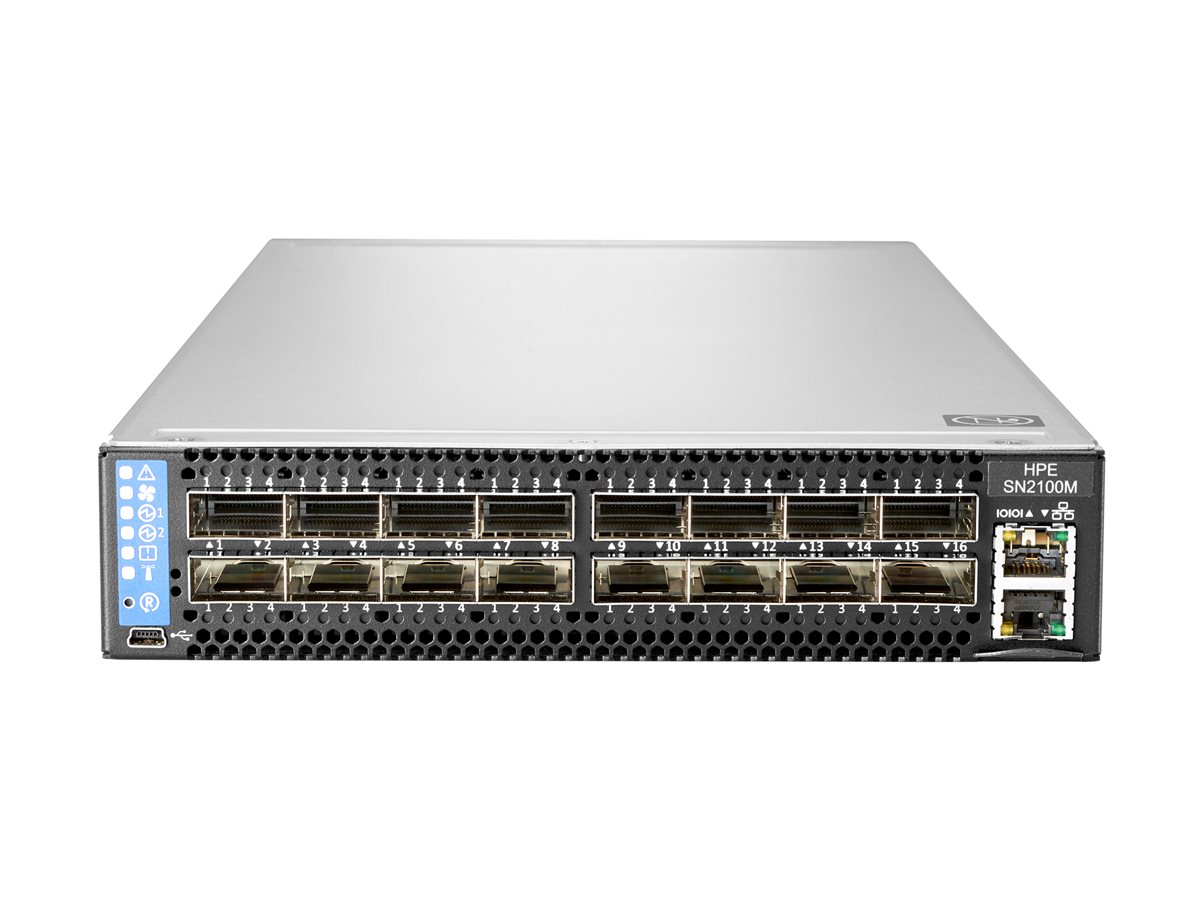

M-Series - switch - half width - L3 - managed - 16 x 40/100 Gigabit Ethernet QSFP28 - back to front airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE SN2100M 100GbE 16QSFP28 Switch - M-Series - switch - half width - 16 ports - managed - rack-mountable |
| Device Type | Switch - 16 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 16 x 40/100 Gigabit Ethernet QSFP28 |
| Performance | Switching capacity: 3.2 Tbps ¦ Latency: 300 ns ¦ Processing capacity: 2.38 Bpps |
| Capacity | Packet buffer size: 16 MB |
| Jumbo Frame Support | Yes |
| Routing Protocol | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
| Features | Flow control, IP-routing, VLAN support, IGMP snooping, store and forward, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, cut-through, PTP, ECN, PFC, VXLAN, MLAG, RoCE v2, OSPF, EVPN, ToR, ERSPAN, PIM, BPDU Guard |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Power | AC 100-264 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 7.9 in x 20 in x 1.7 in |
| Weight | 10.01 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 16 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 16 x 40/100 Gigabit Ethernet QSFP28 |
| Performance | Switching capacity: 3.2 Tbps ¦ Latency: 300 ns ¦ Processing capacity: 2.38 Bpps |
| Capacity | Packet buffer size: 16 MB |
| Jumbo Frame Support | Yes |
| Routing Protocol | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
| Authentication Method | TACACS+ |
| Features | Flow control, IP-routing, VLAN support, IGMP snooping, store and forward, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, cut-through, PTP, ECN, PFC, VXLAN, MLAG, RoCE v2, OSPF, EVPN, ToR, ERSPAN, PIM, BPDU Guard |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz |
| RAM | 8 GB |
| Built-in Devices | 16 GB SSD |
| Expansion / Connectivity | |
| Interfaces | 16 x 40/100Gbit LAN QSFP28 ¦ 1 x management RJ-45 ¦ 1 x serial RJ-45 ¦ 1 x mini-USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, CB, CCC, FCC, RoHS, KCC, ICES, S Mark, cTUVus, RCM, CU |
| Power | |

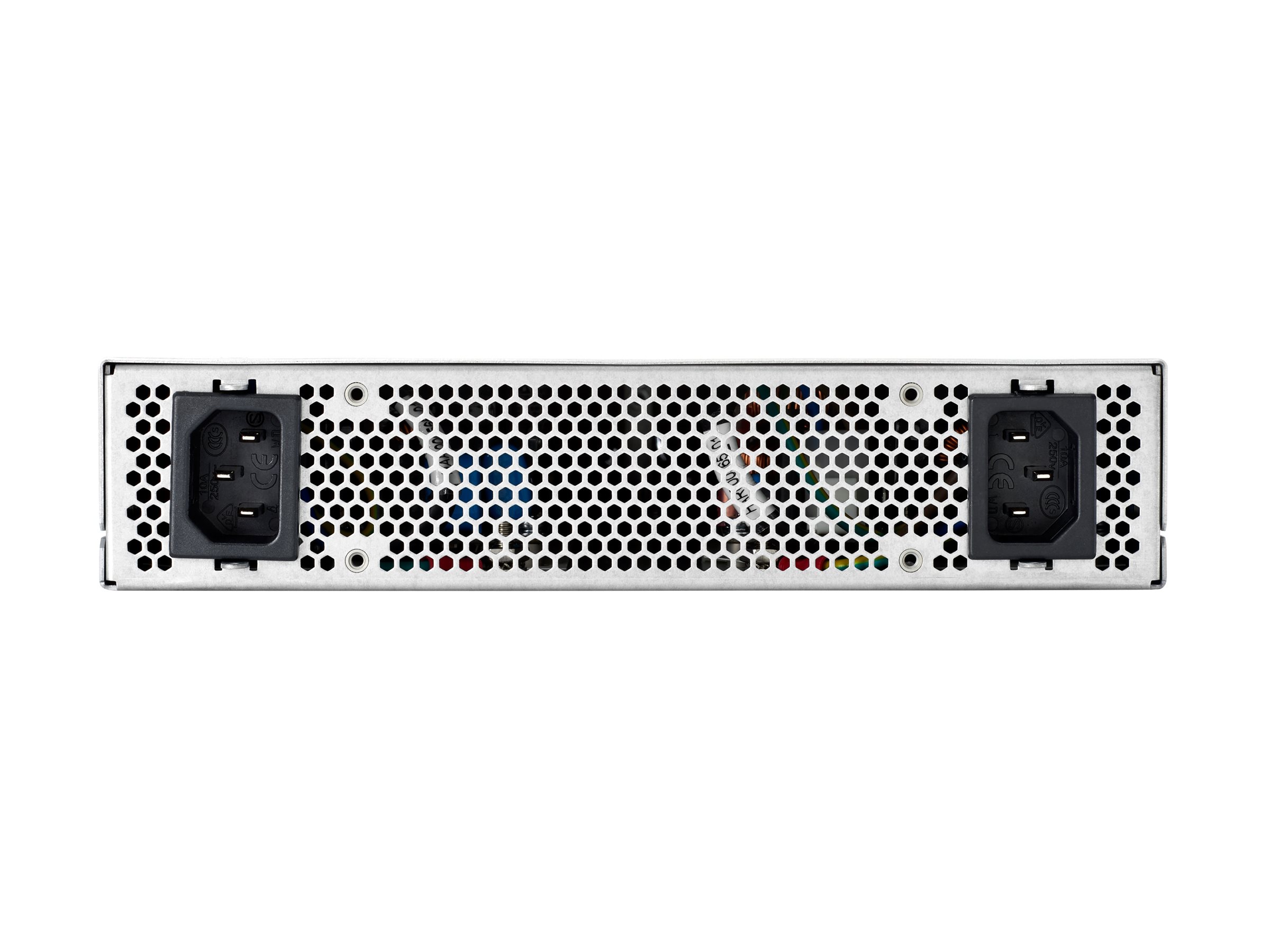

| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-264 V (50/60 Hz) |
| Power Consumption Operational | 74 Watt |
| Features | Power-to-port airflow |
| Software / System Requirements | |
| Software Included | NVIDIA Cumulus Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 20 in |
| Height | 1.7 in |
| Weight | 10.01 lbs |
