Wolf Pro Security - SFF Core i5 i5-14500 / up to 5 GHz - RAM 8 GB - SSD 256 GB - NVMe - UHD Graphics 770 - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - Smart Buy - with HP Wolf Pro Security Edition (1 year)
| Main Specifications | |
|---|---|

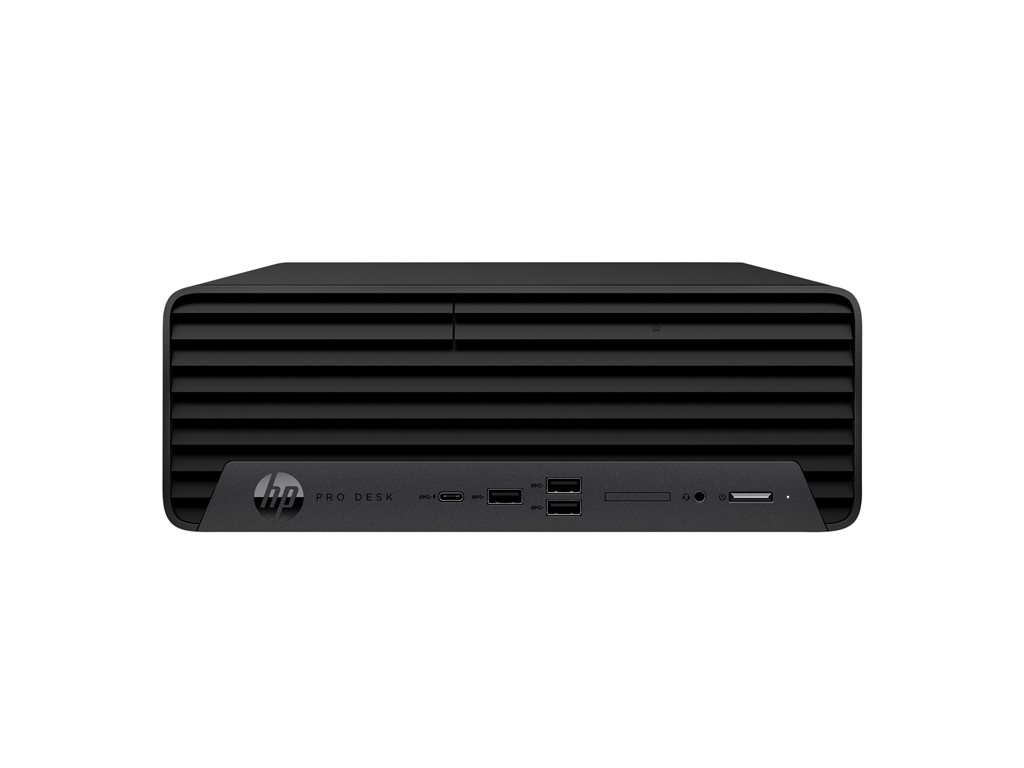

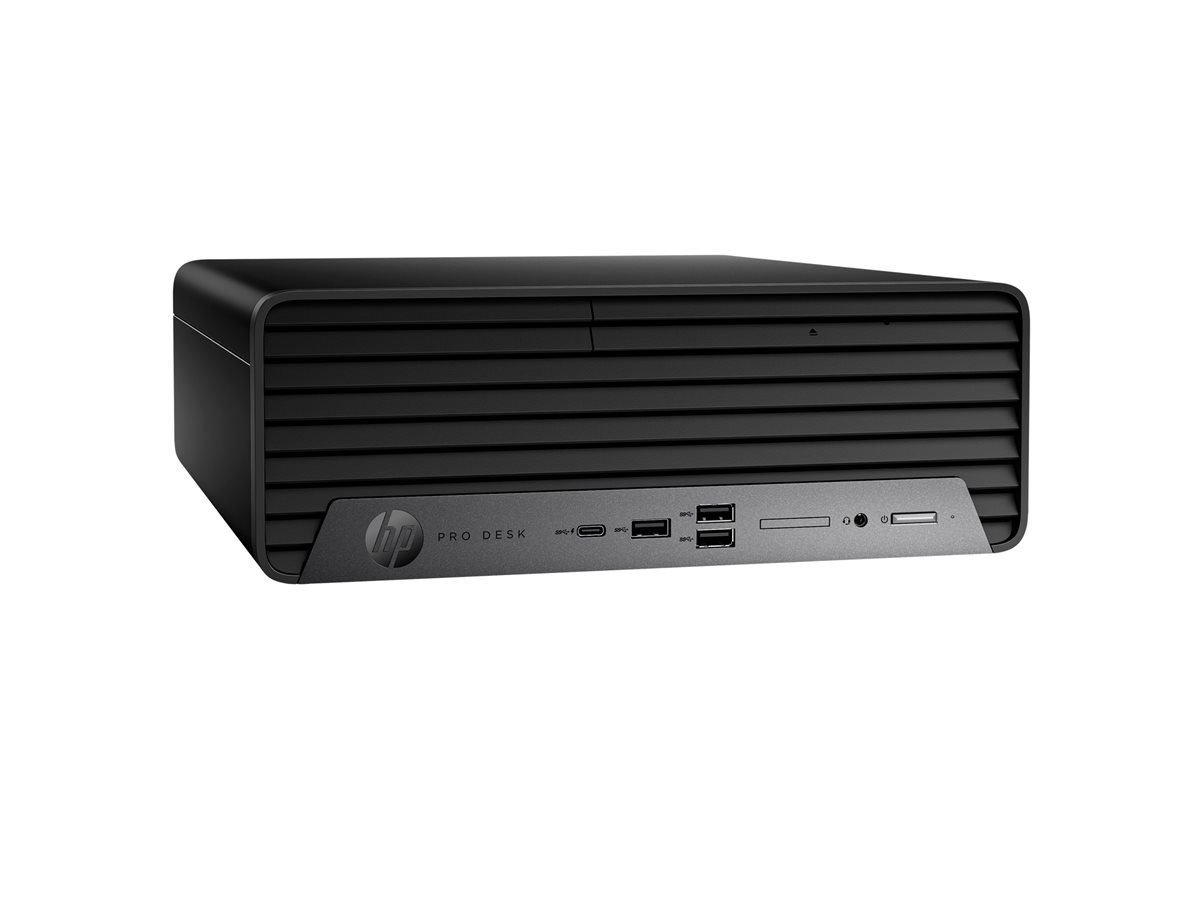

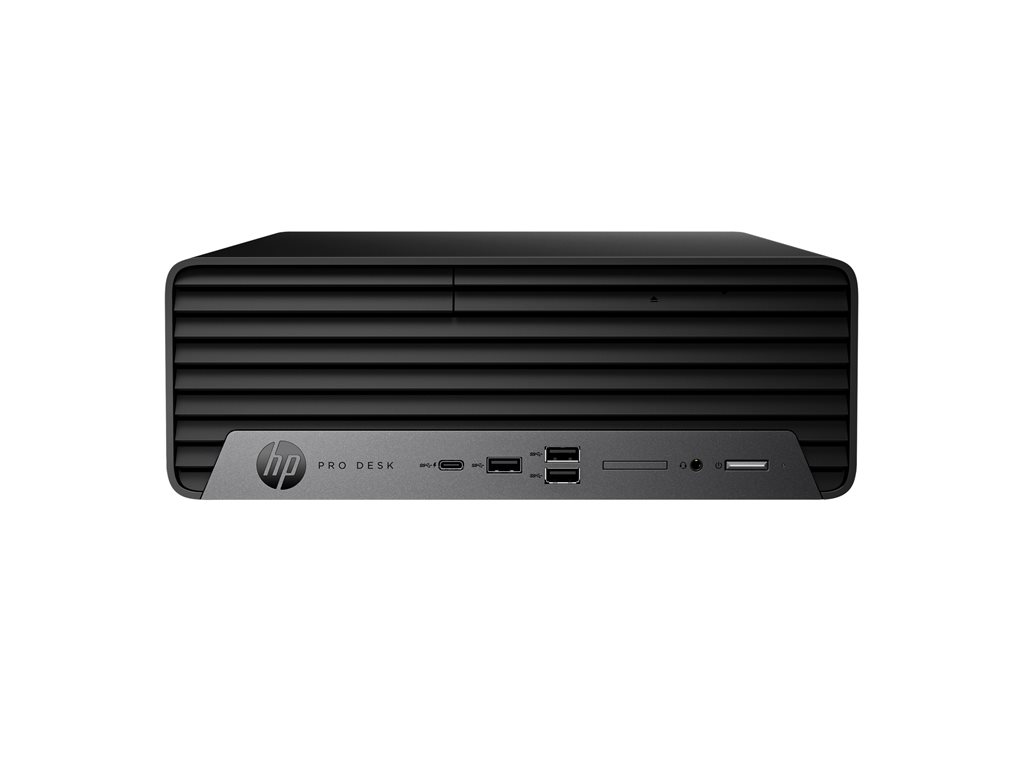

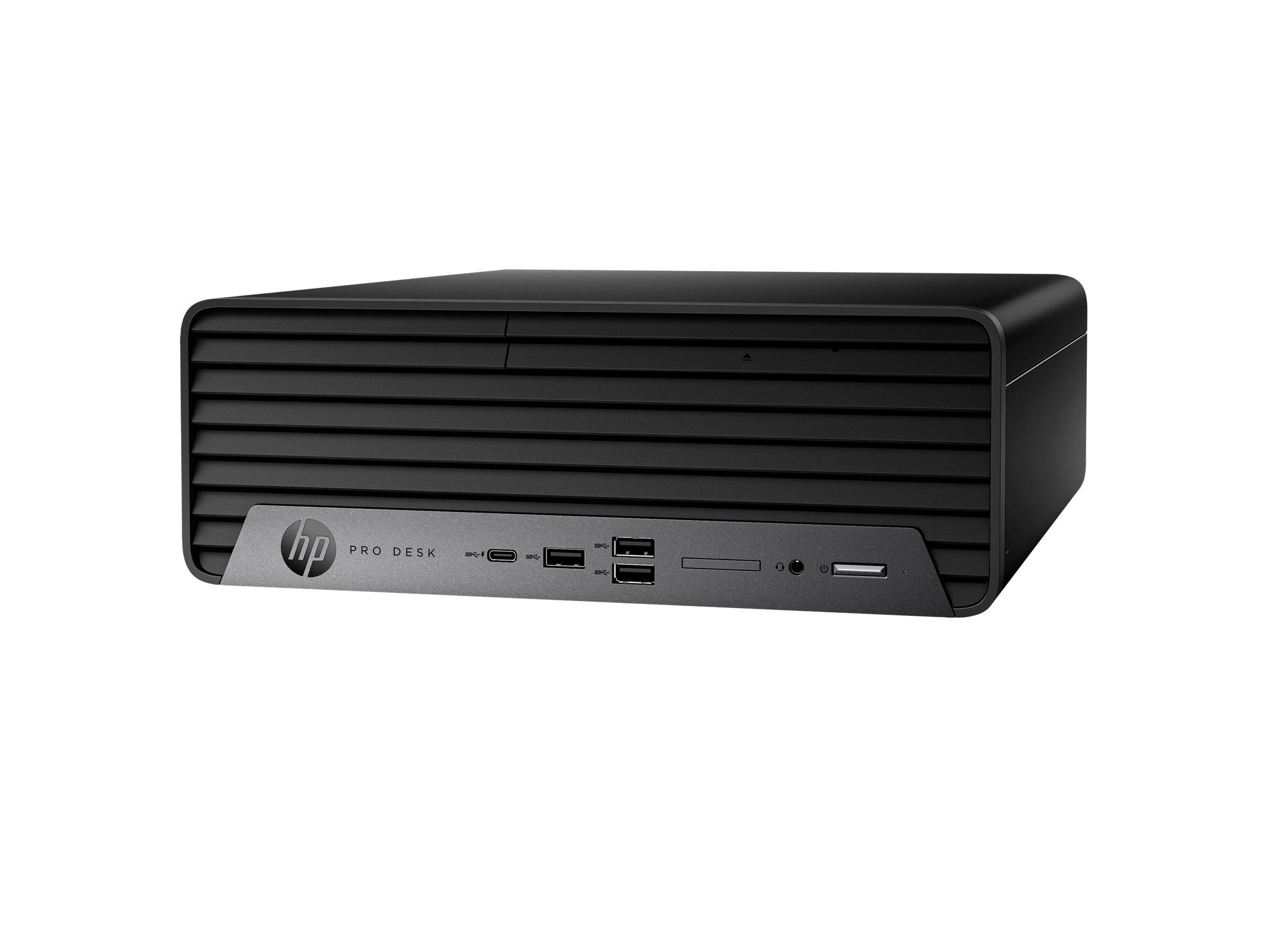

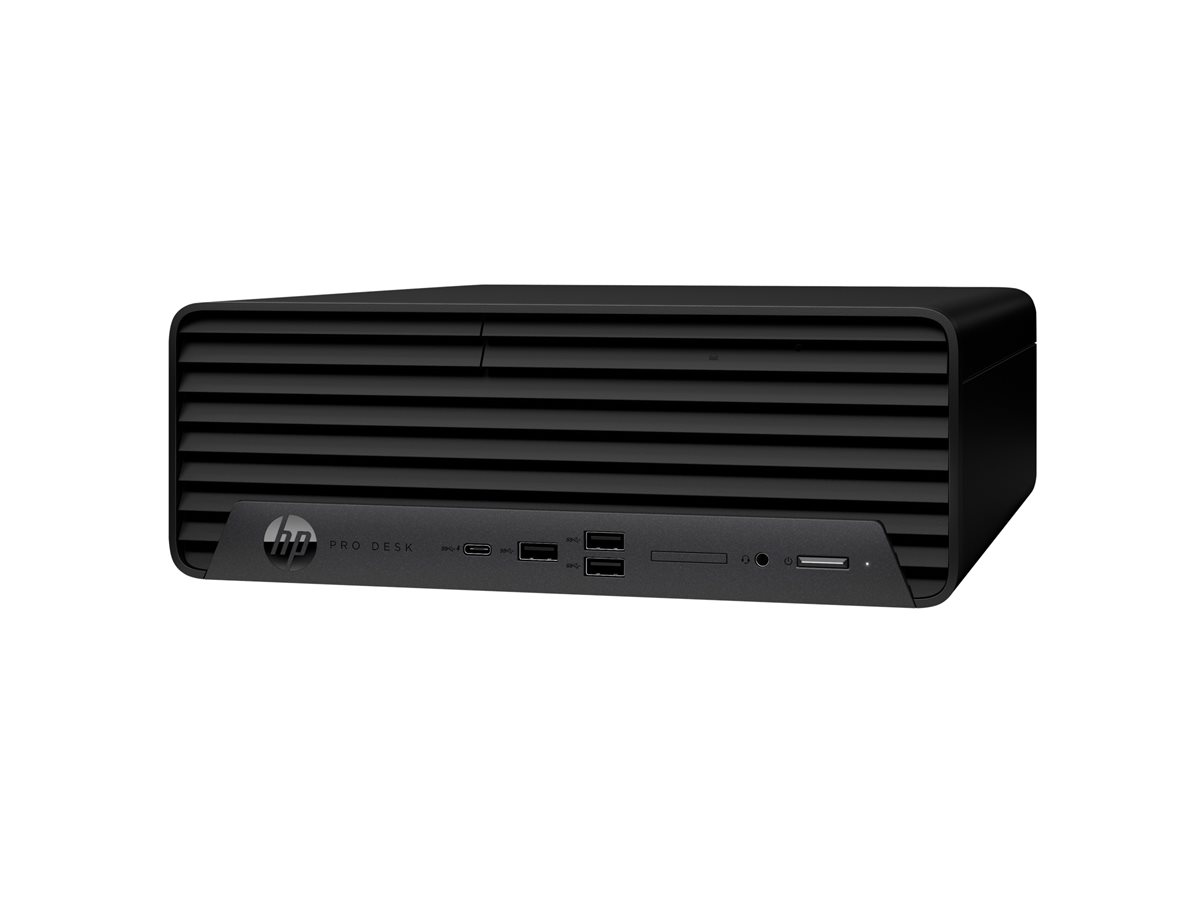

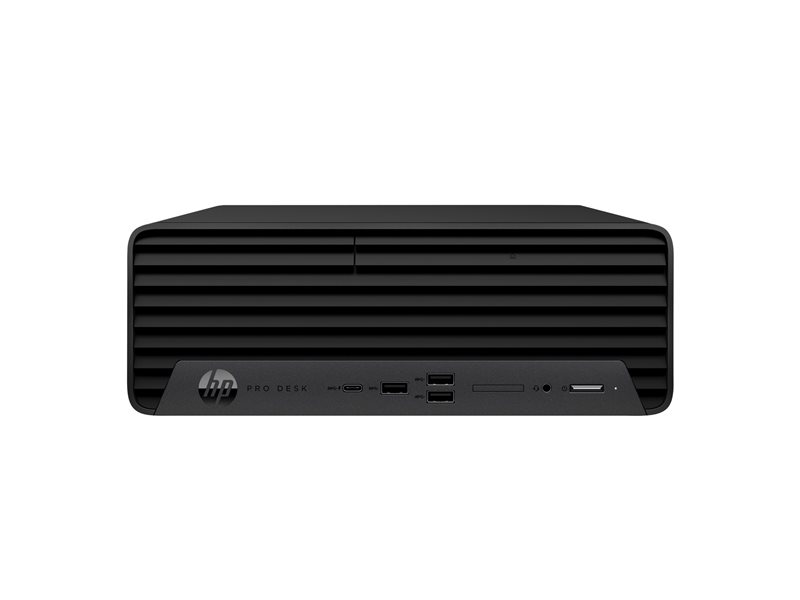

| Product Description | HP Pro 400 G9 - Wolf Pro Security - SFF Core i5 i5-14500 2.6 GHz - 8 GB - SSD 256 GB - US - with HP Wolf Pro Security Edition (1 year) |
| Type | Personal computer - SFF |
| Localization | Language: English / region: United States |
| Processor | Intel Core i5 (14th Gen) i5-14500 / 2.6 GHz (up to 5 GHz, (14-core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 24 MB L3 cache |
| Cache Per Processor | 24 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA |
| Hard Drive | SSD 256 GB - PCI Express - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Audio Output | Stereo |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Privacy Settings, HP Cloud Recovery, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Easy Clean, HP Smart Support, HP Manageability Integration Kit (free download), HP Patch Assistant (free download) |
| Dimensions (WxDxH) | 10.6 in x 3.7 in x 12.1 in |
| Weight | 9.26 lbs |
| Manufacturer Selling Program | HP Smart Buy |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 1 year - on-site |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| General | |
| Type | Personal computer |
| Product Form Factor | SFF |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Bundled with | HP Wolf Pro Security Edition (1 year) |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 4.0 x1 ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (for wireless module) ¦ 1 (total) / 0 (free) x M.2 Card - 2280 (for internal storage) |

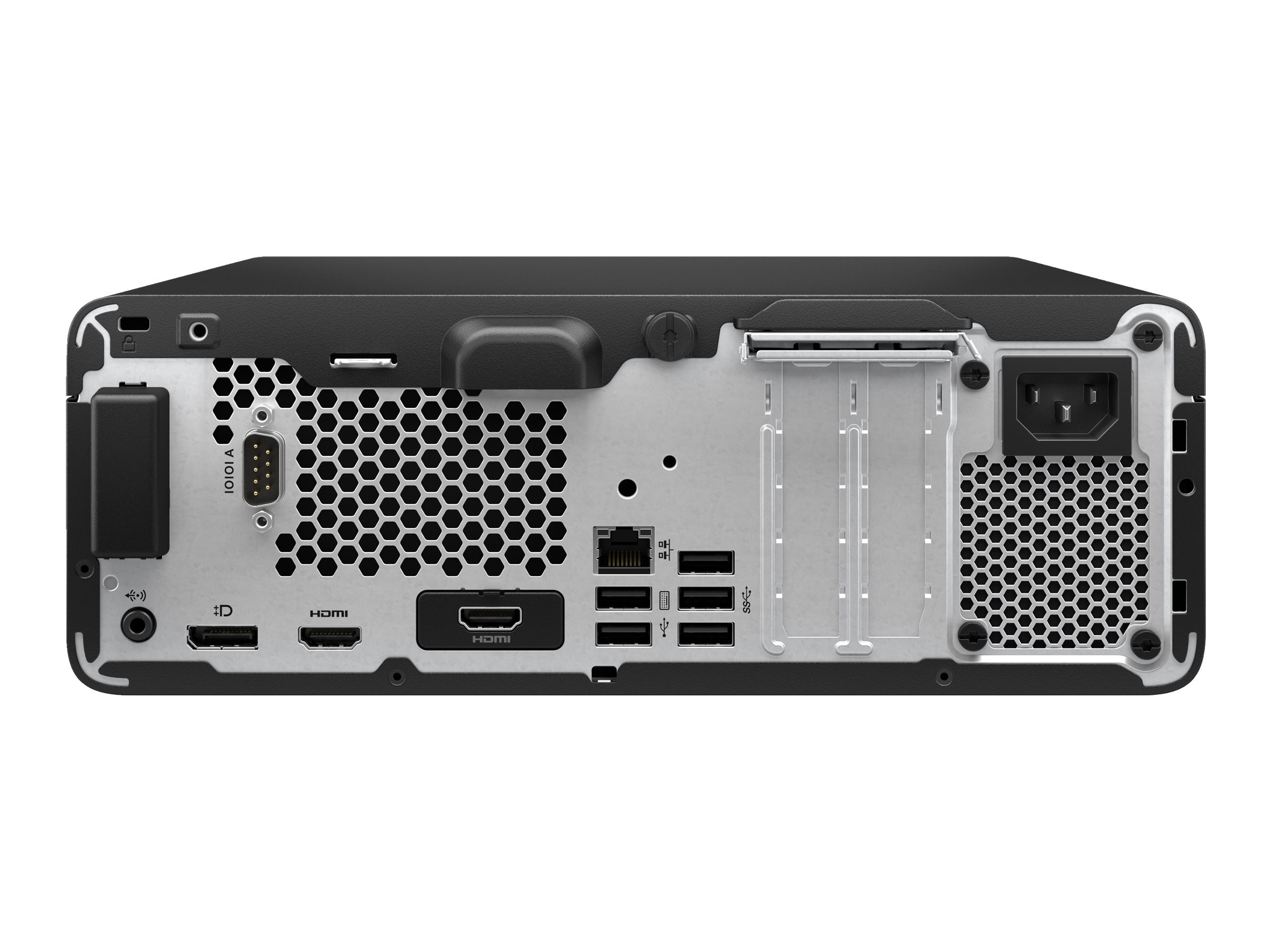

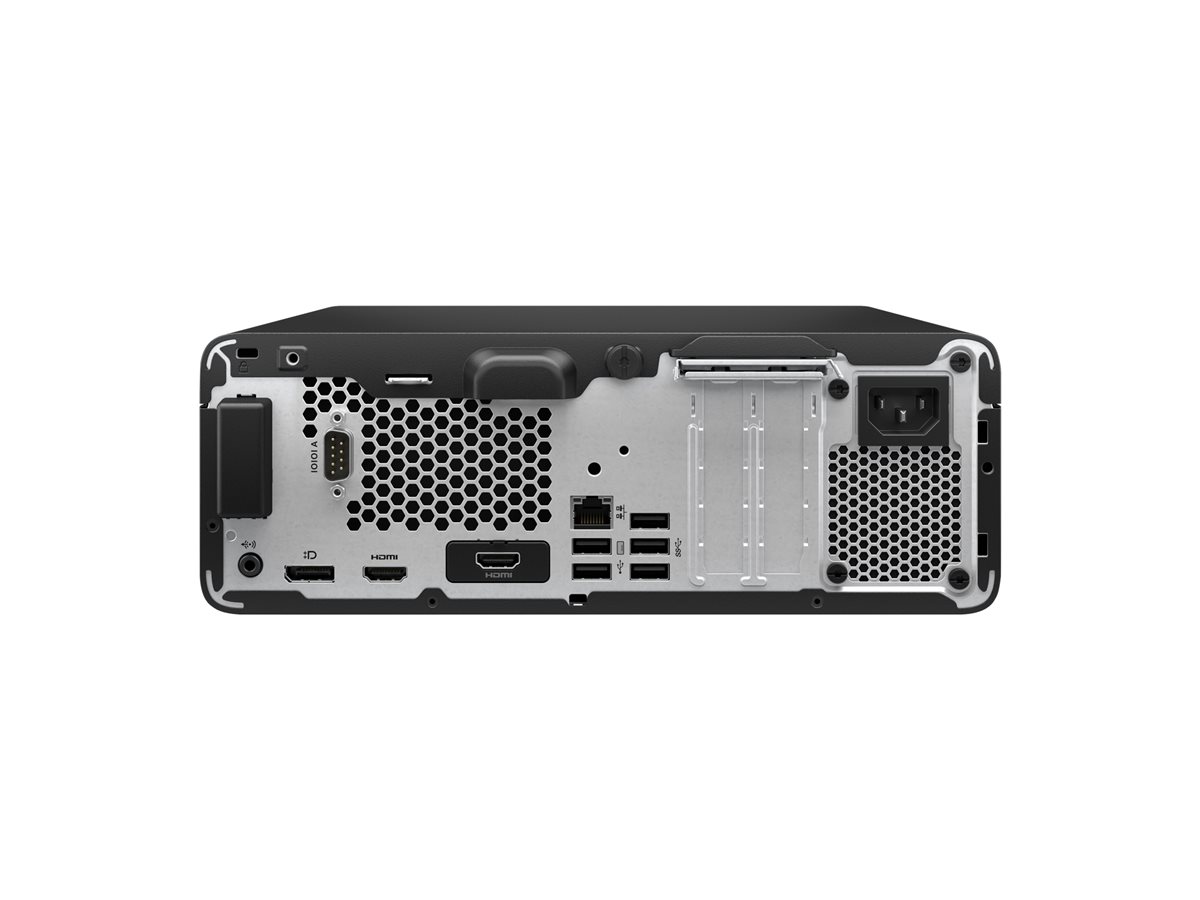

| Interfaces | 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 3 x USB 3.2 Gen 2 (3 in front) ¦ 1 x USB-C 3.2 Gen 2 (1 in front) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x DisplayPort 1.4a (2 rear) ¦ 1 x HDMI (1 rear) ¦ 2 x USB 2.0 (2 rear) (wake functionality) ¦ 3 x USB 3.2 Gen 1 (3 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor, padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, WEEE, KCC Class B, Common Criteria EAL4+, VCCI Class B, low halogen, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, IEEE 1680.1-2018 |
| Manufacturer Selling Program | HP Smart Buy |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Power Provided | 240 Watt |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Channel Qty | 3 |
| Cache Memory | |
| Installed Size | L3 cache - 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 Dynamic Video Memory Technology |
| Video Interfaces | HDMI, DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Privacy Settings, HP Cloud Recovery, HP QuickDrop, HP Client Management Script Library (free download), HP BIOSphere Gen6, myHP, Touchpoint Customizer for Commercial, HP Desktop Support Utilities, HP Image Assistant Gen5 (free download), HP Easy Clean, HP Smart Support, HP Manageability Integration Kit (free download), HP Patch Assistant (free download) |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 10.6 in |
| Depth | 3.7 in |
| Height | 12.1 in |
| Weight | 9.26 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15.5 in |
| Shipping Depth | 19.6 in |
| Shipping Height | 8.1 in |
| Shipping Weight | 15.98 lbs |
| Keyboard | |
| Keyboard Name | HP 320K |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 125 |
| Processor / Chipset | |
| CPU | Intel Core i5 (14th Gen) i5-14500 |
| Clock Speed | 2.6 GHz (P-core) / 1.9 GHz (E-core) |
| Max Turbo Speed | 5 GHz (P-core) / 3.7 GHz (E-core) |
| Number of Cores | 14-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 11.5 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology |
| Chipset Type | Intel Q670 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
