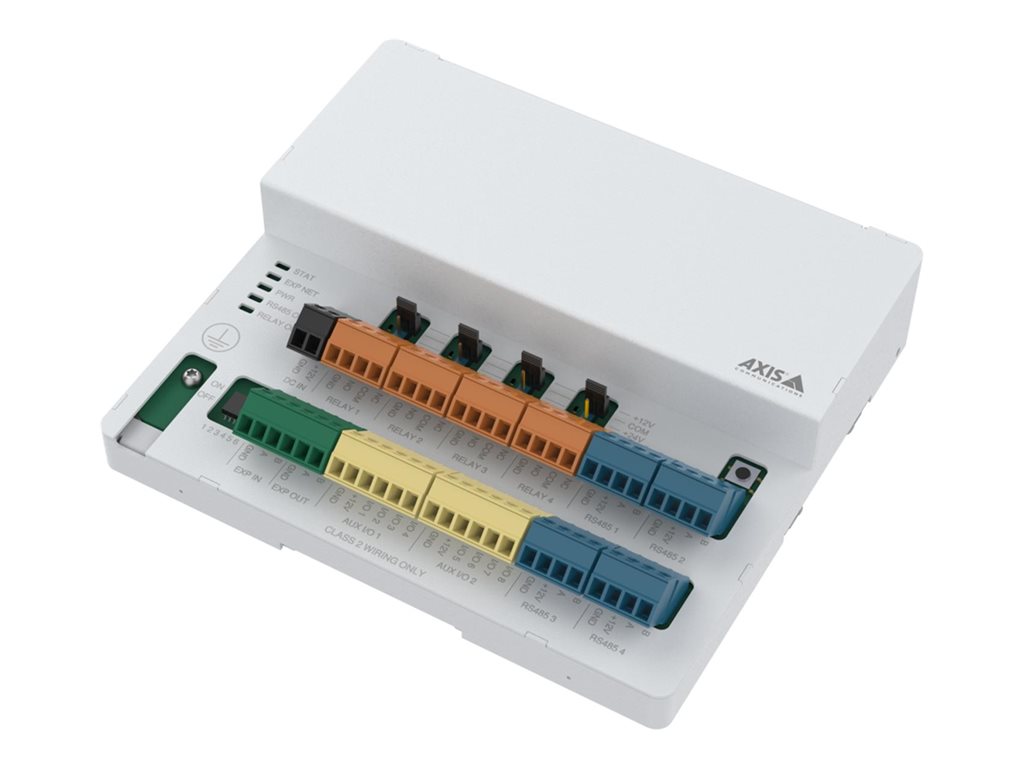

Expansion module - Modbus - white, NCS S 1002-B - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AXIS A9910 - expansion module - TAA Compliant |
| Device Type | Expansion module |
| Form Factor | Wall / DIN rail mountable |
| Dimensions (WxDxH) | 6.2 in x 5.6 in x 1.2 in |
| Weight | 20.63 oz |
| Localization | Argentina, Australia, Japan, India, Korea, Brazil, United Kingdom, United States, Europe |
| Data Link Protocol | Modbus |
| Color | White, NCS S 1002-B |
| Power | DC 12 - 24 V |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | Wall / DIN rail mountable |
| Localization | Argentina, Australia, Japan, India, Korea, Brazil, United Kingdom, United States, Europe |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) |
| Interfaces | 8 x digital input/output - terminal block ¦ 4 x relay ¦ 8 x RS-485 - terminal block ¦ 2 x auxiliary - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | VCCI, EN 61000-6-1, EN 61000-6-2, WEEE, IEC 60068-2-27, IEC 60068-2-6, REACH, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, RCM, UL 294, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, 2011/65/EU, ICES-3(A)/NMB-3(A), EN 50130-4, UKCA, FCC Part 15 Subpart B, UL/cUL, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835 |
| Color | White, NCS S 1002-B |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Modbus |
| Features | Built-in DIP switch, LED status indicators |
| Power | |
| Voltage Required | DC 12 - 24 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 6.2 in |
| Depth | 5.6 in |
| Height | 1.2 in |
| Weight | 20.63 oz |
