Label printer - direct thermal / thermal transfer - - 203 dpi - up to 360 inch/min - USB, LAN, RS232C, USB host
| Main Specifications | |
|---|---|

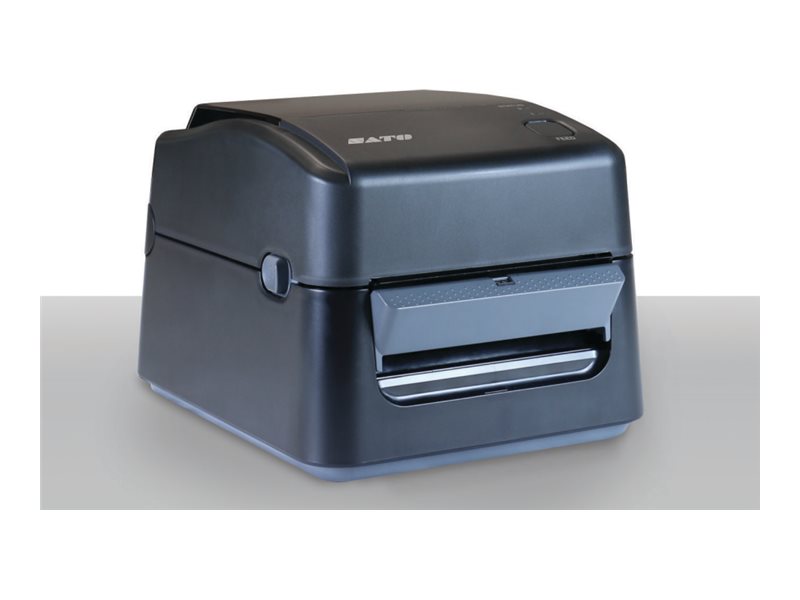

| Product Description | SATO WS4 Series WS408TT - label printer - B/W - direct thermal / thermal transfer |
| Printer Type | Label printer - direct thermal / thermal transfer - B/W |
| Weight | 5.29 lbs |
| Max Media Size | Roll (4.52 in) |
| Min Media Size (Custom) | 0.88 in |
| Max Media Size (Custom) | 4.52 in x 39.33 in |
| Print Speed | Up to 360 inch/min - max speed |
| Max Resolution (B&W) | 203 dpi |
| Interface | USB, LAN, RS232C, USB host |
| RAM Installed (Max) | 32 MB |
| Flash Memory Installed (Max) | 16 MB |
| Language Simulation | SZPL, SDPL, SIPL, SEPL, SBPL |
| Barcodes | Code 93, Code 39, Code 128, NW-7, Codabar, GS1 DataBar, GS1-128, UCC/EAN-128, Interleaved 2 of 5, Industrial 2 of 5, EAN/JAN-8, EAN/JAN-13, Matrix 2 of 5, MSI, Bookland, Postnet, UPC-A / E, PDF417, MicroPDF417, MaxiCode, GS1 DataMatrix, Data Matrix, QR code, Composite |
| Media Type | Tickets, continuous labels, die cut labels, tags, fanfold labels |
| Styles & Effects | Rotated text |
| Features | Transmissive/gap sensor, reflective/black mark sensor, realtime clock |
| Networking | Print server |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 8.7 in x 11 in x 7.4 in |
| General | |
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Expansion / Connectivity | |
| Connections | 1 x RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A |
| Miscellaneous | |
| Compliant Standards | CCC, RoHS, UL, CSA |
| Printer | |
| Print Speed | Up to 360 inch/min - max speed |
| Connectivity Technology | Wired |
| Interface | USB, LAN, RS232C, USB host |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | SZPL, SDPL, SIPL, SEPL, SBPL |
| Styles & Effects | Rotated text |
| Features | Transmissive/gap sensor, reflective/black mark sensor, realtime clock |
| Barcodes | Code 93, Code 39, Code 128, NW-7, Codabar, GS1 DataBar, GS1-128, UCC/EAN-128, Interleaved 2 of 5, Industrial 2 of 5, EAN/JAN-8, EAN/JAN-13, Matrix 2 of 5, MSI, Bookland, Postnet, UPC-A / E, PDF417, MicroPDF417, MaxiCode, GS1 DataMatrix, Data Matrix, QR code, Composite |
| RAM | |
| RAM Installed (Max) | 32 MB |
| Media Handling | |
| Media Type | Tickets, continuous labels, die cut labels, tags, fanfold labels |
| Max Media Size | Roll (4.52 in) |
| Min Media Size (Custom) | 0.88 in |
| Max Media Size (Custom) | 4.52 in x 39.33 in |
| Media Sizes | Roll (0.88 in - 4.53 in) |
| Max Printing Width | 4.25 in |
| Media Thickness Range | 0.0024 in - 0.0075 in |
| Roll Maximum Outer Diameter | 5 in |
| Roll Core Diameter | 1 in, 1.5 in |
| Media Feeders | 1 x manual - 1 roll - Roll (4.52 in) |
| Networking | |
| Networking | Print server |
| Remote Management Protocol | DHCP, HTTP, UDP, TCP/IP, LPR, IPv4 |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 60 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 25 - 85% RH (non-condensing) |
| Flash Memory | |
| Flash Memory | 16 MB |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 11 in |
| Height | 7.4 in |
| Weight | 5.29 lbs |
| Environmental Standards | |
| ENERGY STAR | Yes |
