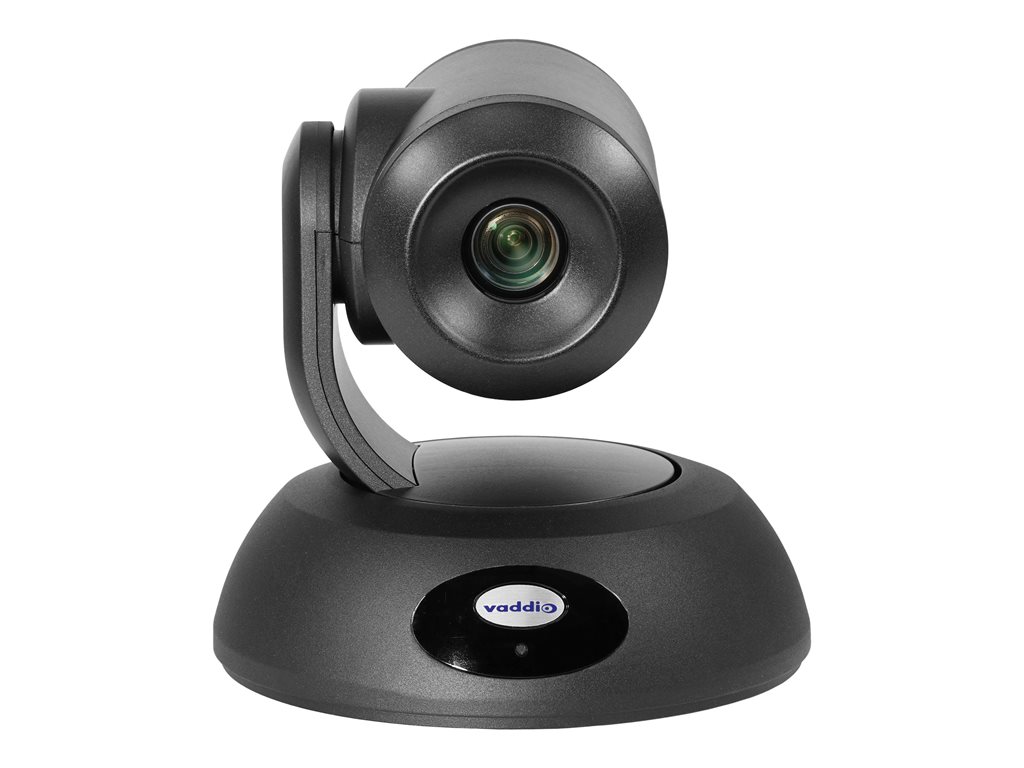

Conference camera - PTZ - color - 8.6 MP - 1080/60p, 1080/30p - motorized - USB 3.0 - MJPEG - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Vaddio RoboSHOT 30E-M - conference camera - TAA Compliant |
| Device Type | Conference camera - pan / tilt / zoom |
| Dimensions (WxDxH) | 7.1 in x 6.8 in x 6.9 in |
| Weight | 4.85 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 30 x |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/60p, 1080/30p |
| Optical Sensor Type | Exmor R CMOS - 1/2.5" - 8.6 MP |
| Minimum Illumination | 1.6 lux |
| Focal Length Control | Motorized zoom |
| Focus Adjustment | Automatic, manual (min distance 3.1 in) |
| Panning Range (degree) | -150 to +150 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | USB 3.0 |
| Software Certification | Certified for Microsoft Teams |
| Cables Included | 1 - USB 3.0 to USB 3.0 type B cable - 6 ft ¦ 1 - CAT5E network cable - 3.3 ft |
| Features | Manual white balance, Backlight Compensation (BLC), Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, 10x IntelliZoom, Enhanced Wide Dynamic Range, invertible, PoE+ support, Spotlight Compensation Mode, 16:9 aspect ratio, silent BLDC direct drive motors, auto / manual focus |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% RH (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.8 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | United Kingdom, Europe |
| Expansion / Connectivity | |
| Ports | USB 3.0 - 9 pin USB Type B ¦ LAN/power - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, PoE+ injector |
| Cables Included | 1 x USB 3.0 to USB 3.0 type B cable - 6 ft ¦ 1 x CAT5E network cable - 3.3 ft |
| Software Certification | Certified for Microsoft Teams |
| TAA Compliant | Yes |
| Compliant Standards | FCC, RoHS, cULus |
| Color | Black |
| Software / System Requirements | |
| Software Included | Vaddio Deployment Tool |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% RH (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | MJPEG |
| Video Modes | 1080/60p, 1080/30p |
| Minimum Illumination | 1.6 lux |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, 10x IntelliZoom, Enhanced Wide Dynamic Range, invertible, PoE+ support, Spotlight Compensation Mode, 16:9 aspect ratio, silent BLDC direct drive motors, auto / manual focus |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 30 x |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.1 in |
| Horizontal Field of View (degree) | 70.2 |
| Image Sensor | |
| Type | 8.6 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Computer Interface | USB 3.0 |
| Panning | |
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
