UPS (rack-mountable / external) - AC 200-240 V - 3000 Watt - 3000 VA - 6 Ah - serial, USB, Ethernet - output connectors: 6 - active PFC - 2U - black - with RMCARD205 network management card
| Main Specifications | |
|---|---|
| Product Description | CyberPower Smart App Sinewave PR3000RTXL2UHVACN - UPS - 3000 Watt - 3000 VA - with RMCARD205 network management card |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable / external |
| Rack Size | 2U |
| Weight | 87.5 lbs |
| Input Voltage | AC 200-240 V |
| Output Voltage | AC 200/208/220/230/240 V + 5% / - 5% |
| Power Capacity | 3000 Watt / 3000 VA |
| Input Connectors | 1 x power NEMA 6-20P |

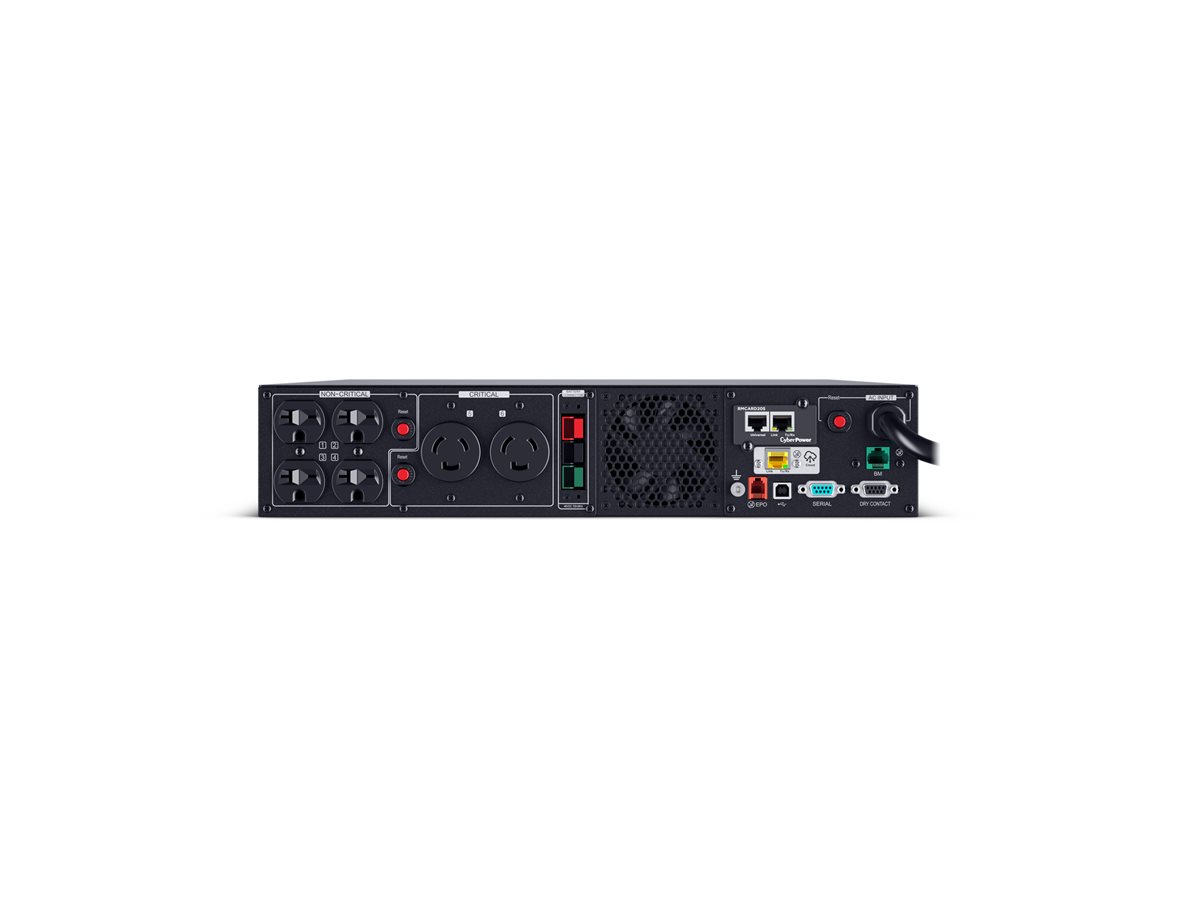

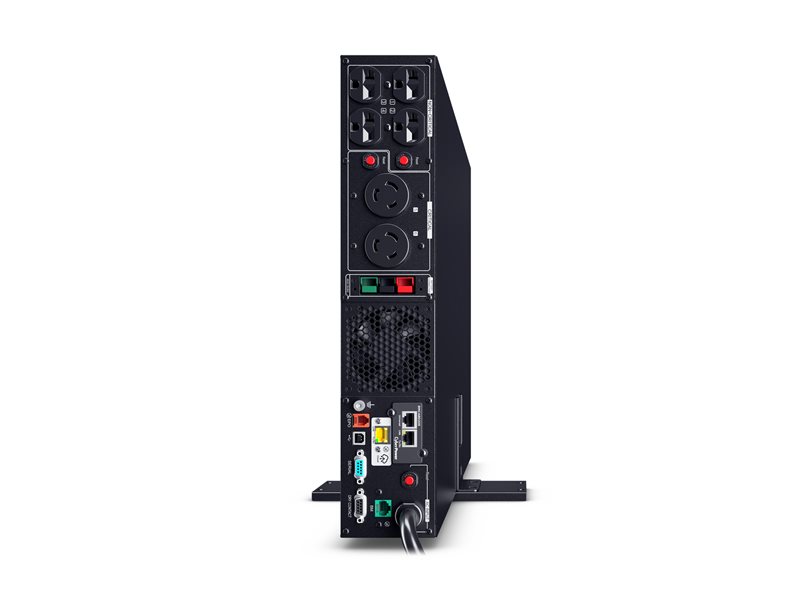

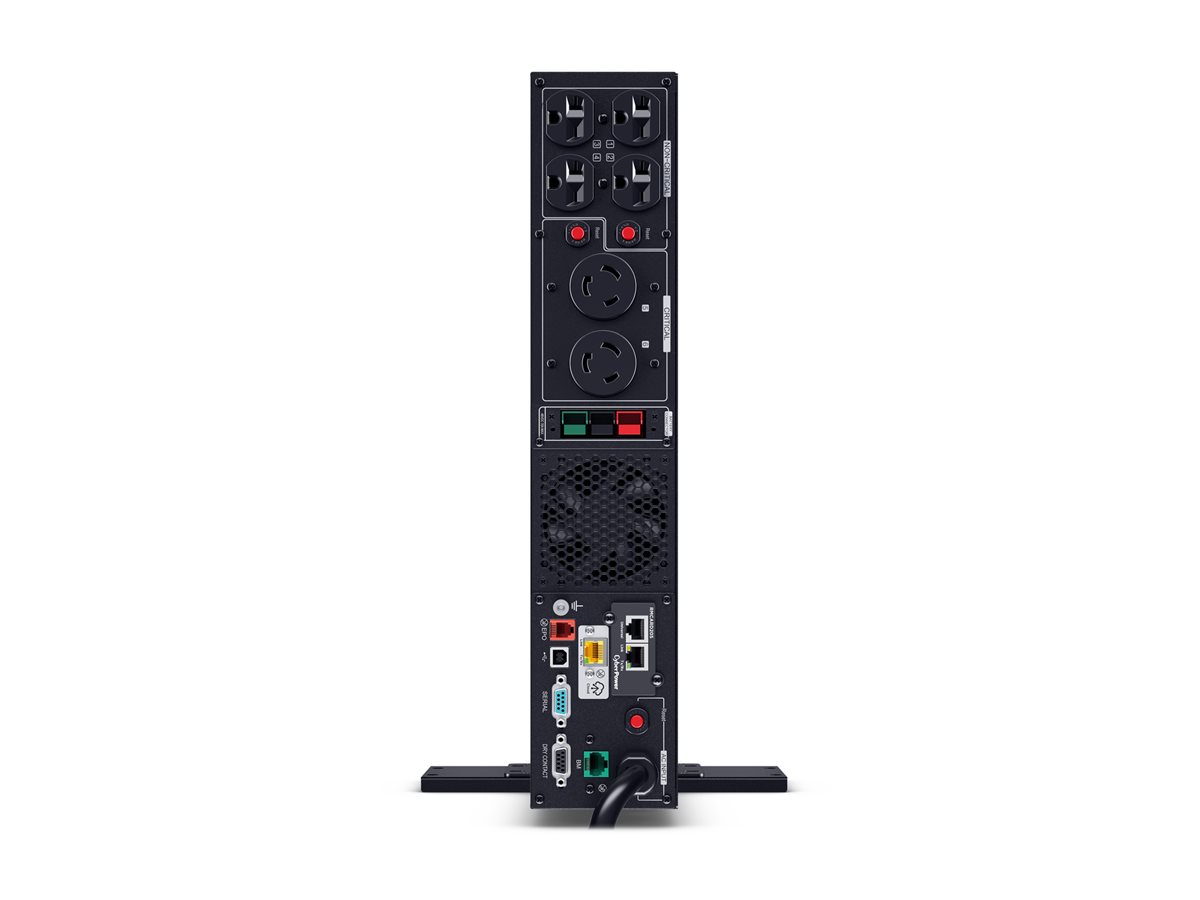

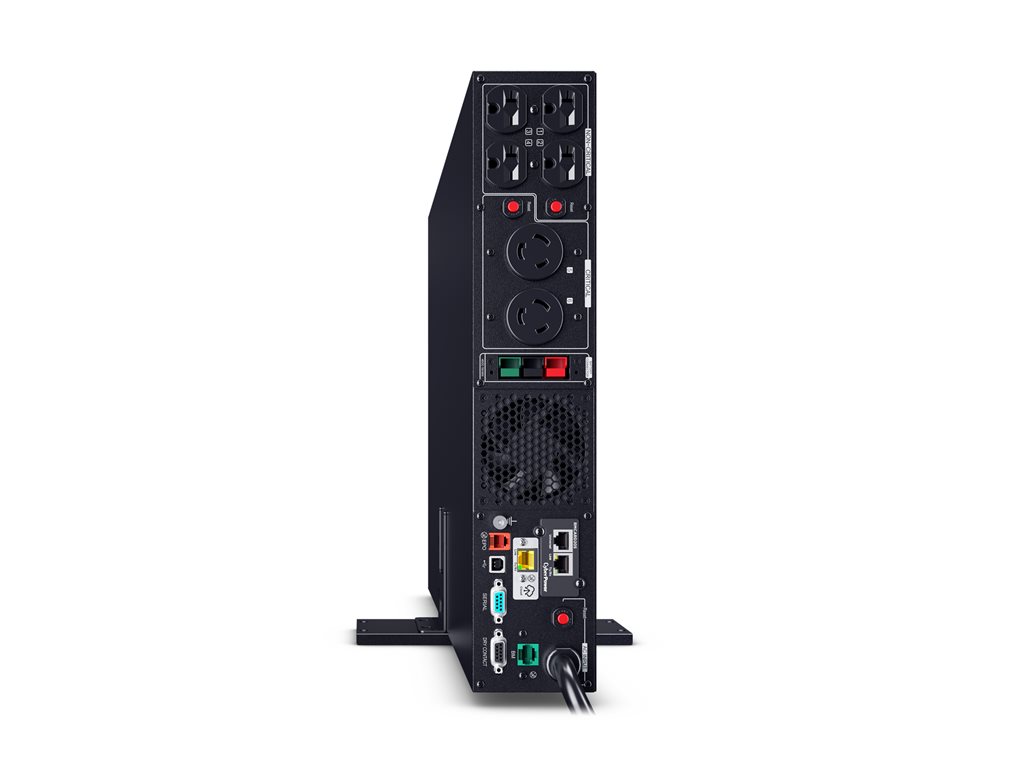

| Output connectors | 4 x power NEMA 6-20R ¦ 2 x power NEMA L6-20R |
| Battery | Lead acid - 6 Ah |
| Batteries Qty | 8 |
| Run Time (Up To) | 3.6 min at full load |
| Networking | Serial, USB, Ethernet |
| Remote Management Protocol | HTTP, SNMP |
| Color | Black |
| Dimensions (WxDxH) | 17.1 in x 24.8 in x 3.4 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| Bundled with | RMCARD205 network management card |
| General | |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
| Bundled with | RMCARD205 network management card |
| Expansion / Connectivity | |
| Interfaces | 1 x serial ¦ 3 x management (Ethernet) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x dry contact |
| Expansion Slots | 1 (total) / 1 (free) x SNMP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft ¦ USB cable - external ¦ Emergency power off cable - external |
| Equipment Protection Value | 400000 US Dollars |
| Features | Tool-less front panel, metal housing, emergency power off, GreenPower UPS Bypass Technology, Automatic Voltage Regulation (AVR), Battery Equalization Technology, Fast Charge technology, rotatable LCD panel, Enhanced Battery Management (EBM), user-replaceable batteries, 20A fuse, twist lock plug, audible alarm, Human Interface Device (HID) support, LED indicators, Impedance Tolerant EMI/RFI filtering |
| Compliant Standards | UL 1778, VCCI, FCC Class A certified, CSA C22.2 No. 107.3, RoHS |
| Networking | |
| Remote Management Interface | Serial, USB, Ethernet |
| Remote Management Protocol | HTTP, SNMP |
| Software / System Requirements | |
| Software Included | PowerPanel Business |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 57.5 dB |
| Battery | |
| Quantity | 8 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 6 Ah |
| Run Time (Up To) | 3.6 min at full load ¦ 10.7 min at half load |
| Recharge Time | 3 hours |
| Transfer Time | 13 ms |
| Features | Sealed, hot-swappable |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 200-240 V |
| Input Voltage Range | AC 131 - 302 V |
| Input Voltage Range (Adjustable) | AC 151 - 302 V |
| Frequency Provided | 50/60 Hz ± 1% |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power NEMA 6-20P |
| Power Output Connectors Details | 4 x power NEMA 6-20R ¦ 2 x power NEMA L6-20R |
| Output Voltage | AC 200/208/220/230/240 V + 5% / - 5% - 50/60 Hz |
| Power Capacity | 3000 Watt / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 2430 Joules |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 1.0 |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 24.8 in |
| Height | 3.4 in |
| Weight | 87.5 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.6 in |
| Shipping Depth | 30.1 in |
| Shipping Height | 10.8 in |
| Shipping Weight | 106.99 lbs |
| Sustainability Information | |
| ENERGY STAR | Yes |
