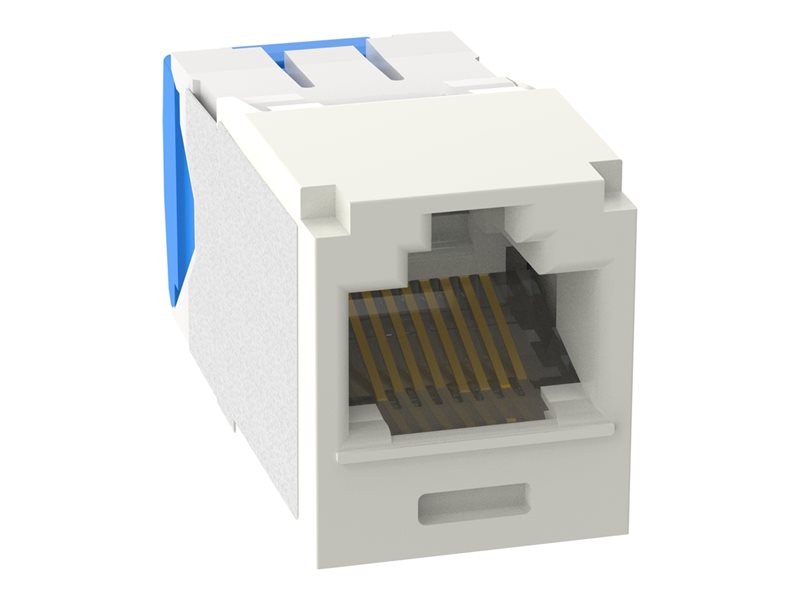

Modular insert - TG, corrosion resistant - CAT 6a - UTP - RJ-45 - off white - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Panduit MINI-COM modular insert - TG, corrosion resistant - TAA Compliant |
| Product Type | Modular insert - CAT 6a - RJ-45 - TG, corrosion resistant |
| Dimensions (WxDxH) | 0.6 in x 1.5 in x 0.7 in |
| Product Material | Polycarbonate |
| Color | Off white |
| Port Qty | 1 port |
| Wiring Scheme | T568A/B |
| Compliant Standards | UL 1863, UL 2043, RoHS, ANSI/TIA-568.2-D, IEC 60603-7, ISO 11801, ANSI/TIA-1096-A, CSA C22.2, IEC 60512-99-002 / IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt |
| TAA Compliant | Yes |
| General | |
| Product Type | Modular insert - CAT 6a - TG, corrosion resistant |
| Product Material | Polycarbonate |
| Width | 0.6 in |
| Depth | 1.5 in |
| Height | 0.7 in |
| Enclosure Color | Off white |
| Miscellaneous | |
| Features | Corrosion-resistant, MaTriX Technology |
| Compliant Standards | UL 1863, UL 2043, RoHS, ANSI/TIA-568.2-D, IEC 60603-7, ISO 11801, ANSI/TIA-1096-A, CSA C22.2, IEC 60512-99-002 |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 167 °F |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Pair Qty | 4 |
| Termination Type | TG |
| Technology | Unshielded twisted pair (UTP) |
| Wiring Scheme | T568A/B |
| Features | 22-26 AWG, phosphor bronze contacts |
| Compliant Standards | IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt |
| Connector Provided | 1 x RJ-45 female |
