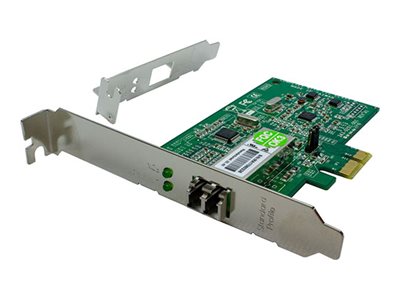

Network adapter - PCIe 1.1 low profile - 100Base-FX - 1300 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix N-FXE-02B Series - network adapter - PCIe 1.1 - 100Base-FX - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | Plug-in module - low profile |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| PCI Specification Revision | PCIe 1.1 |
| Ports | 100Base-FX |
| Dimensions (WxDxH) | 4.3 in x 2.7 in |
| Weight | 15.87 oz |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | 100Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Performance | Bandwidth (full duplex): 200 Mbps |
| Network / Transport Protocol | IPv6 |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| System Requirements | Novell NetWare 5.x, Novell NetWare 6.x, Microsoft Windows Server 2003, Linux 2.4.x, Linux 2.6.x, Microsoft Windows Vista / XP, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 7 / 8 / 10 / 11 |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in module - low profile |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| PCI Specification Revision | PCIe 1.1 |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-FX - LC multi-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC Class B certified, RoHS, EMI, NDAA |
| TAA Compliant | Yes |
| Networking | |
| Ports | 100Base-FX |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | Fast Ethernet |
| Max Transfer Distance | 1.2 miles |
| Performance | Bandwidth (full duplex): 200 Mbps |
| Optical Wave Length | 1300 nm |
| Network / Transport Protocol | IPv6 |
| Status Indicators | Port duplex mode, link/activity |
| Features | Flow control, ACPI support, WOL, Jumbo Frames support, PXE support, UEFI support, TSO, MSI-X, VLAN filtering, MSI, 13 dB link budget |
| Compliant Standards | IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Software / System Requirements | |
| OS Required | Novell NetWare 5.x, Novell NetWare 6.x, Microsoft Windows Server 2003, Linux 2.4.x, Linux 2.6.x, Microsoft Windows Vista / XP, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 7 / 8 / 10 / 11 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Depth | 4.3 in |
| Height | 2.7 in |
| Weight | 15.87 oz |
