180-degree hinge design - AMD Ryzen 5 - 7535U / up to 4.55 GHz - Win 10 IoT Enterprise - Radeon 660M - 16 GB RAM - 256 GB SSD NVMe - 14" IPS 1920 x 1200 - Gigabit Ethernet - NFC, Wi-Fi 6E, Bluetooth - pike silver - kbd: US - with HP 3 years Return to Depot Hardware Support for Notebooks
| Main Specifications | |
|---|---|
| Product Description | HP Elite Mobile Thin Client mt645 G8 - 14" - AMD Ryzen 5 - 7535U - 16 GB RAM - 256 GB SSD - US |
| Product Type | Mobile thin client - 180-degree hinge design |
| Operating System | Win 10 IoT Enterprise - English |
| Processor | AMD Ryzen 5 7535U / 2.9 GHz, up to 4.55 GHz / 16 MB Cache |
| Memory | 16 GB DDR5 (1 x 16 GB) |
| Storage | 256 GB SSD - NVMe |
| Display | 14" WLED 1920 x 1200 / WUXGA @ 60 Hz |
| Graphics | AMD Radeon 660M |
| Input Device | Keyboard, ClickPad |
| Keyboard | US |
| Keyboard Backlight | Yes |
| Integrated Webcam | Yes |
| Networking | NFC, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, Gigabit Ethernet |
| Battery | 3-cell |
| Features | Hall sensor, HP Tamper Lock, thermal sensor |
| Security | Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader, smart card reader |
| Color | Pike silver |
| Dimensions (WxDxH) | 12.5 in x 8.8 in x 0.7 in |
| Weight | 3.06 lbs |
| Localization | Language: English / region: United States |
| Environmental Standards | ENERGY STAR Qualified |
| Bundled Services | HP 3 years Return to Depot Hardware Support for Notebooks |
| General | |
| Product Type | Mobile thin client - 180-degree hinge design |
| Operating System | Windows 10 IoT Enterprise - English |
| Memory | |
| RAM | 16 GB (1 x 16 GB) |
| Max RAM Supported | 16 GB |
| Technology | DDR5 SDRAM |
| Speed | 2400 MHz |
| Rated Speed | 2400 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots Qty | 2 |
| Empty Slots | 1 |
| Manufacturer Warranty | |
| Bundled Services | HP 3 years Return to Depot Hardware Support for Notebooks |
| Miscellaneous | |
| Color | Pike silver |
| Integrated Options | Hall sensor, HP Tamper Lock, thermal sensor |
| Security | Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader, smart card reader |
| Features | HP Fast Charge |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Security Slot Type | Kensington nano security slot |
| Included Accessories | HP 65W USB-C AC Adapter |
| Compliant Standards | CSA, VCCI, BSMI, GS, CCC, FCC, RoHS, KCC, CISPR, ICES, Common Criteria EAL4+, KC, SRRC, NCC, low halogen, UL 62368-1, Taiwan BSMI RoHS, UL/CSA/EN 62368-1, TEC, KES, Low Blue Light certified (LBL), Ukraine NSoC, EAEU Compliance, Saudi Arabian Compliance, China SRRC, China CCC, Ukraine TEC |
| Localization | Language: English / region: United States |
| Storage | |
| Main Storage | 256 GB SSD PCIe - NVM Express (NVMe) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Shock Tolerance (operating) | 40 g @ 2 ms half-sine |
| Shock Tolerance (non-operating) | 240 g @ 2 ms half-sine |
| Vibration Tolerance (operating) | 1.043 g @ RMS (random) |
| Vibration Tolerance (non-operating) | 3.5 g @ RMS (random) |
| Software | |
| Software Included | Microsoft System Center Configuration Manager Standard Server, HP Device Manager, CyberLink Media Suite, HP ThinUpdate, HP Easy Shell, HP USB Port Manager, HP Connection Optimizer, HP Write Manager, HP System Information, HP TPM Configuration Utility, HEVC CODEC, HP Platform Certificate, HP Auto Logon, TTWIN, HP Sure Start |
| Battery | |
| Technology | 3-cell lithium polymer |
| Capacity | 56 Wh |
| Display | |
| Type | 14" - IPS |
| LCD Backlight Technology | WLED backlight |
| Resolution | 1920 x 1200 (WUXGA) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen | Yes |
| Image Brightness | 300 cd/m² |
| Color Gamut | 45% NTSC |
| Features | WUXGA ultra wide-viewing angle (UWVA) anti-glare eDP, narrow bezel bent |
| Keyboard Name | HP Standard Keyboard |
| Communications | |
| Wireless | NFC, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Bluetooth Class | Class 2 |
| Wireless Controller | Realtek RTL8852CE - PCI Express Mini Card (M.2) |
| Network Interface | Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Compliant Standards | IEEE 802.11d, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11k |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 12.5 in x 8.8 in x 0.7 in |
| Weight | 3.06 lbs |
| Processor / Chipset | |
| CPU | AMD Ryzen 5 7535U / 2.9 GHz |
| Max Turbo Speed | 4.55 GHz |
| Number of Cores | 6-core |
| Cache | L3 - 16 MB |
| Audio & Video | |
| Graphics Processor | AMD Radeon 660M |
| Video System Features | AMD FreeSync |
| Camera | Yes |
| Resolution | 5 Megapixel |
| Camera Features | Privacy shutter |
| Sound | Dual stereo speakers, dual array microphone |
| Codec | Realtek ALC3247 |
| Audio Features | Output: discrete amplifiers, Poly Studio |
| Input | |
| Type | Keyboard, ClickPad |
| Keyboard Backlight | Yes |
| Keyboard Layout | US |
| Features | Multi-touch clickpad, gesture function, precision touchpad, spill-resistant, DuraKeys |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 Watt, 5 / 9 / 12 / 15 / 20 V, 8 A |
| Connections & Expansion | |

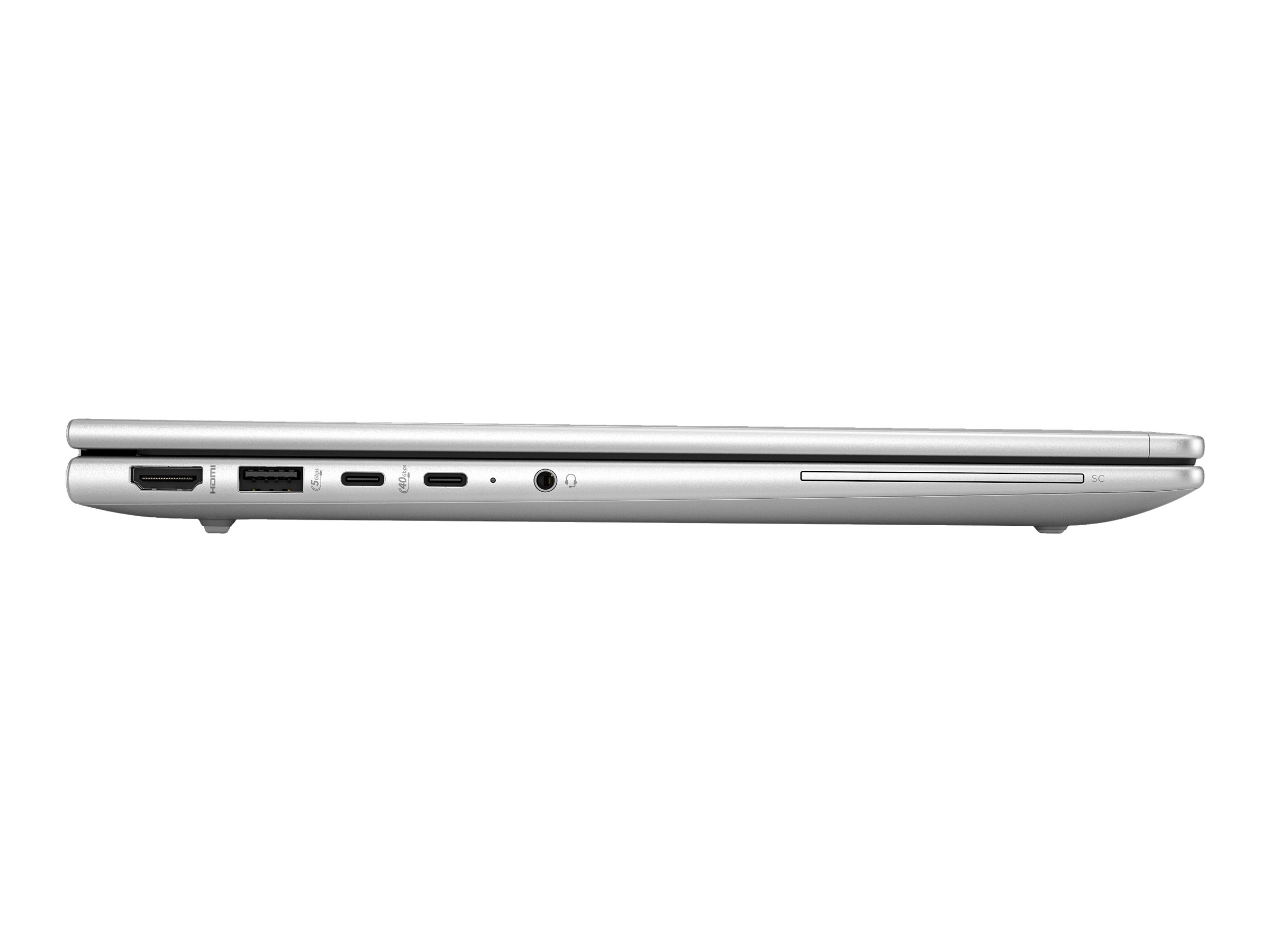

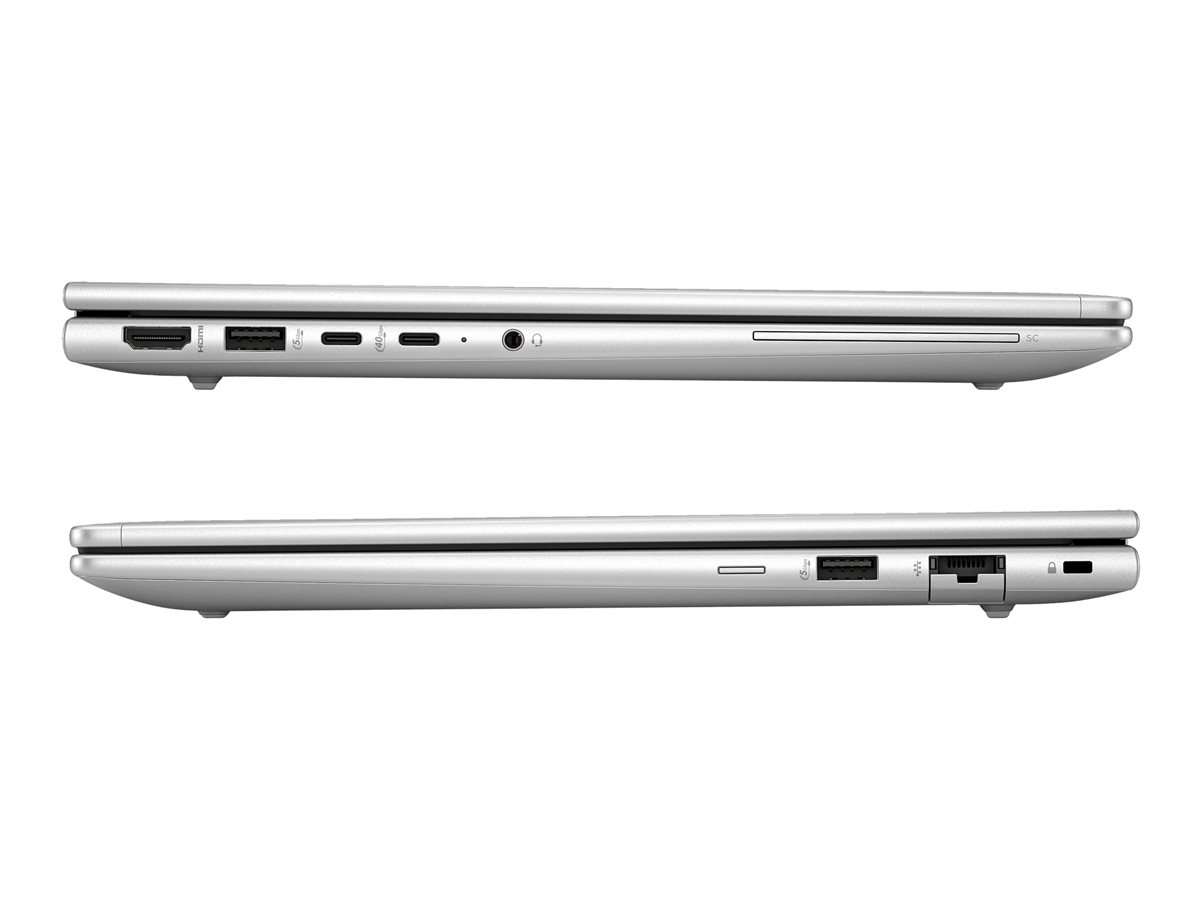

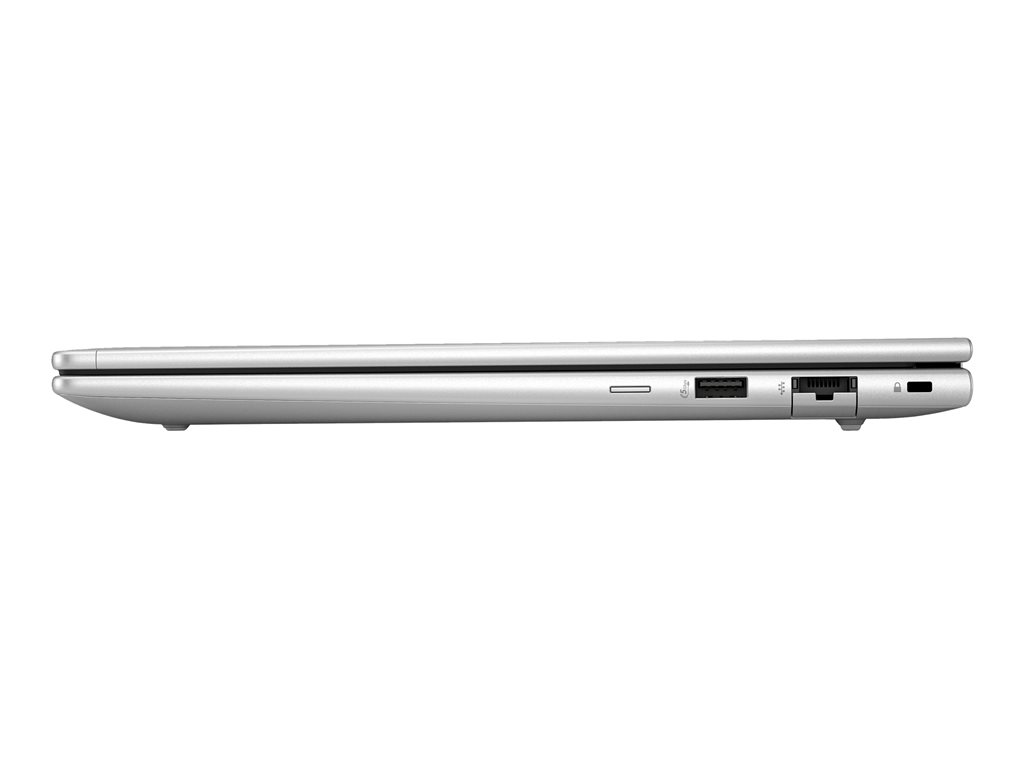

| Interfaces Details | Headphone/microphone combo jack ¦ LAN (RJ-45) ¦ 2 x USB4/DisplayPort 1.4 (Power Delivery) ¦ HDMI ¦ USB 3.2 Gen 1 (charging) ¦ USB 3.2 Gen 1 |
| Sustainability Information | |
| TCO Certified | - |
| ENERGY STAR Certified | Yes |
