177-degree hinge design - Intel Core Ultra 5 - 125U / up to 4.3 GHz - vPro Essentials - Win 11 Pro - Intel Graphics - 32 GB RAM - 512 GB SSD NVMe - 16" IPS 1920 x 1200 - Gigabit Ethernet - Wi-Fi 6E, Bluetooth - pike silver - kbd: US
| Main Specifications | |
|---|---|
| Product Description | HP EliteBook 660 G11 Notebook - AI Ready - 16" - Intel Core Ultra 5 - 125U - vPro Essentials - 32 GB RAM - 512 GB SSD - US |
| Product Type | Notebook - AI Ready - 177-degree hinge design |
| Operating System | Win 11 Pro - English |
| Platform Technology | Intel vPro Essentials |
| Processor | Intel Core Ultra 5 (Series 1) - 125U up to 4.3 GHz / 12 MB Cache |
| Memory | 32 GB DDR5 (2 x 16 GB) |
| Storage | 512 GB SSD - NVMe |
| Display | 16" WLED 1920 x 1200 / WUXGA @ 60 Hz |
| Graphics | Intel Graphics |
| Input Device | ClickPad |
| Keyboard | US |
| Keyboard Backlight | Yes |
| Numeric Keypad | Yes |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, Gigabit Ethernet |
| Battery | 3-cell |
| Features | Hall sensor, HP Tamper Lock, thermal sensor |
| Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Pike silver |
| Dimensions (WxDxH) | 14.1 in x 9.9 in x 0.7 in |
| Weight | 3.84 lbs |
| Localization | Language: English / region: United States |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold, EPEAT Climate+ |
| General | |
| Product Type | Notebook - AI Ready - 177-degree hinge design |
| Operating System | Windows 11 Pro - English |
| Memory | |
| RAM | 32 GB (2 x 16 GB) |
| Max RAM Supported | 64 GB |
| Technology | DDR5 SDRAM - non-ECC |
| Speed | 2800 MHz |
| Rated Speed | 2800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots Qty | 2 |
| Empty Slots | 0 |
| Miscellaneous | |
| Color | Pike silver |
| Integrated Options | Hall sensor, HP Tamper Lock, thermal sensor |
| Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Features | BIOS Absolute Persistence, HP Automatic Drive Lock, HP DriveLock, HP Fast Charge, BIOS Update via Network, MIL-STD-810H tested, Secured-core PC enabled |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington nano security slot |
| Included Accessories | HP 65W USB-C AC Adapter |
| Compliant Standards | CSA, VCCI, BSMI, GS, ISO 9241, CCC, FIPS 140-2 Level 2, FCC, RoHS, KCC, CISPR, ICES, KC, SRRC, NCC, low halogen, UL 62368-1, TEC, KES, Low Blue Light certified (LBL), Ukraine NSoC, EAEU Compliance, Saudi Arabian Compliance, Common Criteria EAL4+ |
| Localization | Language: English / region: United States |
| Storage | |
| Main Storage | 512 GB SSD PCIe - NVM Express (NVMe) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Shock Tolerance (operating) | 40 g @ 2 ms half-sine |
| Shock Tolerance (non-operating) | 240 g @ 2 ms half-sine |
| Vibration Tolerance (operating) | 1.043 g @ RMS (random) |
| Vibration Tolerance (non-operating) | 3.5 g @ RMS (random) |
| Software | |
| Software Included | HP Client Security Manager, HP BIOSphere Gen6, HP Secure Erase, HP Wake on WLAN, Windows Hello, HP Sure Admin, HP Sure Click, HP Sure Recover Gen6, HP Sure Run Gen5, HP Sure Sense, HP Sure Start Gen7, HP Client Catalog (free download), HP Cloud Recovery, HP Connect for Microsoft Endpoint Manager, HP Client Management Script Library (free download), HP Drive Packs (free download), HP Image Assistant (free download), HP Manageability Integration Kit (free download), HP Patch Assistant (free download), HP Power Manager, HP Privacy Settings, HP Services Scan, HP Smart Support, HP Support Assistant, HSA Fusion for Commercial, HSA Telemetry for Commercial, myHP, HP Connection Optimizer, HP Easy Clean, HP Easy Clean Keyboard Driver, HP MAC Address Manager, Copilot (key), HP PC Hardware Diagnostics UEFI, HP PC Hardware Diagnostics Windows, Battery Health Manager |
| Battery | |
| Technology | 3-cell lithium polymer |
| Capacity | 56.04 Wh |
| Display | |
| Type | 16" - IPS |
| LCD Backlight Technology | WLED backlight |
| Resolution | 1920 x 1200 (WUXGA) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 300 cd/m² |
| Color Gamut | 45% NTSC |
| Features | Narrow bezel bent, WUXGA ultra wide-viewing angle (UWVA) anti-glare eDP, 90.6% screen-to-body ratio |
| Keyboard Name | HP Premium |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Bluetooth Class | Class 2 |
| Wireless Controller | Intel Wi-Fi 6E AX 211 - PCI Express Mini Card (M.2) |
| Network Interface | Gigabit Ethernet |
| Ethernet Controller | Intel I219-V |
| Features | Miracast, dual stream (2x2) |
| Compliant Standards | IEEE 802.11d, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11e, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 14.1 in x 9.9 in x 0.7 in |
| Weight | 3.84 lbs |
| Shipping Dimensions (WxDxH) / Weight | 2.7 in x 19 in x 12 in |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 1) 125U |
| Max Turbo Speed | 4.3 GHz |
| Number of Cores | 12-core |
| Cache | L3 - 12 MB |
| Platform Technology | Intel vPro Essentials |
| Features | Intel Turbo Boost Technology |
| Audio & Video | |
| Graphics Processor | Intel Graphics |
| Camera | Yes |
| Resolution | 5 Megapixel |
| Camera Features | Privacy shutter, IR camera |
| Sound | Dual stereo speakers, dual array microphone |
| Codec | Realtek ALC3247 |
| Audio Features | Output: discrete amplifiers, Poly Studio |
| Input | |
| Type | Keyboard, ClickPad |
| Keyboard Backlight | Yes |
| Keyboard Layout | US |
| Numeric Keypad | Yes |
| Features | Volume control, multi-touch clickpad, gesture function, precision touchpad, spill-resistant |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 Watt, 5 / 9 / 12 / 15 / 20 V, 8 A |
| Connections & Expansion | |

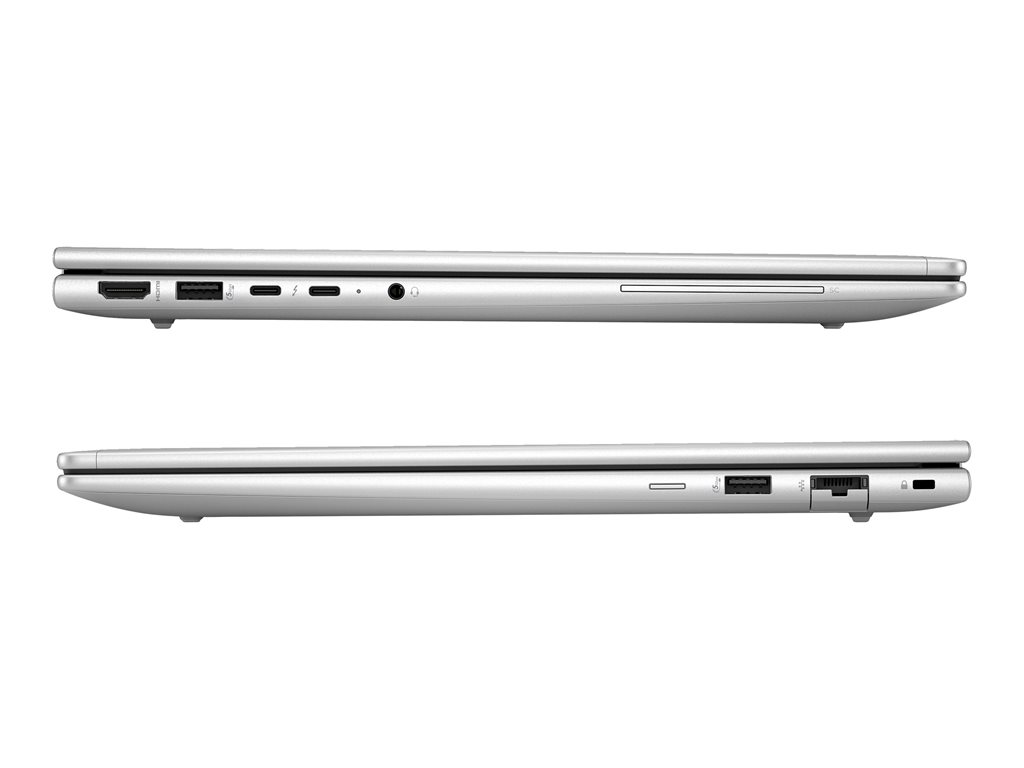

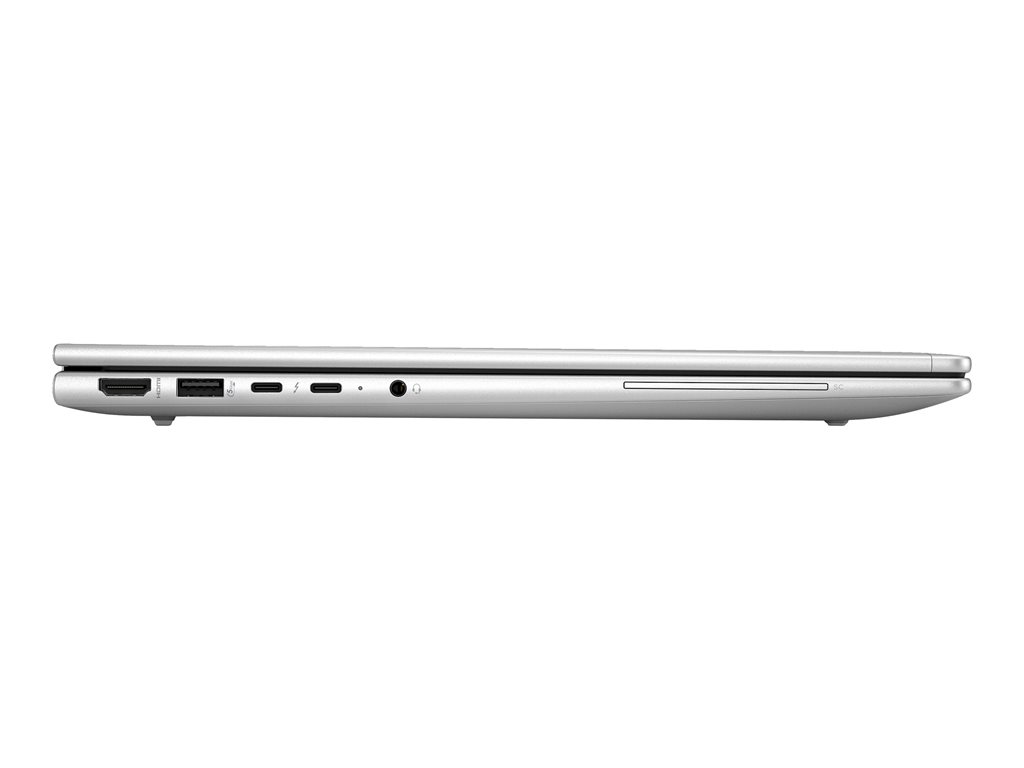

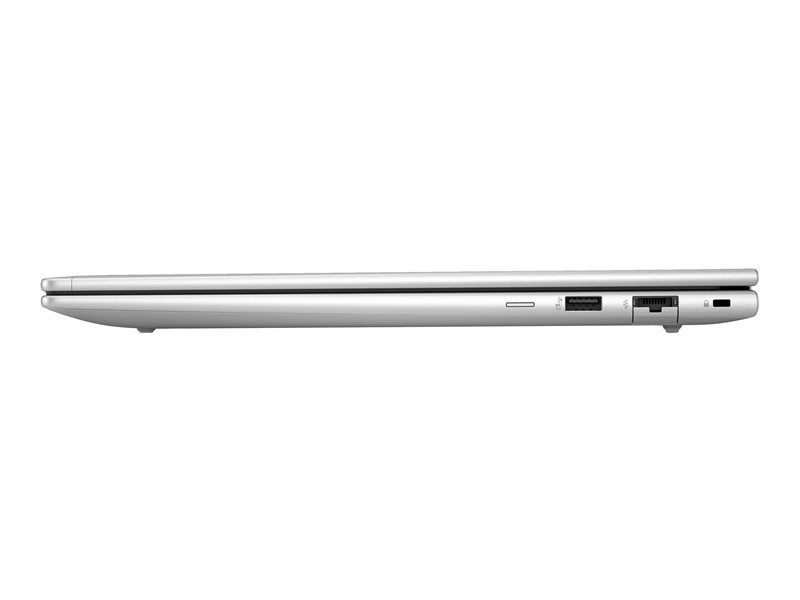

| Interfaces Details | 2 x USB4 (supports Thunderbolt 4, DisplayPort 1.4 Alt Mode) (Power Delivery) ¦ USB 3.2 Gen 1 (charging) ¦ USB 3.2 Gen 1 (powered) ¦ HDMI ¦ Headphone/microphone combo jack ¦ LAN (RJ-45) |
| Sustainability Information | |
| TCO Certified | - |
| EPEAT Compliant | EPEAT Gold |
| EPEAT Climate+ | Yes |
| ENERGY STAR Certified | Yes |
| Product Recycled Content | Post-consumer recycled plastic, ocean-bound plastics, recycled metal |
