Motherboard - micro ATX - LGA4710 Socket - USB 3.2 Gen 1 - 2 x 25 Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

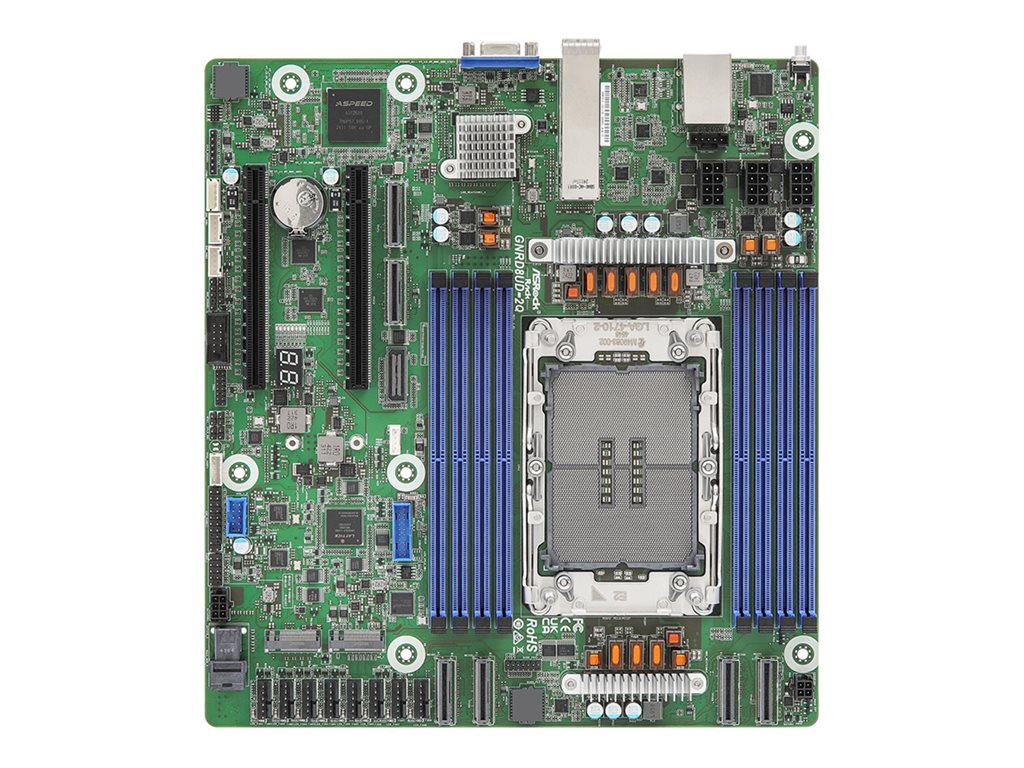

| Product Description | ASRock Rack GNRD8UD-2Q - motherboard - micro ATX - LGA4710 Socket |
| Product Type | Motherboard - micro ATX |
| Processor Socket | 1 x LGA4710 Socket |
| Compatible Processors | Xeon |
| Max RAM Size | 128 GB |
| RAM Supported | 8 DIMM slots - DDR5 registered |
| Storage Ports | 1 x Mini-SAS HD, 4 x SATA-600, 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.2 Gen 1 + (2 x USB 3.1 Gen 1 + 2 x USB 2.0 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | 2 x 25 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Processor Socket | LGA4710 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Xeon |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin (1.1 V) ¦ 2 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 1 x mini-SAS HD ¦ PCIe 5.0 -connectors: 1 x M.2 |
| Interfaces | 1 x VGA ¦ 2 x LAN (25Gigabit Ethernet) ¦ 1 x IPMI ¦ 2 x USB 3.2 Gen 1 |
| Internal Interfaces | 1 x serial - header ¦ 1 x speaker - header ¦ 1 x SPI - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Width | 9.6 in |
| Depth | 10.5 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | SMBIOS 3.4 support, SPI BIOS flashing, ACPI 6.4 support, UEFI BIOS |
| Hardware Monitoring | Fan control |
| Hardware Features | ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Intel E810-XXVAM2 / Realtek RTL8211F |
| Network Interfaces | 2 x 25 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 3200 MHz |
| Registered or Buffered | Registered |
