3.0 - motherboard - mini ITX - LGA1200 Socket - W480E Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2, USB 3.2 Gen 2 - 2 x Gigabit LAN - onboard graphics (CPU required) - HD Audio
| Main Specifications | |
|---|---|

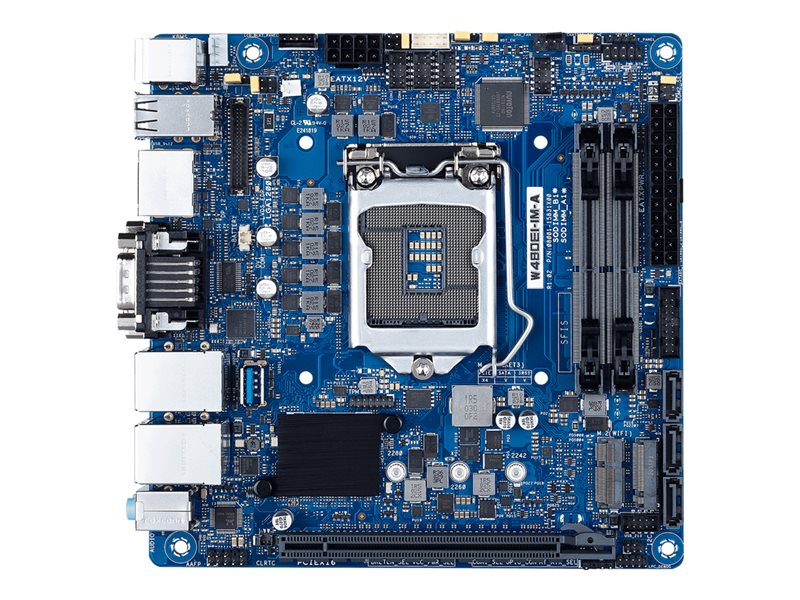

| Product Description | ASUS W480EI-IM-A - 3.0 - motherboard - mini ITX - LGA1200 Socket - W480E |
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel W480E |
| Processor Socket | 1 x LGA1200 Socket |
| Compatible Processors | (supports 10th Generation Intel Xeon / Core / Pentium Gold / Celeron) |
| Max RAM Size | 64 GB |
| RAM Supported | 2 SO-DIMM slots - DDR4, ECC |
| Storage Ports | 3 x SATA-600, 1 x M.2 |
| USB / FireWire Ports | 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Audio | HD Audio |
| LAN | 2 x Gigabit Ethernet |
| General | |
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel W480E |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 10th Generation Intel Xeon / Core / Pentium Gold / Celeron) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x SO-DIMM 260-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 3 x 7pin SATA ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 2 x DisplayPort ¦ 1 x DVI-D ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x RS-232/422/485 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse |
| Internal Interfaces | 3 x RS-232 - header ¦ 1 x RS-232/422/485 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x LVDS / Embedded DisplayPort (eDP) - header ¦ 1 x audio - header ¦ 1 x SPDIF - header ¦ 1 x speaker - header ¦ 1 x LPC - header ¦ 1 x GPIO 8-bit - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | 2 x M.2 screw package, IO shield |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4, FCC |
| Width | 6.7 in |
| Depth | 6.7 in |
| Audio | |
| Type | HD Audio |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Features | |
| Hardware Features | WatchDog Timer |
| LAN | |
| Network Controller | Intel I211AT / Intel I219LM |
| Network Interfaces | 2 x Gigabit Ethernet |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2933 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Features | Dual channel memory architecture |
