Wireless access point - DECT - DC power
| Main Specifications | |
|---|---|

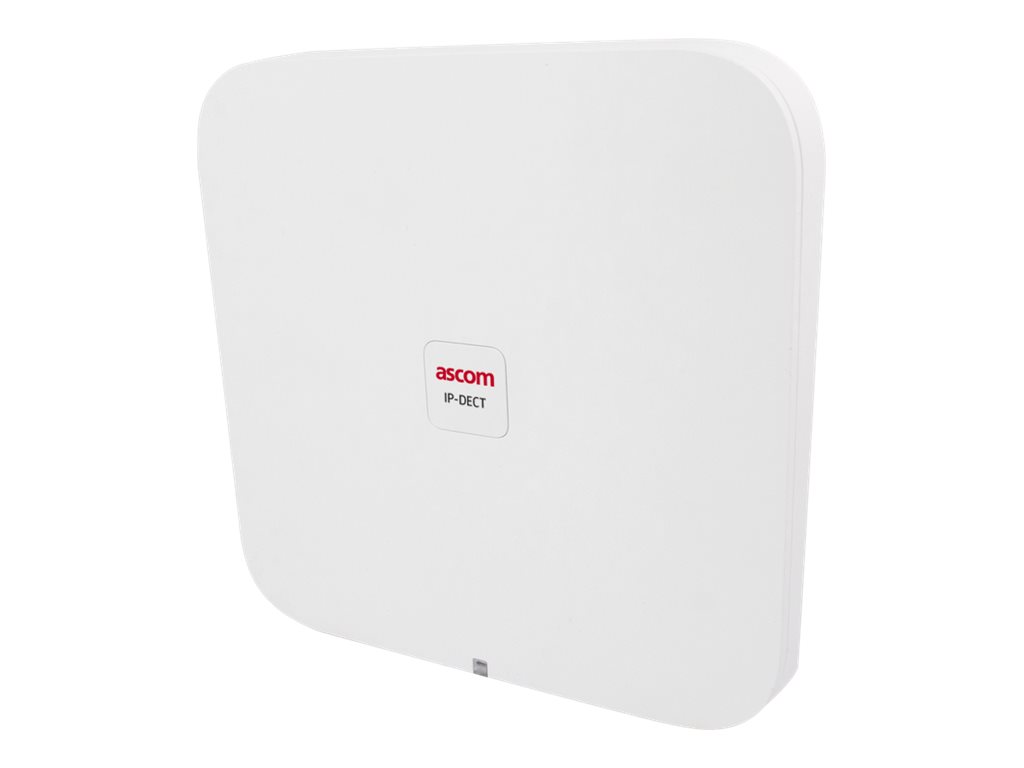

| Product Description | Ascom IP-DECT IPBS3 with internal antenna - wireless access point |
| Device Type | Wireless access point |
| Form Factor | External |
| Data Link Protocol | DECT |
| Capacity | Maximum concurrent channels: 4 |
| VoIP Protocols | H.323 v4, H.245, H.225, H.235, H.450.1, H.450.2, H.450.3, H.450.4, H.450.6, H.450.7, H.450.8, H.450.9 |
| Telephony Interfaces | DECT |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | DC 21 - 56 V |
| Dimensions (WxDxH) | 6.7 in x 1.5 in x 6.7 in |
| Weight | 14.11 oz |
| General | |
| Device Type | Wireless access point |
| Width | 6.7 in |
| Depth | 1.5 in |
| Height | 6.7 in |
| Weight | 14.11 oz |
| Enclosure Color | White |
| Expansion / Connectivity | |
| Interfaces | 2 x 100Base-TX (PoE) |
| Miscellaneous | |
| Compliant Standards | AS/NZS 62368-1, CAN/CSA-C22.2 No. 62368-1, EN 61000-4-2, EN 61000-4-3, FCC Part 15 B, FCC Part 15 D, UL 62368-1 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | DECT |
| Capacity | Maximum concurrent channels: 4 |
| Compliant Standards | IEEE 802.3af |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Voltage Required | DC 21 - 56 V |
| Power Consumption Operational | 4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 15 - 90% (non-condensing) |
| IP Telephony | |
| VoIP Protocols | H.323 v4, H.245, H.225, H.235, H.450.1, H.450.2, H.450.3, H.450.4, H.450.6, H.450.7, H.450.8, H.450.9 |
| Voice Codecs | G.711A/µ, G.722.2, G.729a, G.729ab |
| Telephony Interfaces | DECT |
