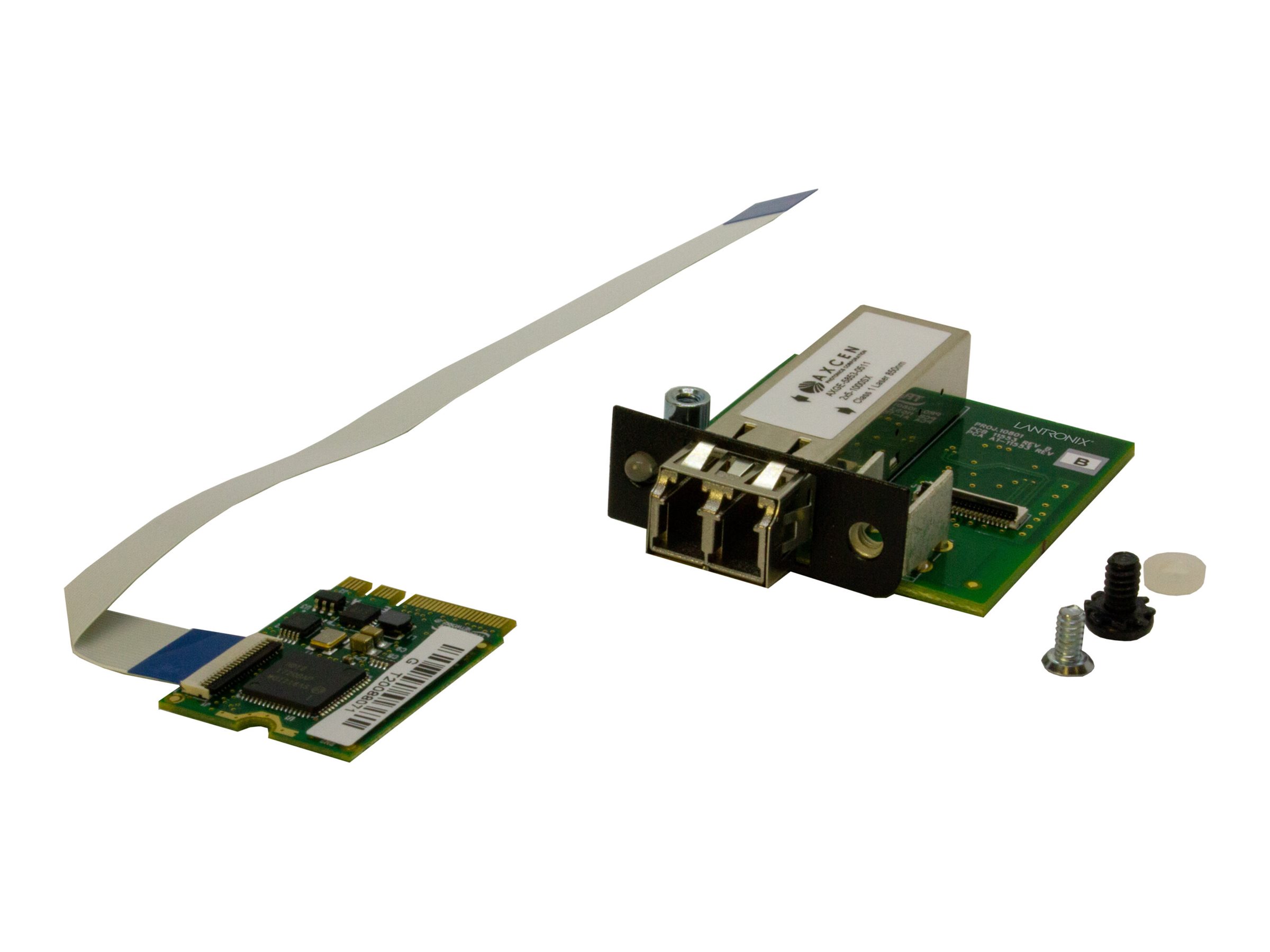

Network adapter - PCIe Mini Card (M.2) - 1000Base-X x 1 - 850 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix NM2-GXE-01 Series - network adapter - PCIe Mini Card (M.2) - 1000Base-X x 1 - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express Mini Card (M.2) |
| Ports | 1000Base-X x 1 |
| Dimensions (WxDxH) | 1.7 in x 2 in x 0.5 in |
| Weight | 1.76 oz |
| Cabling Type | Ethernet 1000Base-SX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Capacity | Jumbo frame size: 9014 bytes |
| Compliant Standards | IEEE 802.3-2012 |
| Power | 3.3 V |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10, Linux |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express Mini Card (M.2) |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-SX - LC multi-mode - female - x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, EN 55032, FCC Part 15 B, EN55024 |
| TAA Compliant | Yes |
| Networking | |
| Ports | 1000Base-X x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-SX |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Capacity | Jumbo frame size: 9014 bytes |
| Optical Wave Length | 850 nm |
| Max Range Open Space | 1800 ft |
| Status Indicators | Link/activity |
| Features | Full duplex mode, flow control, WOL, SLB, TSO, MSI, MSI-X, LACP support, IPv6 support, UEFI support, PXE support, UEFI PXE Boot, 50/125µm core size, 62.5/125µm core size |
| Compliant Standards | IEEE 802.3-2012 |
| Power | |
| Voltage Required | 3.3 V |
| Power Consumption Operational | 0.8 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 2 in |
| Height | 0.5 in |
| Weight | 1.76 oz |
