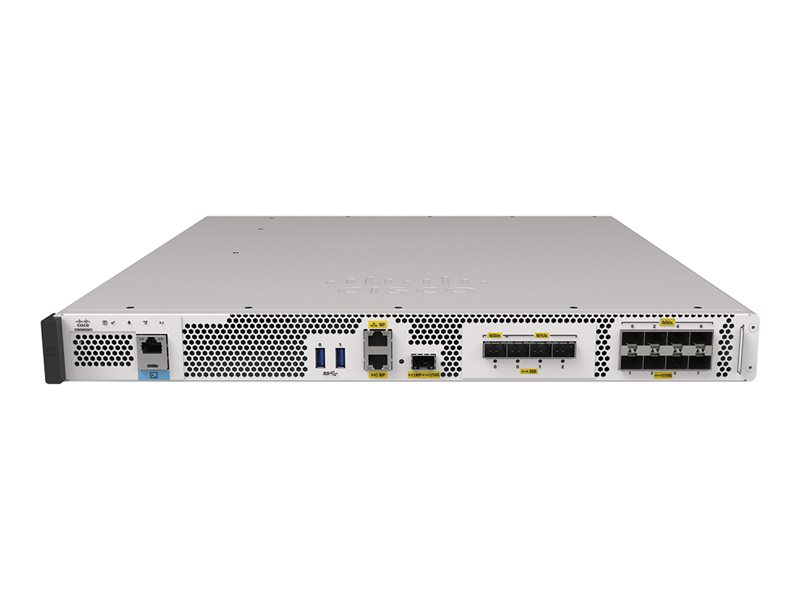

Network management device - 10GbE, 25GbE - Wi-Fi 6 - front to back airflow - 1U - K-12 education - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco Catalyst CW9800H1 - network management device - Wi-Fi 6 |
| Device Type | Network management device |
| Form Factor | Front to back airflow rack-mountable - 1U |
| Hard Drive | 240 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | Throughput: 100 Gbps |
| Capacity | Maximum number of access points: 6000 ¦ Maximum number of clients: 64000 ¦ Wireless LANs: 4096 ¦ VLANs supported: 4096 ¦ Site tags: 6000 ¦ Flex APs per site: 300 ¦ Policy tags: 6000 ¦ RF tags: 6000 ¦ RF profiles: 12000 ¦ Policy profiles: 1000 ¦ Flex profiles: 6000 |
| OS Required | Cisco IOS XE 17.14.1 or later |
| Power Redundancy | Yes |
| Pricing Type | K-12 education |
| Dimensions (WxDxH) | 17.3 in x 18.4 in x 1.7 in |
| Weight | 20.5 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Built-in Devices | 4 x fans |
| Width | 17.3 in |
| Depth | 18.4 in |
| Height | 1.7 in |
| Weight | 20.5 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x console - RJ-45 ¦ 3 x USB 3.0 - Type A ¦ 1 x management - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x redundancy (10Gb Ethernet) - SFP (mini-GBIC) ¦ 8 x 1/10GBase-X (uplink) - SFP+ ¦ 4 x 25GBase-X (uplink) - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime - response time: next business day ¦ Technical support - 3 years |
| Miscellaneous | |
| Compliant Standards | AS/NZS 60950-1, AS/NZS CISPR 22, CAN/CSA-C22.2 No. 60950-1, CISPR 22, FCC CFR47 Part 15, IEC/EN 60950-1, UL/CSA60950-1, ICES-003, VCCI, KN32, CNS 13438, EN 61000-3-2, EN 61000-3-3, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, KN35, EN 300 386, EN55022, EN 55024: CISPR 24:2010, EN50082-1, EN 61000-6-1, EN 55032, WEEE |
| Pricing Type | K-12 education |
| Networking | |
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Network / Transport Protocol | UDP/IP, TCP/IP, IPv6, ARP, BOOTP, DHCP, IPSec |
| Routing Protocol | CIDR |
| Remote Management Protocol | ICMP, DHCP, SNMP 1, SNMP 2c, SNMP 3, Telnet, MIB, SNMP, TFTP, HTTP, HTTPS, RMON, Syslog, NETCONF, SSH, YANG |
| Performance | Throughput: 100 Gbps |
| Capacity | Maximum number of access points: 6000 ¦ Maximum number of clients: 64000 ¦ Wireless LANs: 4096 ¦ VLANs supported: 4096 ¦ Site tags: 6000 ¦ Flex APs per site: 300 ¦ Policy tags: 6000 ¦ RF tags: 6000 ¦ RF profiles: 12000 ¦ Policy profiles: 1000 ¦ Flex profiles: 6000 |
| Status Indicators | Power, system, alarm, HA, SSD activity, link/activity, USB |
| Features | High Availability, Encrypted Traffic Analytics (ETA), SD-Access support, secure boot, runtime defenses, image signing, hardware cryptographic offload support, In-Service Software Upgrade (ISSU), smart license, Stateful switchover (SSO), Cisco Advanced Wireless Intrusion Prevention System (aWIPS), Software Maintenance Upgrade (SMU), Flexible NetFlow (FNF), Quality of Service (QoS), Wi-Fi Multimedia (WMM) support, VLAN Tagging, Link Aggregation, CAPWAP support, MACsec support, Point-to-Point Protocol (PPP), SNTP support |
| Encryption Algorithm | WPA3, MD5, ESP, 3DES, HMAC, TLS 1.0, TLS 1.2, TLS 1.3, SHA, ISAKMP, IKE, PKI, CRL, DTLS, AES, CBC, CCM, CCMP, SSL, TLS, EAP-TLS |
| Authentication Method | Extensible Authentication Protocol (EAP), RADIUS, TACACS |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11n, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1AX, IEEE 802.11, IEEE 802.11i, IEEE 802.1ae, IEEE 802.1x |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Software / System Requirements | |
| OS Provided | Cisco IOS XE |
| OS Required | Cisco IOS XE 17.14.1 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | SSD 240 GB |
