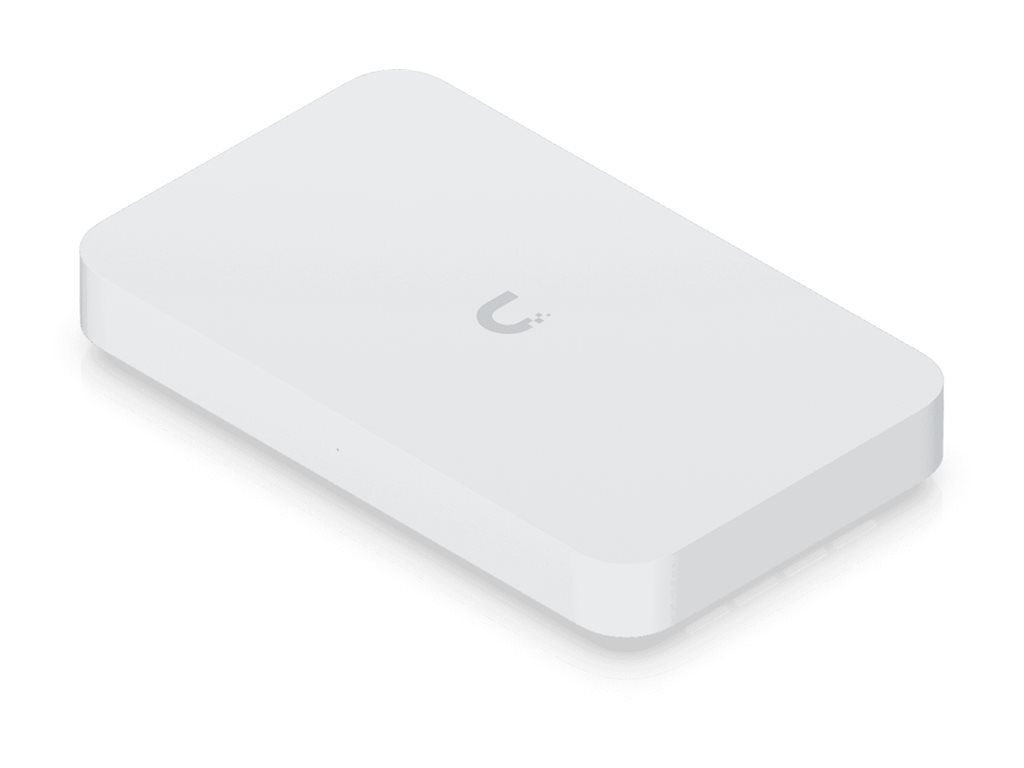

Gateway - 2.5GbE, 10GbE - cloud-managed - desktop
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi Gateway Fiber - gateway - cloud-managed |
| Device Type | Gateway |
| Form Factor | Desktop |
| Processor | ARM 2.2 GHz |
| Flash Memory | 2 GB |
| Data Link Protocol | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | IDS/IPS throughput: 5 Gbps |
| Capacity | IPS signatures: 55000 ¦ MAC table size: 4000 |
| Included Accessories | Feet set, power cable |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 8.4 in x 5 in x 1.2 in |
| Weight | 21.34 oz |
| General | |
| Device Type | Gateway |
| Built-in Devices | 4-port switch |
| Width | 8.4 in |
| Depth | 5 in |
| Height | 1.2 in |
| Weight | 21.34 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 10 Gigabit Ethernet - RJ-45 (WAN) ¦ 1 x 10 Gigabit Ethernet - SFP+ (WAN) ¦ 1 x 10 Gigabit Ethernet - SFP+ ¦ 4 x 2.5Gb Ethernet - RJ-45 - 30 W |
| Miscellaneous | |
| Included Accessories | Feet set, power cable |
| Compliant Standards | IC, FCC |
| Networking | |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | IPSec, OpenVPN, WireGuard, L2TP |
| Routing Protocol | OSPF |
| Cloud-Managed | Yes |
| Performance | IDS/IPS throughput: 5 Gbps |
| Capacity | IPS signatures: 55000 ¦ MAC table size: 4000 |
| Status Indicators | Ethernet link/activity, SFP+, system |
| Features | Full stateful firewall, application-aware layer 7 firewall, DPI & traffic identification, zone-based firewall advanced filtering, content filtering, Intrusion Prevention System (IPS), Intrusion Detection System (IDS), ad blocking, SD-WAN support, VPN support, VPN Server, VPN client, multi-WAN load balancing, Advanced QoS, mDNS, NAT support, DNAT support, SNAT support, RADIUS Server, failover backup, 30W PoE+ power budget, Quad-core CPU, polycarbonate enclosure, Bluetooth management, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), reset button |
| Authentication Method | RADSEC, RADIUS |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | ARM 2.2 GHz |
| Flash Memory | 2 GB |
