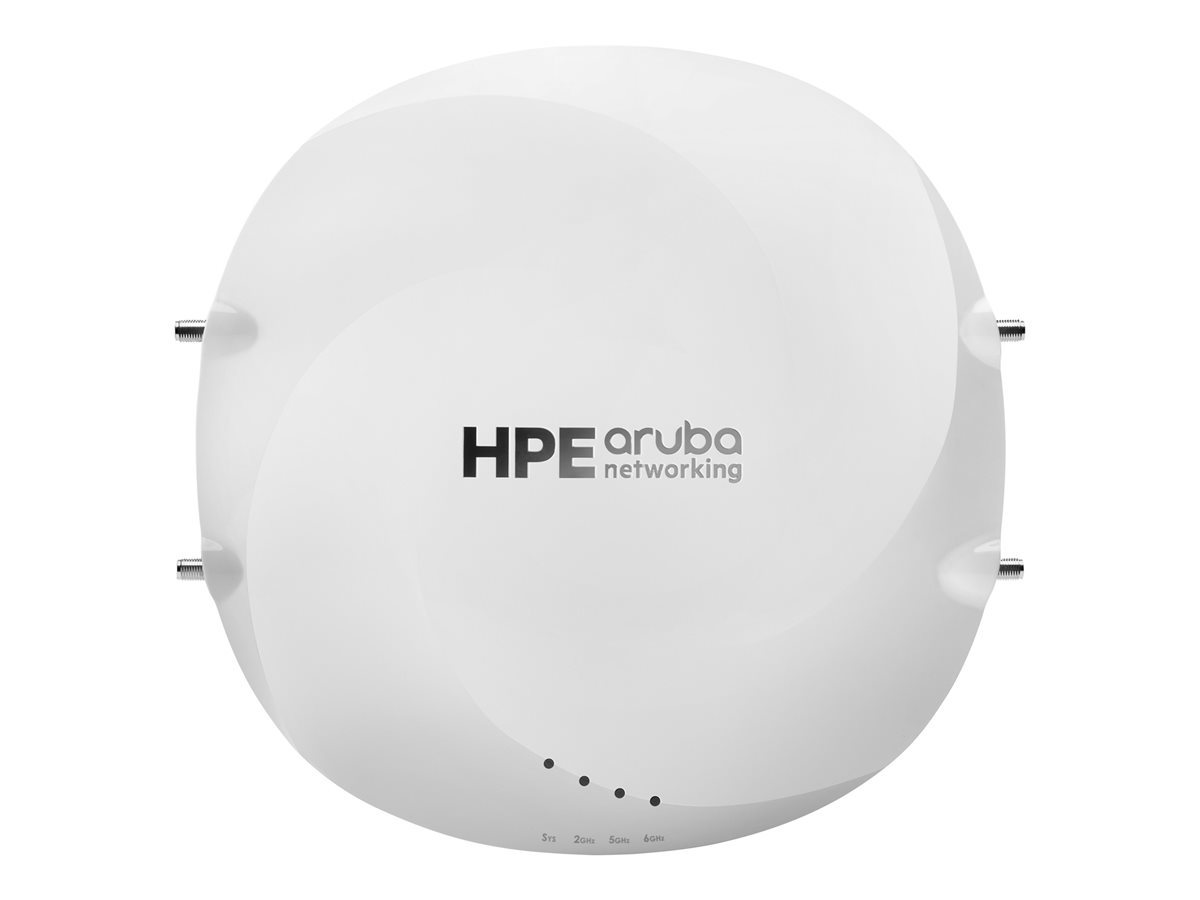

Campus - wireless access point - Wi-Fi 6 - Wi-Fi 6E, Bluetooth, ZigBee - 2.4 GHz, 5 GHz, 6 GHz - remarketed - BTO - wall / ceiling mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking AP-634 (RW) - Campus - wireless access point - Wi-Fi 6E, Bluetooth, ZigBee |
| Device Type | Wireless access point |
| Form Factor | Wall / ceiling mountable - indoor |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0, ZigBee |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 287 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (6 GHz): 2.4 Gbps ¦ Aggregate data rate: 3.9 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 512 ¦ OFDMA units: 8 ¦ BSSIDs per radio: 16 |
| OS Required | ArubaOS 10.6.0.0, InstantOS 8.11.2.0 |
| Power Over Ethernet (PoE) Supported | PoE |
| Pricing Type | BTO - remarketed |
| Dimensions (WxDxH) | 8.7 in x 8.7 in x 2 in |
| Weight | 2.87 lbs |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 8.7 in |
| Depth | 8.7 in |
| Height | 2 in |
| Weight | 2.87 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 100/1000/2500Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - micro-USB ¦ 4 x antenna - RP-SMA |
| Miscellaneous | |
| MTBF | 520,000 hours |
| Compliant Standards | FCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, UL 60950, IEC 60950, EN 60950, EN 62368-1, IEC 62368-1, EN 60601-1-1, EN 60601-1-2, ETS 300 019 Class 3.2, ETS 300 019 Class 1.2 |
| Pricing Type | BTO - remarketed |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.9 Gbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, 4096 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.0, ZigBee |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Performance | Maximum data rate (2.4 GHz): 287 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (6 GHz): 2.4 Gbps ¦ Aggregate data rate: 3.9 Gbps |
| Capacity | Wireless clients per Wi-Fi radio: 512 ¦ OFDMA units: 8 ¦ BSSIDs per radio: 16 |
| Status Indicators | System, radio |
| Features | Transmit Beamforming, Passpoint Release 2, Dynamic Frequency Selection (DFS), Maximum Ratio Combining (MRC), Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), Space Time Blocking Code (STBC), Low Density Parity Check (LDPC), Trusted Platform Module (TPM), Target Wait Time (TWT), packet aggregation A-MPDU, packet aggregation A-MSDU, High-Throughput (HT) support, Very High Throughput (VHT) support, High Efficiency (HE) support, Advanced Cellular Coexistence (ACC), 2x2:2 MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), security slot (Kensington security lock compatible) |
| Encryption Algorithm | WPA, WPA2, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE) |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | ArubaOS 10.6.0.0, InstantOS 8.11.2.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% RH |
| Antenna | |
| Antenna | External |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
